Description

Price

1

Crankshaft Ass'y | Includes 1 - 9. Formula Deluxe 700.

420888285

Unavailable

2

Ball Bearing Sealed, 6207

420832673

$101.49

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

ADJUSTMENT WASHER - Call your local BRP dealership

420427502

Unavailable

5

Oil Seal

420931795

$17.63

6

Ball Bearing 6208 | With drive pin

420832600

$79.49

7

Oil Seal

420931910

$37.99

8

Washer

420926190

$11.63

9

Ball Bearing 6208 | With drive pin

420832600

$79.49

10

Oil Seal

420931280

$51.49

11

Lock Washer, 22 mm

420945759

$1.90

12

Hex. Nut, M22 X 1.5

420842239

$17.53

13

Woodruff Key

420246015

$3.17

14

Needle Bearing

420832445

$27.49

15

Piston Ass'y (1 Ring 77.88 mm) | Includes 14 - 15. Formula Deluxe 700.

420888296

Unavailable

16

SEMI-TRAPEZ RING - Call your local BRP dealership | Formula Deluxe 700.

420815225

Unavailable

17

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

18

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

420845102

Unavailable

19

Ball Bearing 6207 | With drive pin

420832575

$52.99

20

Oil Seal

420931455

$35.99

21

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

22

CRANKSHAFT, PTO SIDE - Call your local BRP dealership

420818708

Unavailable

23

CRANKSHAFT (MAG) - Call your local BRP dealership | Grand Touring 700.

420818738

Unavailable

24

ROD REPAIR KIT (MAG) - Call your local BRP dealership | Grand Touring 700.

420888288

Unavailable

ROD REPAIR KIT (PTO) - Call your local BRP dealership | Grand Touring 700.

420888289

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

27

Sealant Loctite 648

219703000

$45.99

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

29

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

30

Petamo Grease, GHY133N, 400 g

420899271

$67.99

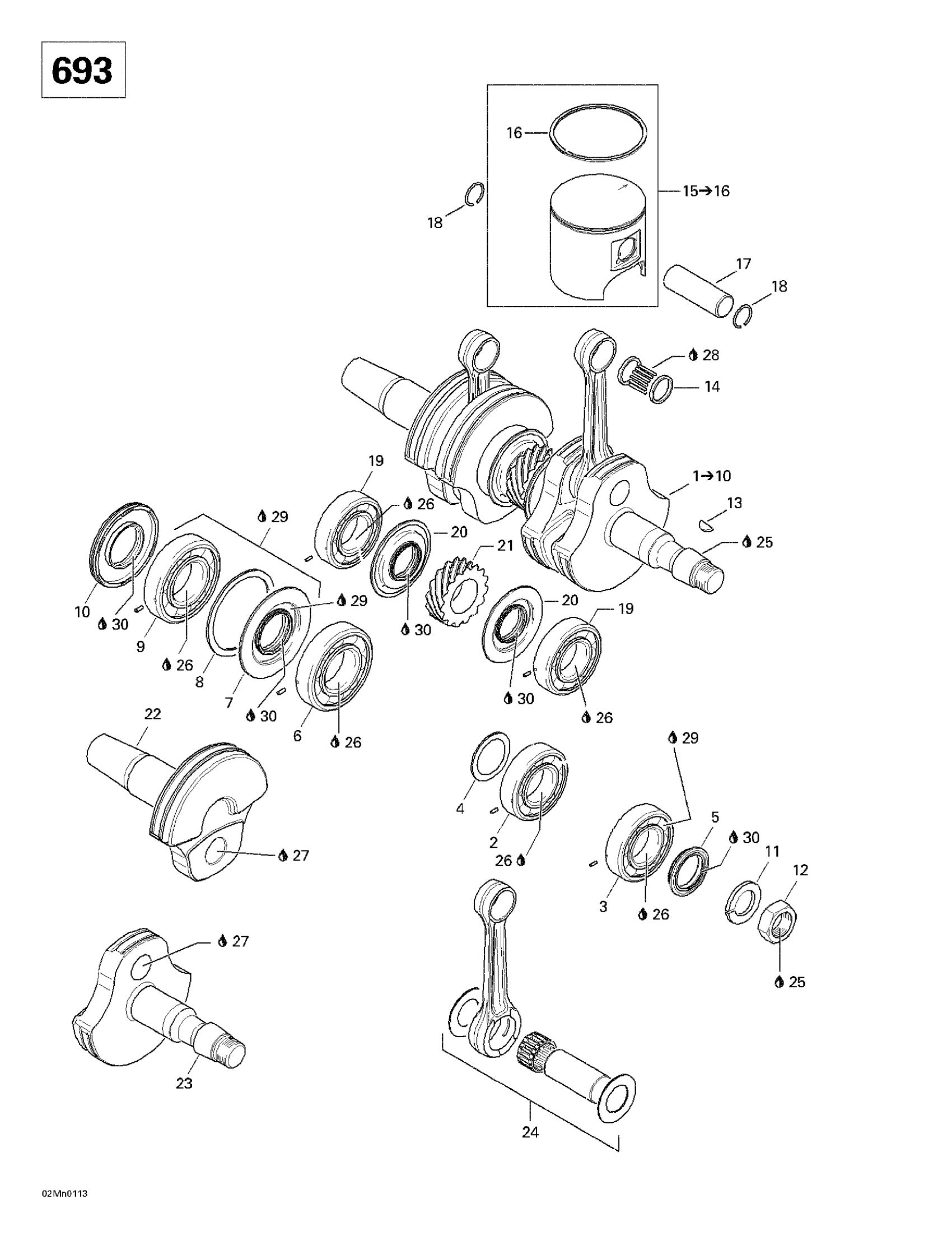

Ski-Doo Grand Touring 500/600/700, 2001 01- Crankshaft And Pistons (693) Diagram

Crankshaft Ass'y | Includes 1 - 9. Formula Deluxe 700.

Ball Bearing Sealed, 6207

Ball Bearing 6207 | With drive pin

ADJUSTMENT WASHER - Call your local BRP dealership

Oil Seal

Ball Bearing 6208 | With drive pin

Oil Seal

Washer

Ball Bearing 6208 | With drive pin

Oil Seal

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Woodruff Key

Needle Bearing

Piston Ass'y (1 Ring 77.88 mm) | Includes 14 - 15. Formula Deluxe 700.

SEMI-TRAPEZ RING - Call your local BRP dealership | Formula Deluxe 700.

GUDGEON PIN - Call your local BRP dealership

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

Ball Bearing 6207 | With drive pin

Oil Seal

CENTRAL GEAR - Call your local BRP dealership

CRANKSHAFT, PTO SIDE - Call your local BRP dealership

CRANKSHAFT (MAG) - Call your local BRP dealership | Grand Touring 700.

ROD REPAIR KIT (MAG) - Call your local BRP dealership | Grand Touring 700.

ROD REPAIR KIT (PTO) - Call your local BRP dealership | Grand Touring 700.

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

Sealant Loctite 648

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Isoflex Grease, TOPAS NB52, 50 g

Petamo Grease, GHY133N, 400 g
