Description

Price

1

Hose 8 mm

509000093

Unavailable

2

Valve 5/16” | Grand Touring 500.

512059324

$44.99

3

Spring Clamp

414655700

$0.72

4

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

5

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

6

Hose | Grand Touring 500.

404161956

$19.49

7

Clip | Grand Touring 500.

404161957

$17.08

8

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

$91.99

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

$91.99

9

Engine Inlet Hose

509000001

Unavailable

10

ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000046

Unavailable

11

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

12

Radiator Outlet Hose | Grand Touring 500.

509000004

Unavailable

13

Deviation Hose | Grand Touring 500.

509000112

Unavailable

14

Front Radiator | Grand Touring 500.

517297100

Unavailable

15

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

16

Oetiker Gear Clamp 36.1MM

509000045

$8.29

17

Pressure Cap

509000187

$29.49

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

19

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

20

Pop Rivet 3/16"

390402200

$0.35

21

Neoprene Seal (1PAC=3M)

219704364

$27.49

22

Tubing 25 MM 1000MM Long

219704402

$15.99

23

Tie Wrap 368 mm

293750008

$1.04

24

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

25

Connector Plug | Grand Touring 500.

515175297

Unavailable

26

Tie Wrap 142 mm

293750002

$1.25

27

Female Terminal

409010300

$4.39

28

Rear Radiator | Includes 28 - 29.

517296310

Unavailable

29

Radiator Protector | Grand Touring 500.

518321656

Unavailable

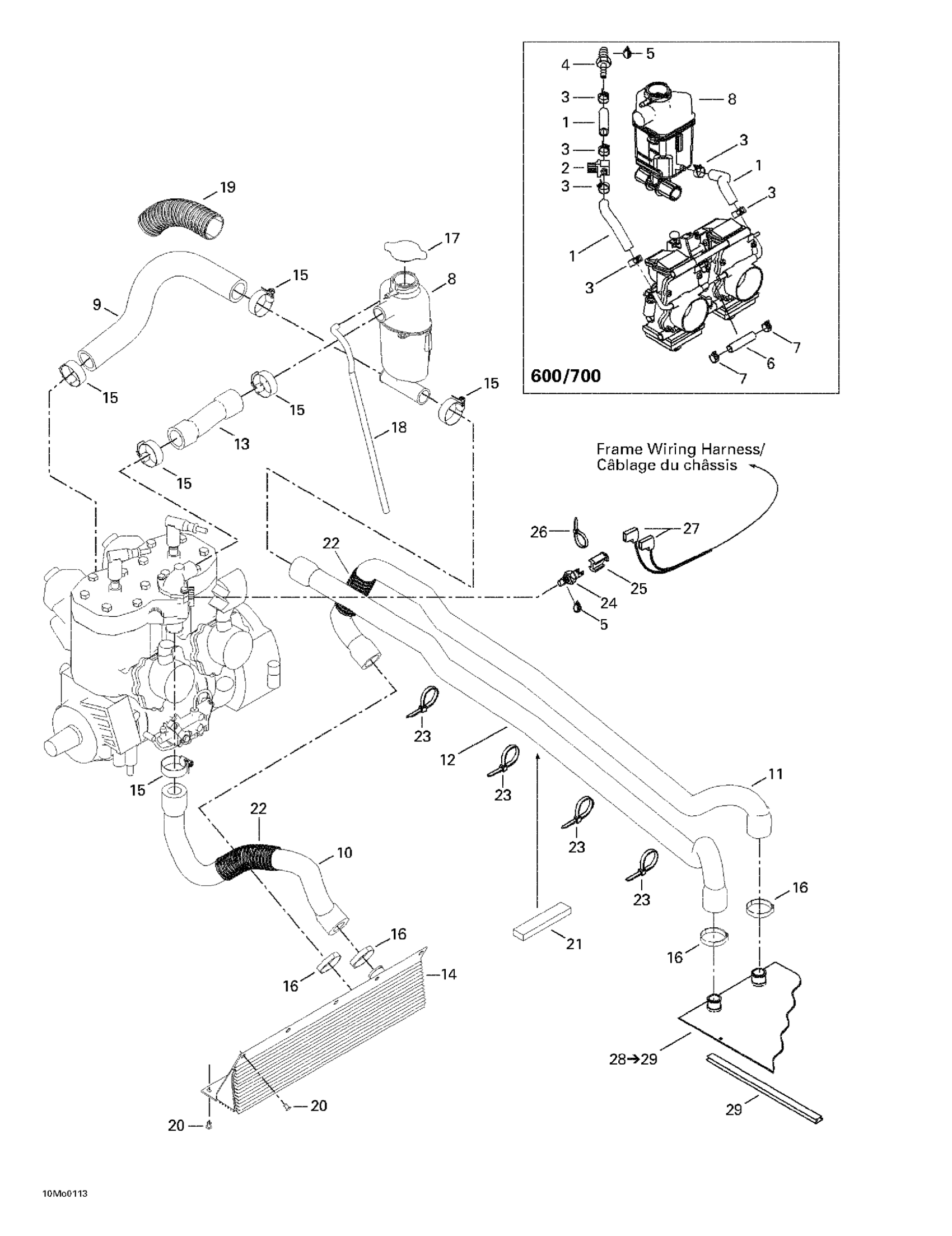

Ski-Doo Grand Touring 500/600/700, 2001 01- Cooling System Diagram

Hose 8 mm

Valve 5/16” | Grand Touring 500.

Spring Clamp

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

Was 293800018 Loctite 592, 50 ml | Package T

Hose | Grand Touring 500.

Clip | Grand Touring 500.

Tank Coolant | Grand Touring 500. This part replaces 509000133.

Tank Coolant | Grand Touring 500. This part replaces 509000133.

Engine Inlet Hose

ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

Radiator Outlet Hose | Grand Touring 500.

Deviation Hose | Grand Touring 500.

Front Radiator | Grand Touring 500.

TRIDON GEAR CLAMP - Call your local BRP dealership

Oetiker Gear Clamp 36.1MM

Pressure Cap

Was 415110000 Polyurethane Hose 5.2 mm

Was 415084700 Protective Shield | Grand Touring 500.

Pop Rivet 3/16"

Neoprene Seal (1PAC=3M)

Tubing 25 MM 1000MM Long

Tie Wrap 368 mm

Temperature Sensor | Grand Touring 500.

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

Connector Plug | Grand Touring 500.

Tie Wrap 142 mm

Female Terminal

Rear Radiator | Includes 28 - 29.

Radiator Protector | Grand Touring 500.
