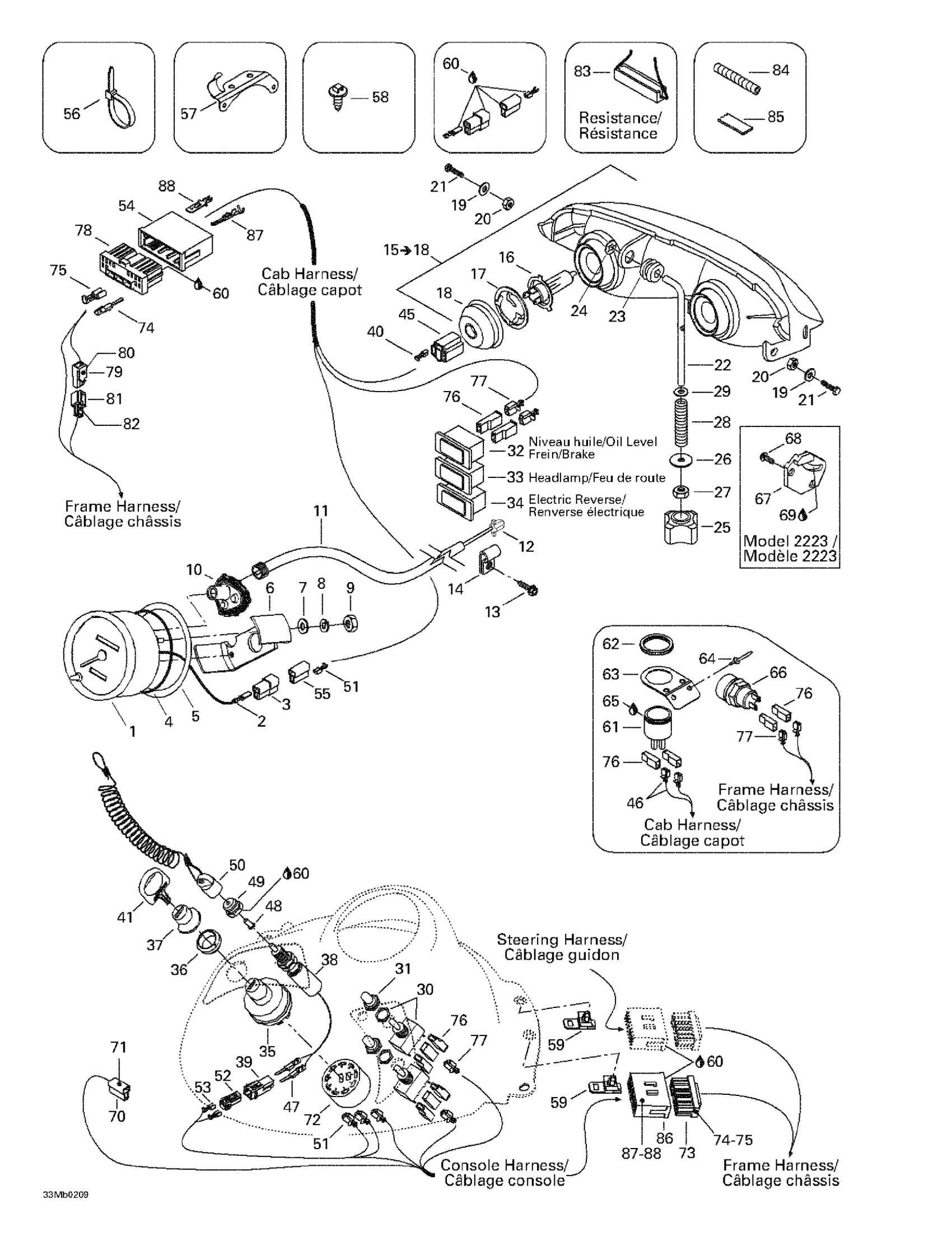

Ski-Doo Grand Touring 380 F/500 F, 2002 10- Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

O-Ring

414807100

Unavailable

5

Washer

517258500

Unavailable

6

Case Holder

414806500

Unavailable

7

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

8

Lock Washer

414806700

Unavailable

9

Nut

414806900

Unavailable

10

Drive Angle

515175400

Unavailable

11

Speedometer Cable

415101500

Unavailable

12

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Open Clamp

414176000

$1.99

15

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

16

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

17

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

18

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

19

Flat Washer M5

234051410

$0.53

20

NUT M5 - Call your local BRP dealership

250100018

$6.99

21

Hex. Screw M5 X 35

207053544

$1.15

22

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

23

Grommet - Call your local BRP dealership

415100800

Unavailable

24

Push Nut

732610072

$2.19

25

Handle - Call your local BRP dealership

515175548

Unavailable

26

Washer

224060251

$0.58

27

Elastic Stop Nut M6

232561414

$0.55

28

SPRING - Call your local BRP dealership

415100600

Unavailable

29

Flat Washer 6 mm

234061410

$1.36

30

Switch (Heating Grip) | FREERIDE

410107300

$35.99

31

Switch Cover

515175281

$15.99

32

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

33

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

34

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

35

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

36

FACE NUT - Call your local BRP dealership

410112100

Unavailable

37

Switch Boot

570013700

$11.49

38

Brake Switch

515175653

$19.49

39

Male Terminal Housing, 2 Circuits

515175654

$9.12

40

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

41

Blank Key

415129350

$26.49

42

Frame Harness (Not Shown)

515175622

Unavailable

43

Console Harness, Not Shown

515175623

Unavailable

44

Hood Harness (Not Shown)

515175636

Unavailable

45

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

46

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

47

Male Terminal

515175232

$1.58

48

Plunger Cap

570151100

$9.85

49

Switch Nut

515145900

$12.12

50

Cap Ass'y

515178283

$38.99

51

Female Terminal

561503100

$2.41

52

Female Housing, 2 Circuits

515175658

$16.18

53

Female Terminal

515175231

$4.39

54

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

55

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

56

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

57

Cable Support

515175254

Unavailable

58

Mount Dart

293730040

$1.04

59

Housing Support

515175283

$9.19

60

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

61

HORN - Call your local BRP dealership

515176035

Unavailable

62

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

63

PLATE - Call your local BRP dealership

515175688

Unavailable

64

Pop Rivet 3/16"

390402200

$0.35

65

Silicone Sealant 51388, 300 ml

296000309

$36.99

66

Push Button

415130372

$122.49

67

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

68

Headlamp Screw

732601315

Unavailable

69

Grease Tube Lmz, 400 G

413707500

Unavailable

70

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

71

Female Terminal

561503100

$2.41

72

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

73

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

74

Female Terminal

515175231

$4.39

75

Female Terminal

515175282

$7.86

76

Female Terminal Housing, 1 Circuit

409010400

$7.62

77

Female Terminal

409010100

$5.61

78

Female Terminal Housing, 13 Circuits

515175350

$14.24

79

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

80

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

81

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

82

Female Terminal

515175282

$7.86

83

Resistance

515175241

$17.99

84

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Tubing 10 MM 1000MM Long

219704407

$2.79

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing 16 Mm 1000Mm Long

219704408

$7.49

85

Tape

293740005

Unavailable

86

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

87

Male Terminal

515175232

$1.58

88

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable
