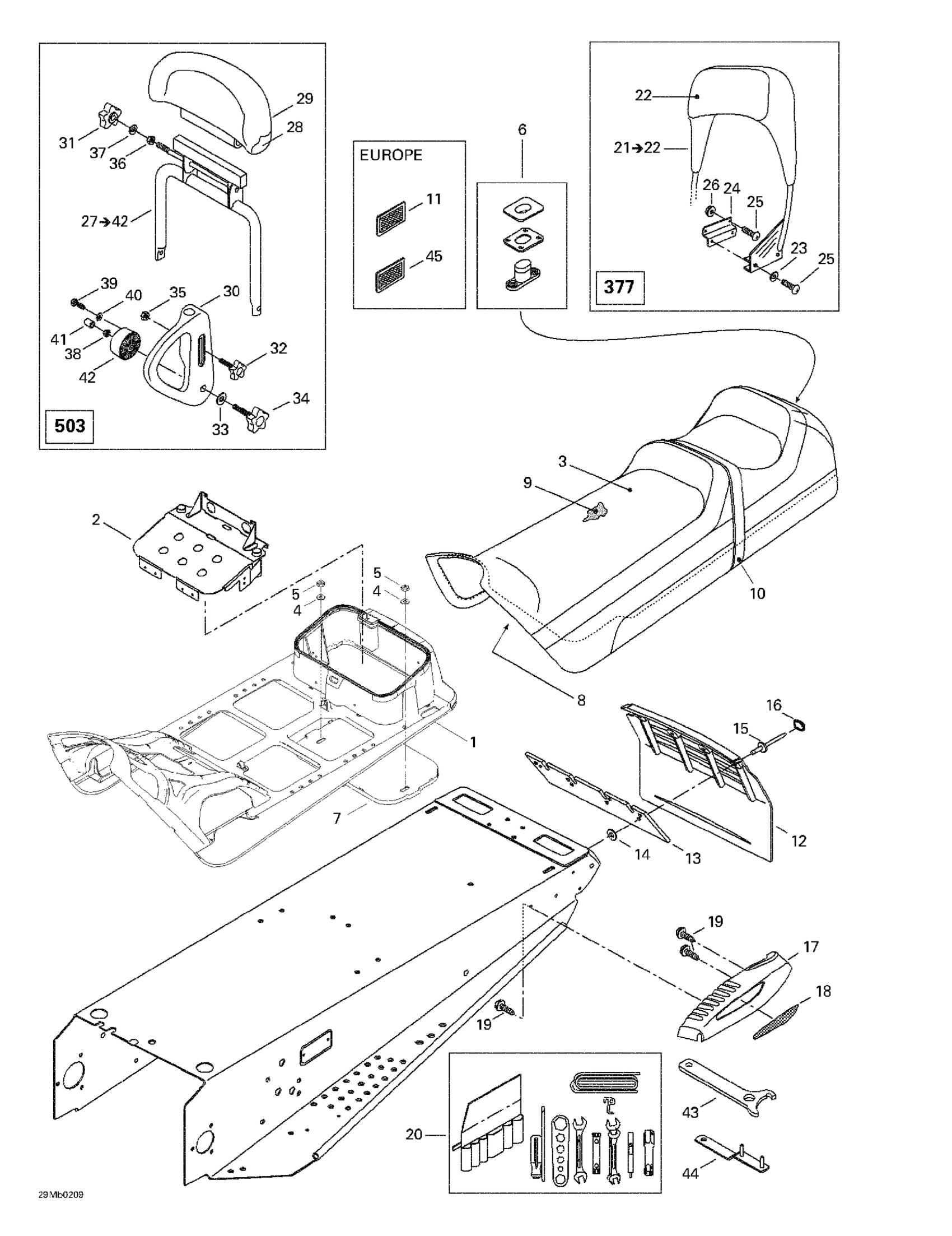

Ski-Doo Grand Touring 380 F/500 F, 2002 09- Seat And Accessories Diagram

#

Description
Price

1

Sub-Seat

510003980

Unavailable

2

Seat Painted Support

510003976

Unavailable

3

Seat Cover

510003951

Unavailable

4

Flat Washer 8 mm

234082410

$1.47

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

7

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

8

SEAT FOAM - Call your local BRP dealership

510003944

Unavailable

9

Seat Foam, Top

510003981

Unavailable

10

Seat Belt

510004038

Unavailable

11

Amber, Reflector

520000271

$19.99

12

SNOW GUARD - Call your local BRP dealership

520000229

Unavailable

Snow Guard, Europe | SE GT Europe

520000228

Unavailable

13

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

14

Flat Washer

517225900

$0.18

15

Pop Rivet 3/16”

293150087

$0.93

16

Cap

415073300

Unavailable

17

RH Moulding

861780300

Unavailable

LH Moulding

861780400

Unavailable

18

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

19

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

20

Tool Kit | Includes 12 to 13

529035596

$27.99

21

Seat Backrest Ass'y | Includes 21 - 22. 380 F.

415104700

Unavailable

22

Backrest Cover | 380 F.

415104703

Unavailable

23

Lock Washer 8 mm, Stainless

234181601

$0.55

24

Z-Plate | GT 380F

510003609

Unavailable

25

Hex. Screw M8 X 20

236282084

$1.48

26

Hex. Flange Elastic Nut M8

233281414

$1.47

27

Seat Backrest Ass'y | Includes 27 - 42. 500 F.

510003717

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Cover | 500 F.

510003780

Unavailable

30

Arm RH | GT 550F

510003542

Unavailable

Arm LH | GT 550F

510003607

Unavailable

31

Fem. Handle M8 x 1.25 mm | GT 550F

510003532

Unavailable

32

Handle M8 X 35 | Model-T3

510003533

$44.49

33

WASHER - Call your local BRP dealership | GT 550F

732900050

Unavailable

34

Male Handle M12 x 50 mm | GT 550F

510003534

Unavailable

35

Hex. Nut | GT 550F

510003576

Unavailable

36

Hex. Nut | GT 550F

510003578

Unavailable

37

Lock Washer | GT 550F

510003584

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Hex. Screw M8 X 25

207182544

$0.90

40

Lock Washer 8 mm | 550 F.

243181601

Unavailable

41

Hose | GT 550F

510003628

Unavailable

42

Pivot (40 Tooth) | GT 550F

510003543

Unavailable

43

Adjustment Wrench

529000035

$2.09

44

Adjustment Wrench | LT

520000126

$1.49

45

White, Reflector

415037900

$22.99
