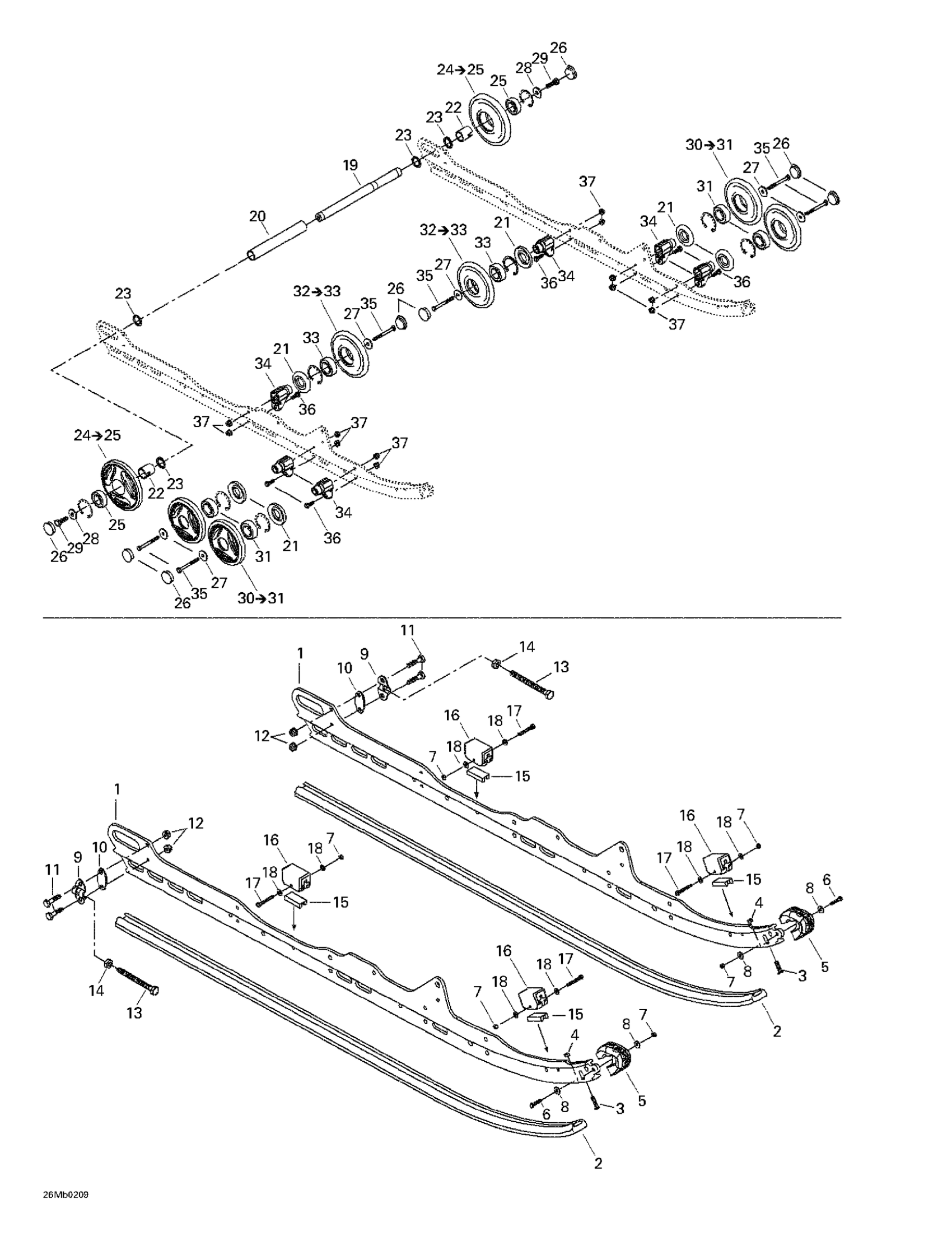

Ski-Doo Grand Touring 380 F/500 F, 2002 08- Rear Suspension Diagram

#

Description
Price

1

Runner, 136”

503189582

Unavailable

2

Slide Shoe

605355362

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$1.26

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.69

15

Reinforcement Stopper

572084800

$12.99

16

Rubber Stopper

570063000

Unavailable

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

20

SPACER - Call your local BRP dealership

503188941

Unavailable

21

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

22

Outer Spacer

503189809

$18.89

23

Washer

503180400

$3.49

24

Wheel 165 mm

503190856

$51.99

25

Ball Bearing

293350115

$12.11

26

Wheel Cap

570063600

$3.49

27

Washer

503183100

$3.17

28

Washer

503183300

$5.82

29

Hex. Screw With Nylon

250000019

$1.69

30

Wheel 139 (Full Moon) | Includes 30 - 31.

503189375

Unavailable

31

Ball Bearing

293350115

$12.11

32

Wheel 139 mm Ass'y

503190798

$33.99

33

Ball Bearing

293350115

$12.11

34

SUPPORT - Call your local BRP dealership

503190389

Unavailable

35

Hex. Screw M8 X 80

207088044

$1.68

36

Hex. Screw M8 X 25

207182544

$0.90

37

Hex. Flange Elastic Nut M8

233281414

$1.47
