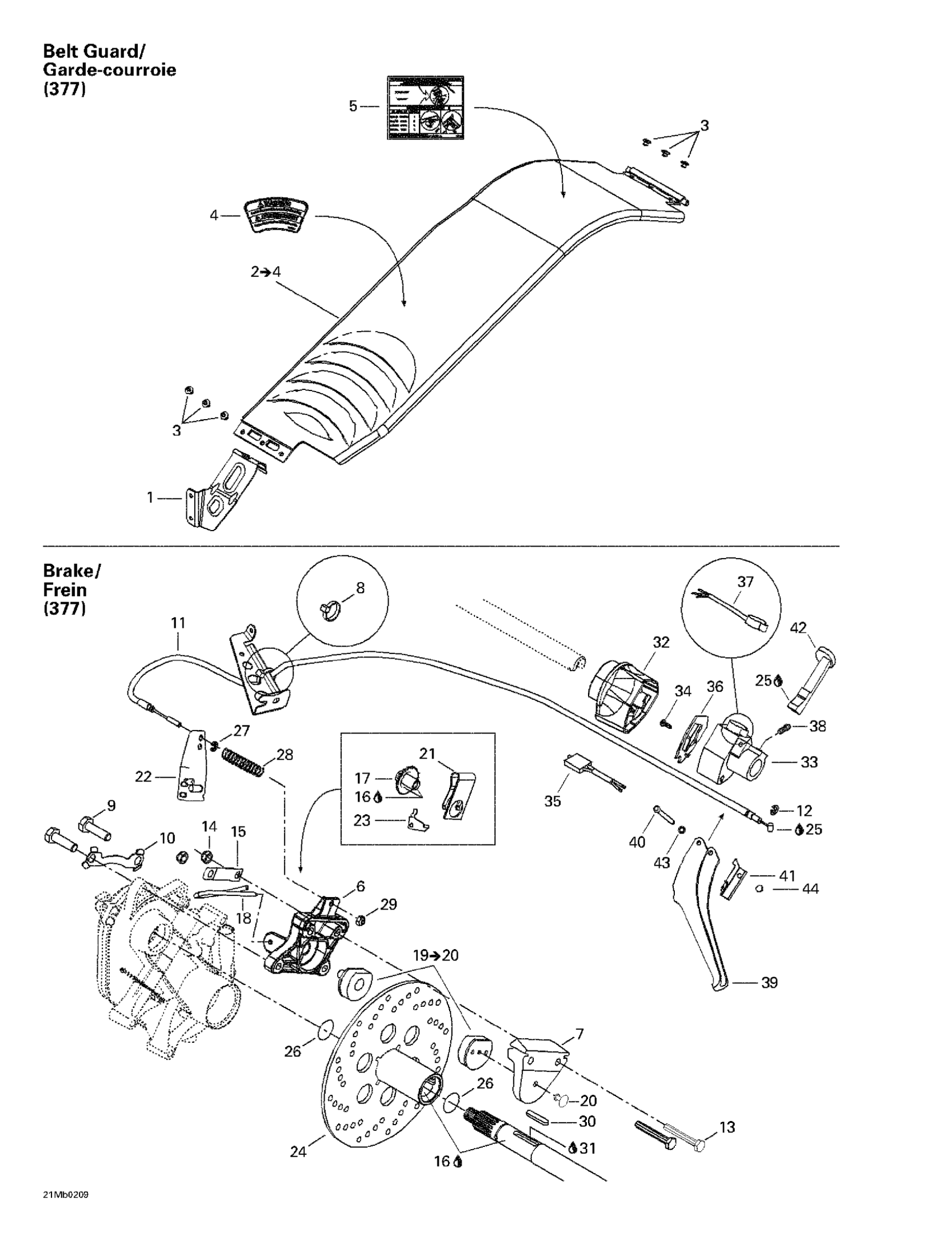

Ski-Doo Grand Touring 380 F/500 F, 2002 06- Mechanic Brake And Belt Guard Diagram

#

Description
Price

1

Bracket

417300172

Unavailable

2

Belt Guard Ass’Y | Includes Items 2 to 4

417300173

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

5

Suspension Adjustment Decal | 500 F.

418001702

Unavailable

6

Caliper

507032303

Unavailable

7

ANVIL - Call your local BRP dealership

414466800

Unavailable

8

Tie-Rap 180 mm

414115200

$0.11

9

Hex. Screw M10 X 35

207103544

$1.58

10

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

11

Brake Cable

507032315

Unavailable

12

Circlip

414274500

$0.90

13

Hex. Screw M8 X 55

207085544

$1.68

14

Hex. Elastic Stop Nut M8

232581414

$0.56

15

LOCK-TAB - Call your local BRP dealership

507020400

Unavailable

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

WELDED RATCHET WHEEL - Call your local BRP dealership

507032310

Unavailable

18

HAIR PIN - Call your local BRP dealership

507032306

Unavailable

19

Pad_Brake Kit - Call your local BRP dealership | Includes Items 19 to 20

860701700

Unavailable

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

21

RELEASE SPRING - Call your local BRP dealership

507020200

Unavailable

22

LEVER - Call your local BRP dealership

507021500

Unavailable

23

RATCHET SPRING - Call your local BRP dealership

507009400

Unavailable

24

WELDED DISK - Call your local BRP dealership

507029000

Unavailable

25

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

26

O'RING - Call your local BRP dealership

414928900

Unavailable

27

Circlip

371901300

Unavailable

28

SPRING - Call your local BRP dealership

414460600

Unavailable

29

Elastic Stop Nut M6

232561414

$0.55

30

KEY - Call your local BRP dealership

507021300

Unavailable

31

Loctite 277, 10 ml

293800073

Unavailable

32

COVER-BRAKE - Call your local BRP dealership

507032311

Unavailable

33

BRAKE HOUSING - Call your local BRP dealership

572086500

Unavailable

34

Screw

414473200

Unavailable

35

Brake Switch

507032318

Unavailable

36

Plate

507032328

Unavailable

37

DIMMER SWITCH - Call your local BRP dealership

507032314

Unavailable

38

Socket Set Screw M8 X 10

414440800

$4.12

39

BRAKE HANDLE - Call your local BRP dealership

572025700

Unavailable

40

PIN - Call your local BRP dealership

517229400

Unavailable

41

SPRING - Call your local BRP dealership

507032317

Unavailable

42

Brake Lever

572025200

Unavailable

43

WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership

414729400

Unavailable

44

Push Nut

389804300

$0.53
