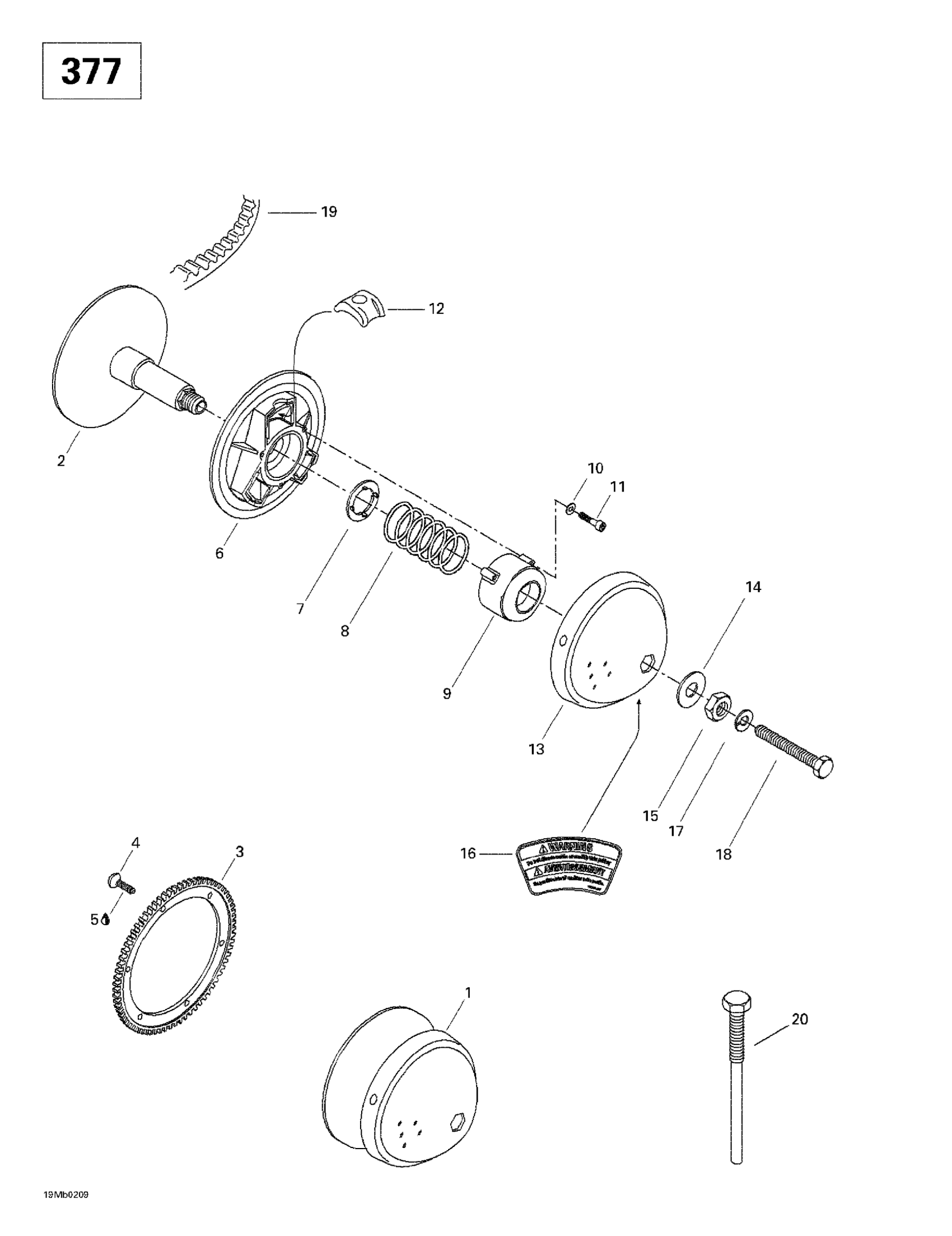

Ski-Doo Grand Touring 380 F/500 F, 2002 05- Drive Pulley (377) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Inner Flange | 380 F.

417126619

Unavailable

3

Ring Gear

417300057

Unavailable

4

Hex. Screw M8 X 16

236281684

$4.12

5

Loctite 271, 10 ml

293800005

$26.99

6

Sliding Flange | 380 F.

417126620

Unavailable

7

Guide Washer | 380 F.

417116200

Unavailable

8

Spring Violet (Blue/Green)

417126621

Unavailable

9

SPRING COVER - Call your local BRP dealership

417126622

Unavailable

10

WASHER - Call your local BRP dealership

420245370

Unavailable

11

Socket Screw M6 X 40

205064086

Unavailable

12

Centrifugal Block

417126623

Unavailable

13

Cap | 380 F.

417126624

Unavailable

14

Washer

417122400

Unavailable

15

NUT - Call your local BRP dealership

417118300

Unavailable

16

Security Label

516001247

Unavailable

17

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

18

BOLT - Call your local BRP dealership

417113800

Unavailable

19

Drive Belt

415060600

$104.99

20

Puller Inner Half | 380 F.

529031400

$38.99
