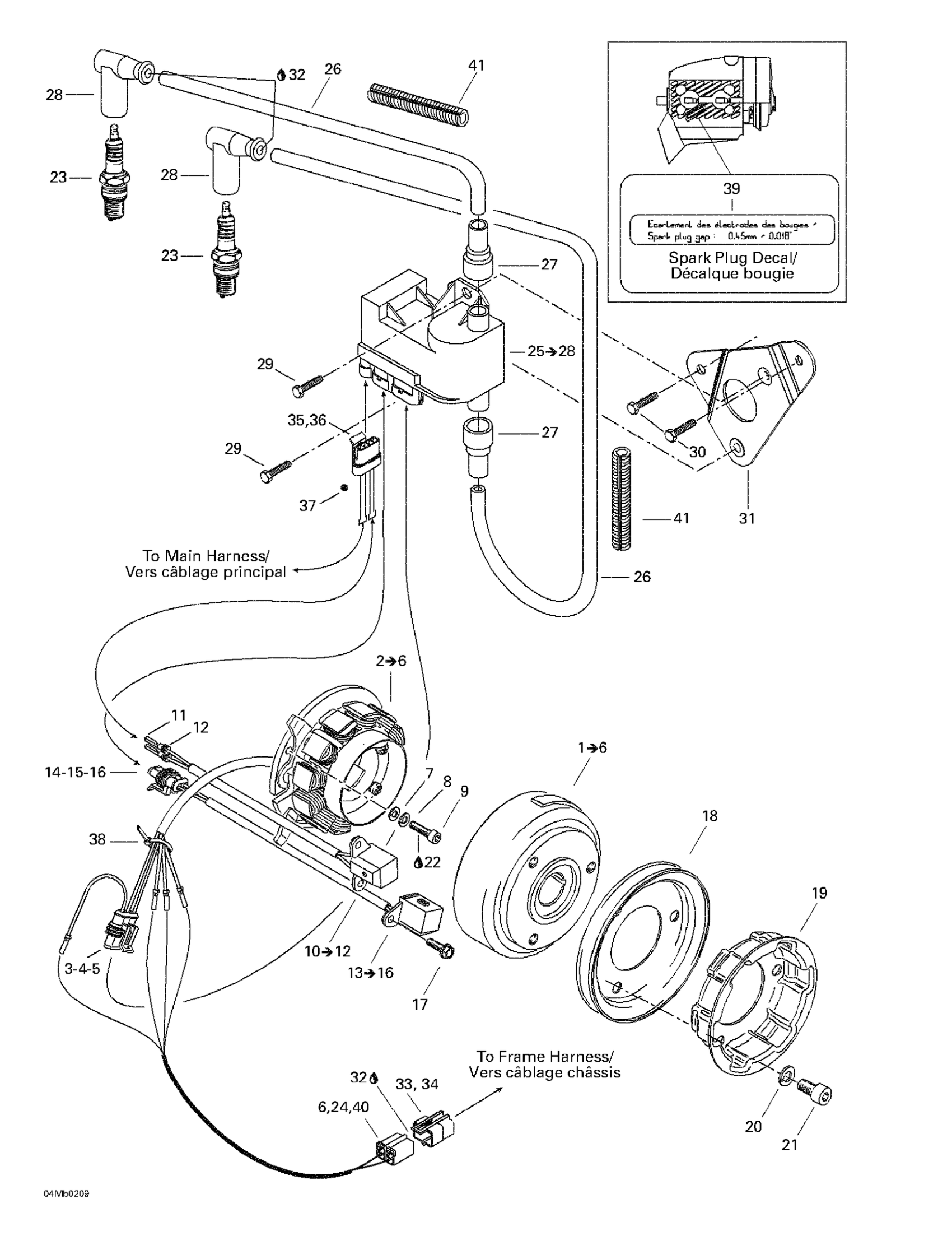

Ski-Doo Grand Touring 380 F/500 F, 2002 03- Magneto Diagram

#

Description
Price

1

Magneto Ducati 12V, 240W | Includes 1 - 6.

420889160

Unavailable

1

Flywheel

420889376

$494.49

2

Stator Plate Ass'y | Includes 2 - 6.

420889360

$319.49

3

Female Housing, 3 Circuits

409209600

$35.99

4

Female Terminal

278001014

$3.28

5

Wire Seal

278001013

$3.28

6

Female Terminal

515175567

$7.69

7

Washer 5.3

420927574

$1.90

8

Lock Washer

420945750

Unavailable

9

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

10

Pick-Up

420665163

$164.99

11

Female Terminal

278001014

$3.28

12

Wire Seal

278001013

$3.28

13

PICK-UP - Call your local BRP dealership

420665160

Unavailable

14

Female Housing, 2 Circuits

409209500

$15.27

15

Female Terminal

278001014

$3.28

16

Wire Seal

278001013

$3.28

17

Taptite Screw M5 X 16

420941928

Unavailable

18

V-Belt Pulley

420980486

$37.99

19

Rope Sheave

420852414

$29.49

20

Lock Washer

420845311

$1.90

21

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

24

Female Terminal Housing, 4 Circuits

278001473

$26.99

25

Calibration Module | 380F, Includes Items 25 to 28

512059518

$479.99

CALIBRATION MODULE - Call your local BRP dealership | Includes 25 - 28.

512059519

Unavailable

26

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

27

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

28

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

29

Hex. Flange Screw M6 X 16

210261650

$1.67

30

Hex. Screw M6 X 16

209561640

Unavailable

31

Module Support Ass’Y

512059494

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

Male Terminal

515175568

$9.12

35

Female Housing, 4 Circuits

409209700

$16.18

36

Female Terminal

278001014

$3.28

37

Wire Seal

278001013

$3.28

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Spark Plug Decal

516000986

Unavailable

40

Female Lock, 4 Circuits

278001474

$3.49

41

Was 409901700 Tubing (9 mm)

219704399

$84.99
