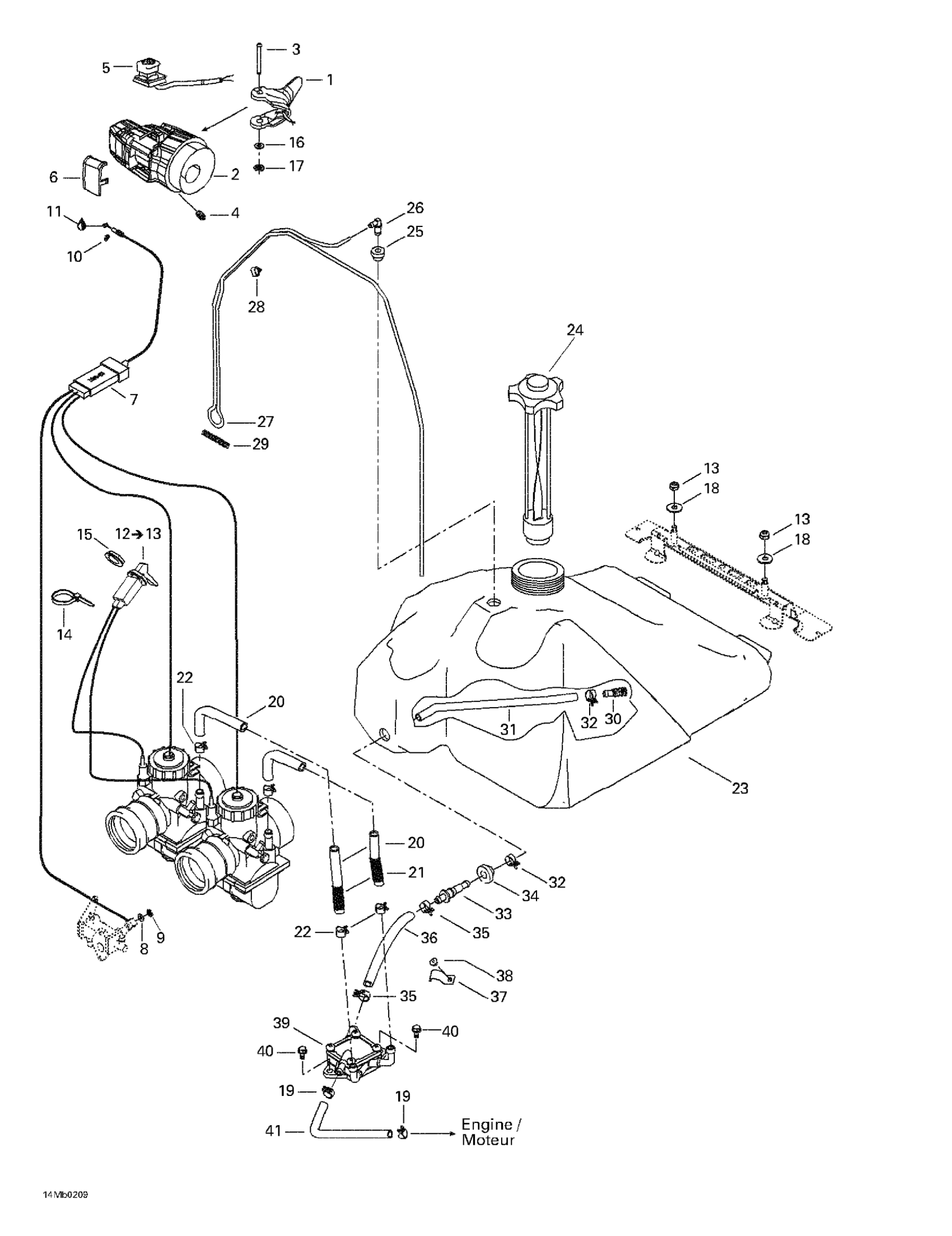

Ski-Doo Grand Touring 380 F/500 F, 2002 02- Fuel System Diagram

Handle Ass'y

512060214

$124.99

Handle Ass’Y

512059624

$93.99

Throttle Handle Housing

572100900

Unavailable

Lever Pin

414438700

$11.64

Socket Set Screw M8 X 10

414440800

$4.12

Kill Switch

515175410

Unavailable

Switch Cover

572100901

$14.83

THROTTLE CABLE - Call your local BRP dealership

512059490

Unavailable

Flat Washer 8 mm, Nylon

234081100

$1.39

Circlip

414753500

$0.71

Circlip

414274500

$0.90

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

CHOKE CABLE - Call your local BRP dealership

512059441

Unavailable

Hex. Elastic Stop Nut M8

232581414

$0.56

Tie-Rap 173 mm

293750009

$1.04

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

Flat Washer M5, Stainless

234051600

$0.77

Circlip | Model-RS

414439000

$4.23

Flat Washer 8 mm

234082410

$1.47

Spring Clamp

414415200

$0.88

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Universal Spring Clamp

513033029

$5.39

Fuel Tank

513032987

Unavailable

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

Grommet

513032908

$10.49

Male Connector

414814100

$2.22

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

SPRING - Call your local BRP dealership

414818200

Unavailable

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

Hose

415005700

$11.58

Norma Spring Clamp

513033010

$9.69

Male Connector

414872700

$1.90

Grommet | Europe

707800347

$10.49

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

Formed Hose

513032903

$30.99

CLIP - Call your local BRP dealership

415018200

Unavailable

Pop Rivet 3/16"

390406500

$0.88

Fuel Pump

403901813

$84.99

Hex. Flange Screw M6 X 16

210261650

$1.67

Hose

219704549

$50.99
