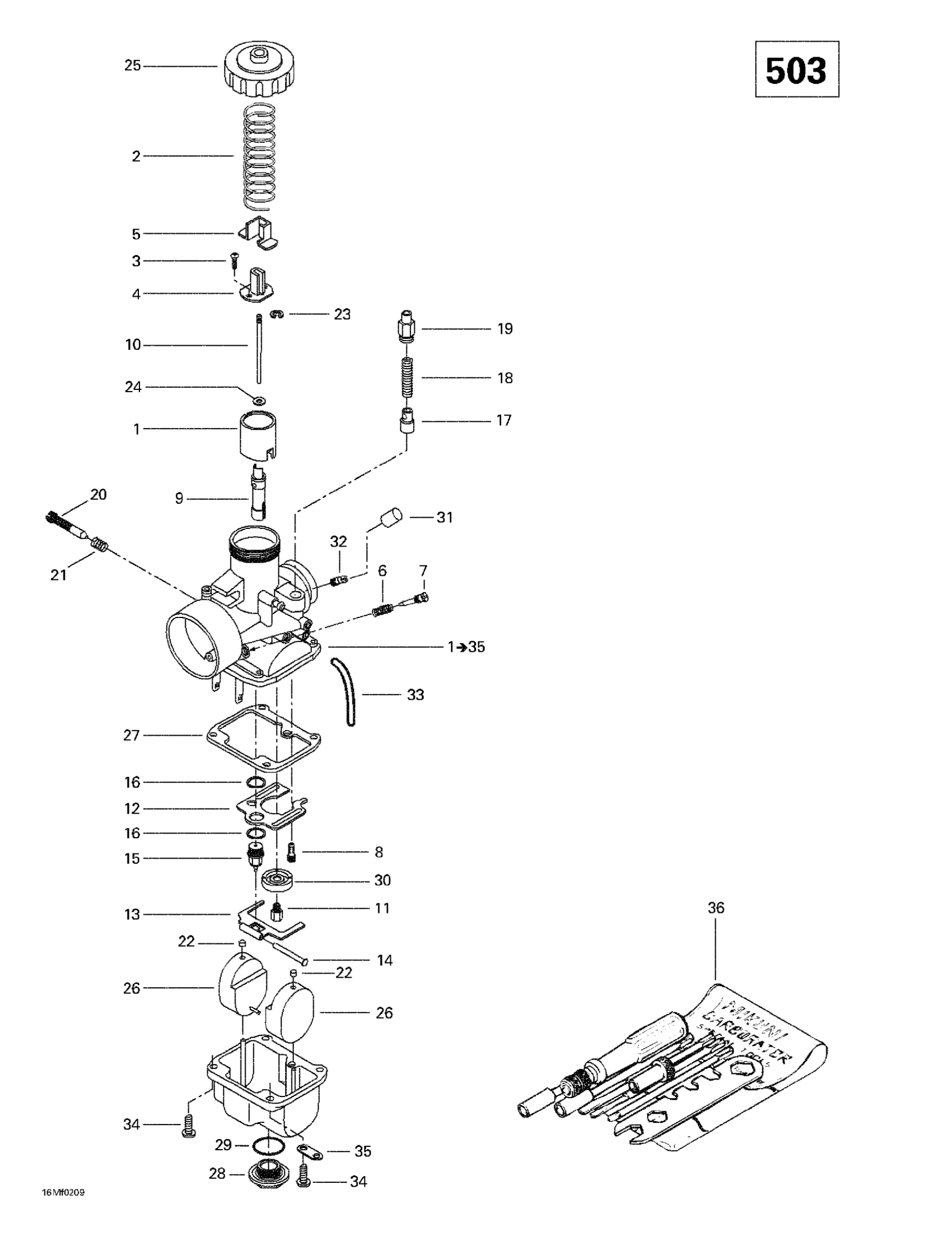

Ski-Doo Grand Touring 380 F/500 F, 2002 02- Carburetors (503) Diagram

Carburetor

403138697

Unavailable

PISTON VALVE 2.0 - Call your local BRP dealership

404128600

Unavailable

Spring

404154800

$23.99

Screw With Washer

404121300

$4.14

Packing

404161987

$15.35

Cover

404122100

$19.49

SPRING - Call your local BRP dealership

404139800

Unavailable

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

Needle Jet Nj P-4, 159

404103600

Unavailable

Jet Needle Jn J8-6Afy05

404161989

Unavailable

Main Jet Mj 210

404119100

$5.21

BAFFLE - Call your local BRP dealership

404109600

Unavailable

Float Lever

404107600

$22.99

Lever Pin

404103300

$6.27

Needle Valve 1.2

404147500

$42.49

Seat Washer

404101600

$3.29

Plunger Ass'y | MAG Side

404161986

$19.49

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

Spring

404101700

$4.14

Cap

404105800

$6.38

E-Ring

404152400

$7.27

Packing

404117000

$3.29

Cover

404103700

$31.99

FLOAT - Call your local BRP dealership

404107100

Unavailable

Gasket | Includes 1900a to 1900am

404104200

$6.38

Drain Plug Screw

404107400

$22.99

O-Ring

404107300

$9.06

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

Cap

404156600

$17.08

Nipple

404153400

$12.16

AIR VENT TUBE - Call your local BRP dealership

404161851

Unavailable

Screw With Lock Washer

404102000

$3.18

PLATE - Call your local BRP dealership

404103000

Unavailable

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
