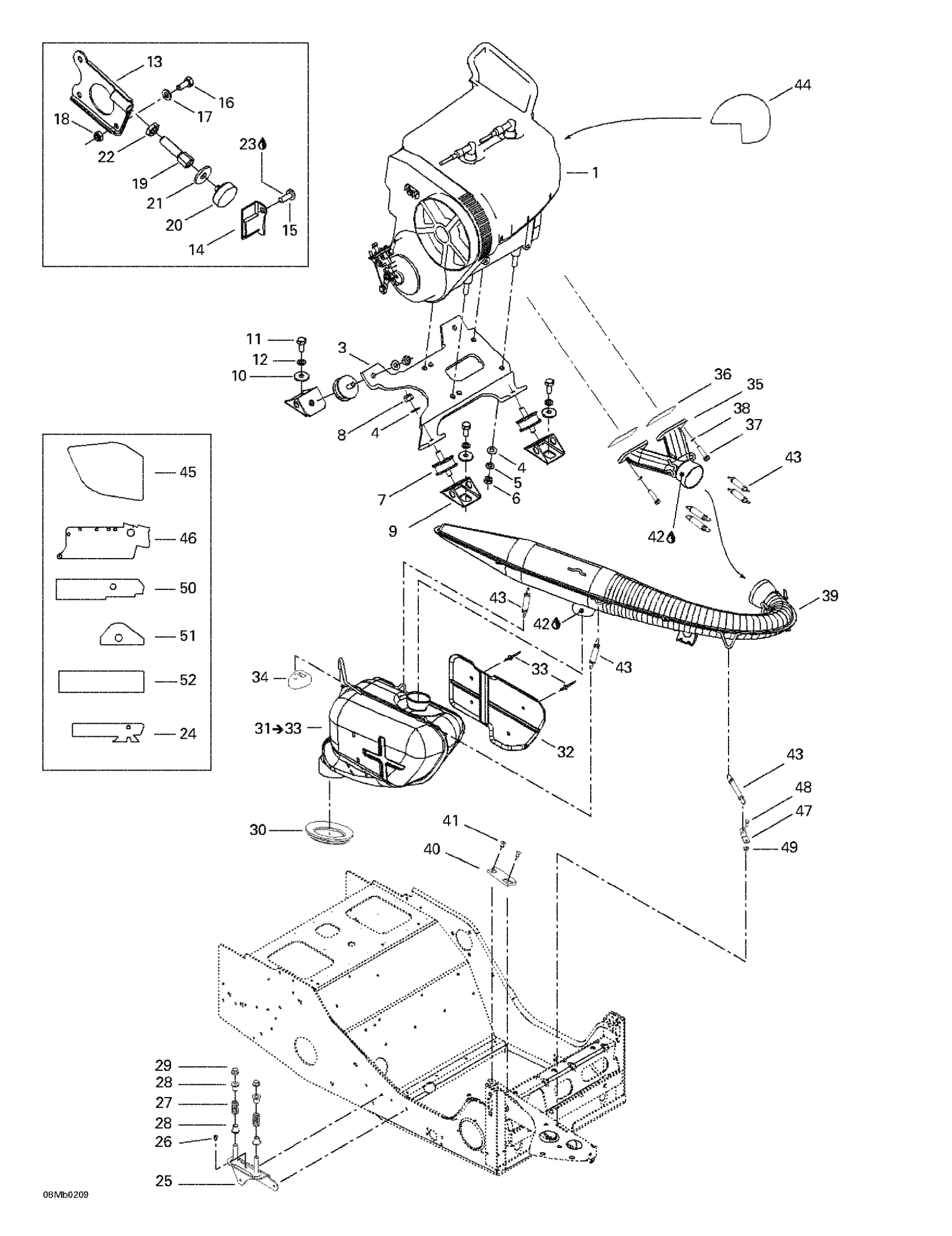

Ski-Doo Grand Touring 380 F/500 F, 2002 01- Engine Support And Muffler Diagram

#

Description
Price

1

ENGINE 377 | 380 F.

400308910

Unavailable

Engine 503F

400509728

Unavailable

2

SPACER - Call your local BRP dealership

512051800

Unavailable

3

Engine Support

512059397

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.37

7

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

8

Elastic Locking Nut M10 X 1.5

233601416

$1.69

9

Engine Support

512050900

Unavailable

10

Lock Washer

512056700

$3.17

11

Hex. Screw M10 X 25

207102544

$1.37

12

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

13

Welded Plate

512059446

Unavailable

14

Welded Plate | 380 F.

512059399

Unavailable

15

Hex. Screw M8 X 20

236282084

$1.48

16

Hex. Screw M8 X 20

207182044

$0.74

17

Flat Washer 8 mm

234081410

$0.83

18

Hex. Elastic Stop Nut M8

232581414

$0.56

19

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

20

Stopper

512059056

Unavailable

21

WASHER - Call your local BRP dealership

512059057

Unavailable

22

Nut Hexagonal RH.

232026414

$1.48

23

Loctite 271, 10 ml

293800005

$26.99

24

Reflective Sheet | FOR RIM CAB ONLY

514053391

Unavailable

25

Muffler Bracket

514053263

Unavailable

26

Pop Rivet 3/16"

390402200

$0.35

27

SPRING - Call your local BRP dealership

414913700

Unavailable

28

GUIDE - Call your local BRP dealership

514053343

Unavailable

29

Hex. Flange Nut M8

233081416

$1.15

30

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

31

Muffler Ass’y | 380F, Includes Items 27 to 29

514053387

Unavailable

Muffler Ass'y | 500 F.

514053388

Unavailable

32

Heat Shield

514053389

Unavailable

33

Pop Rivet 3/16”

390910000

$0.57

34

RUBBER BUMPER - Call your local BRP dealership

514052704

Unavailable

35

Exhaust Manifold

420673060

Unavailable

Exhaust Manifold

420878938

Unavailable

36

Gasket 1.0 mm

420831849

$8.85

GASKET - Call your local BRP dealership

420850114

Unavailable

37

Socket Head Screw M8 X 30

205083044

$1.15

38

Lock Washer 8 mm

234181401

$0.92

39

Calibration Tube | 380F

514053243

Unavailable

40

Rubber Pad

570044100

Unavailable

41

Pop Rivet 3/16"

390406500

$0.88

42

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

43

Spring

415107100

$6.35

44

Reflective Sheet

514053363

Unavailable

45

Reflective Sheet

514052718

Unavailable

46

REFLECTIVE SHEET - Call your local BRP dealership

514053390

Unavailable

47

Spring Bracket

514054522

$8.45

48

Hex. Screw M5 X 12

207151244

$0.90

49

Hex. Flange Elastic Nut M5

233251414

$1.04

50

Reflective Sheet, Black Cab

514053435

Unavailable

51

Reflective Sheet, Black Cab

514053446

Unavailable

52

Reflective Sheet

514053392

Unavailable
