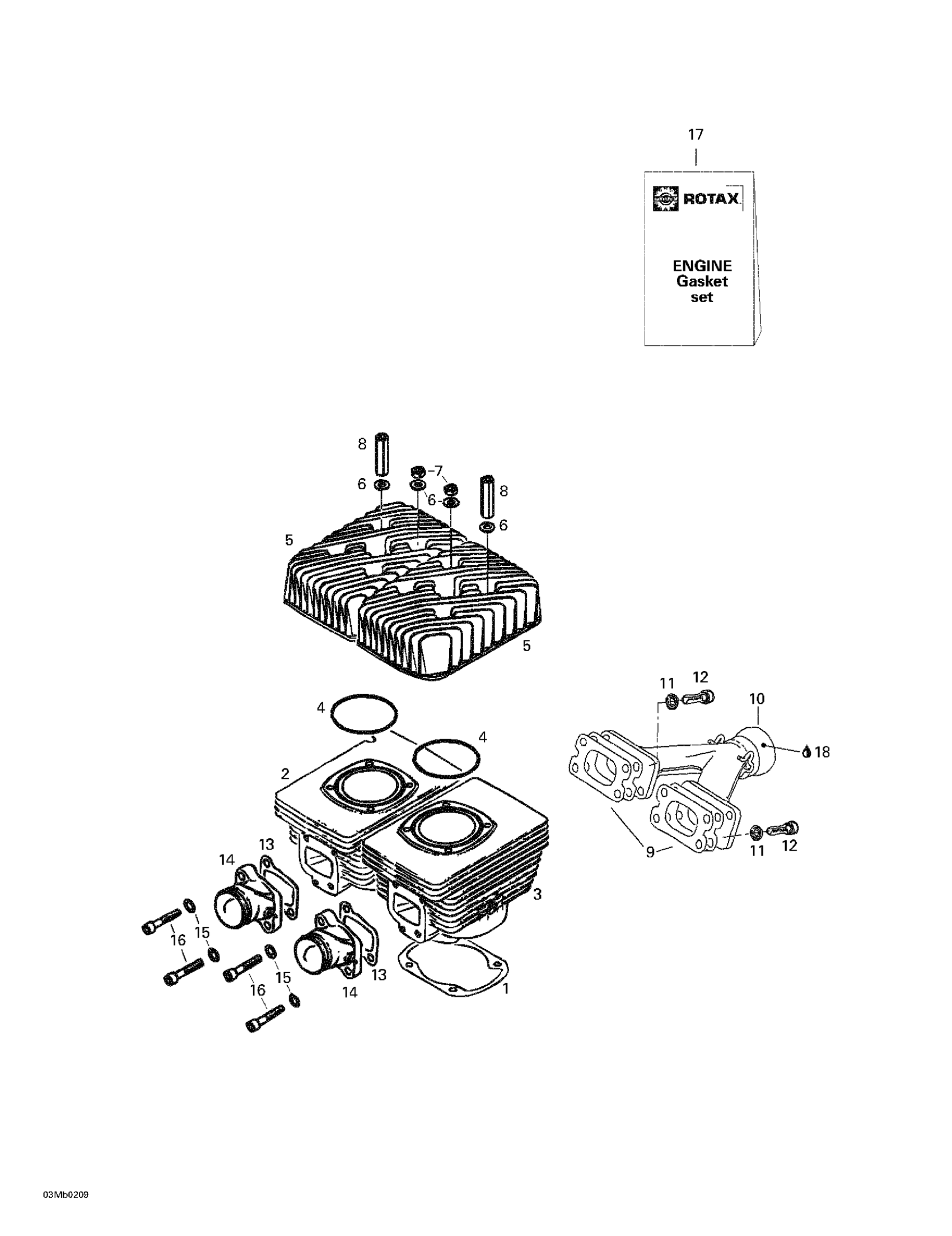

Ski-Doo Grand Touring 380 F/500 F, 2002 Cylinder, Intake Exhaust Manifold Diagram

#

Description
Price

1

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

Gasket 0.4 mm

420831858

$13.16

2

REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.

421000500

Unavailable

2

Cylinder With Sleeve, PTO

420923403

Unavailable

REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.

421000500

Unavailable

3

Cylinder With Sleeve, Mag

420923408

Unavailable

4

O-Ring

420931380

$12.70

O-Ring This part replaces 420850540.

293300026

$3.39

5

CYLINDER HEAD - Call your local BRP dealership

420613630

Unavailable

CYLINDER HEAD - Call your local BRP dealership

420923590

Unavailable

6

Flat Washer 8.4 mm

420250315

$1.15

7

Hex. Nut M8

232081414

$0.72

8

Distance Nut M8

420842385

Unavailable

Distance Nut M8 X 47

420842204

$16.33

9

GASKET - Call your local BRP dealership

420850114

Unavailable

Gasket 1.0 mm

420831849

$8.85

10

Exhaust Manifold

420878938

Unavailable

Exhaust Manifold

420673060

Unavailable

11

Lock Washer 8 mm

234181401

$0.92

12

Socket Head Screw M8 X 30

205083044

$1.15

13

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

14

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

15

Washer-Lock Din.128

420945832

$1.15

16

Screw M8 X 35

420841591

$2.96

Allen Screw M8 X 40

420840682

$3.91

17

GASKET SET, ENGINE - Call your local BRP dealership

420994232

Unavailable

ENGINE GASKET SET - Call your local BRP dealership

420994238

Unavailable

18

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
