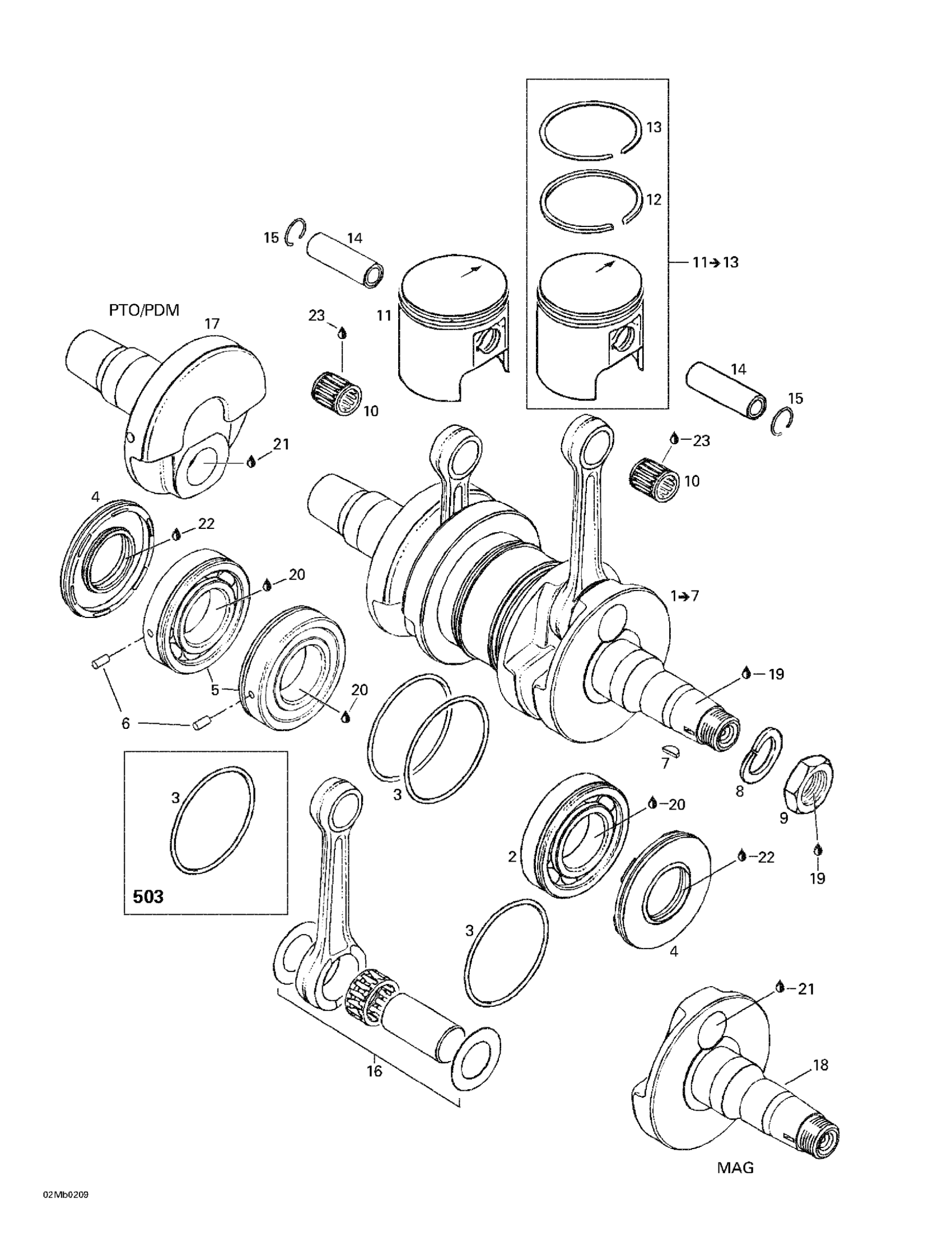

Ski-Doo Grand Touring 380 F/500 F, 2002 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft ass'y | Includes 1 - 7.

420887249

Unavailable

Crankshaft Ass’Y | Includes 1 - 7.

420888391

Unavailable

REBUILD-CRANKSHAFT 503 97 - Call your local BRP dealership

421000155

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$41.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Oil Seal This part replaces 290831952.

420831952

$18.01

5

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

6

Dowel Pin

420929972

Unavailable

7

Woodruff Key

420246055

$2.43

8

Lock Washer, 22 mm

420945759

$1.90

9

Hex. Nut, M22 X 1.5

420842239

$17.53

10

Needle Bearing

420932904

$15.89

Needle Bearing

420832320

$30.49

11

PISTON ASS?Y 61.94 MM - Call your local BRP dealership | Inludes Items 11 to 13

420887475

Unavailable

Oversize Piston Ass’y 62.19 mm | Inludes Items 11 to 13

420887476

Unavailable

Oversize Piston Ass’y 62.44 mm | Inludes Items 11 to 13

420887477

Unavailable

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$169.99

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$169.99

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$154.49

12

RECTANGULAR RING, 62.0 MM - Call your local BRP dealership

420915895

Unavailable

Rectangular Ring, 62.25 mm

420915896

Unavailable

RECTANGULAR RING, 62.5 MM - Call your local BRP dealership

420915897

Unavailable

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

13

SEMI-TRAPEZ RING, 62.0 MM - Call your local BRP dealership

420215215

Unavailable

SEMI-TRAPEZ RING, 62.25 MM - Call your local BRP dealership

420215216

Unavailable

SEMI-TRAPEZ RING, 62.5 MM - Call your local BRP dealership

420215217

Unavailable

SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership

420815200

Unavailable

SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership

420815201

Unavailable

SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership

420815202

Unavailable

14

GUDGEON PIN - Call your local BRP dealership

420916260

Unavailable

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

15

Piston Circlip

420945735

$4.46

16

Rod repair kit

420996334

Unavailable

Rod Repair Kit

420996394

Unavailable

17

PTO Side Crankshaft

420818204

Unavailable

CRANKSHAFT HALF PTO - Call your local BRP dealership

420818244

Unavailable

18

MAG SIDE HALF-CRANK - Call your local BRP dealership

420819010

Unavailable

CRANKSHAFT HALF MAG - Call your local BRP dealership

420819020

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

Sealant Loctite 648

219703000

$45.99

22

Dow Corning 111, 150 g

413707000

$59.99

23

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
