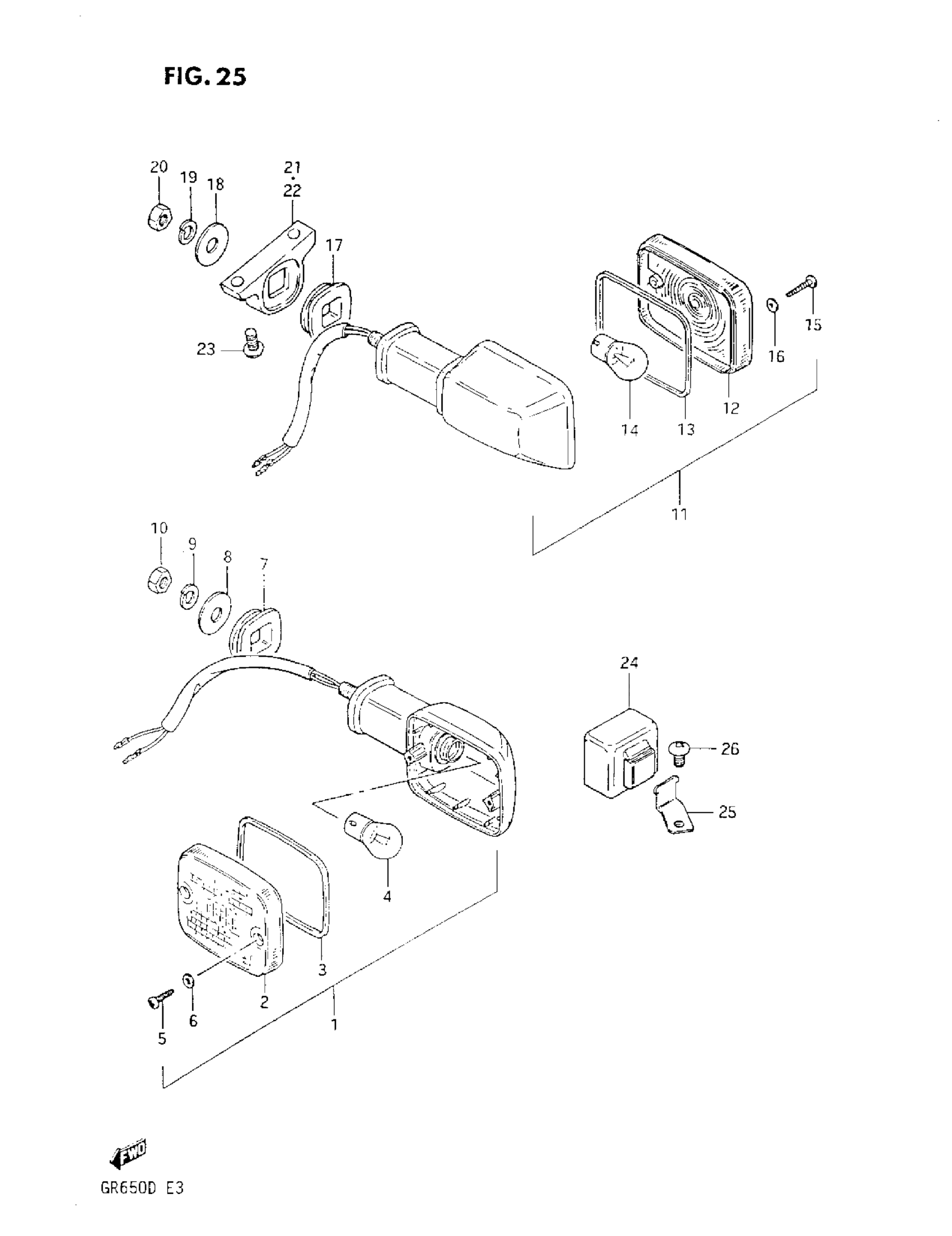

Suzuki GR650 (1983) TURN SIGNAL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 35601-45130.

35603-45131

Unavailable

2

LENS

35612-49231

$20.03

3

GASKET

35613-49230

$6.08

4

BULB (12V, 23W)

09471-12006

$3.76

5

SCREW This part replaces 03211-04208.

03211-04207

$1.30

6

GASKET

35627-43010

$2.29

7

CUSHION

09320-15005

$5.35

8

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.40

9

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

10

NUT This part replaces 08310-12108.

08310-00107

$2.25

11

NO DESCRIPTION AVAILABLE This part replaces 35603-45130.

35603-45131

Unavailable

12

LENS

35612-49231

$20.03

13

GASKET

35613-49230

$6.08

14

BULB (12V, 23W)

09471-12006

$3.76

15

SCREW This part replaces 03211-04208.

03211-04207

$1.30

16

GASKET

35627-43010

$2.29

17

CUSHION

09320-15005

$5.35

18

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.40

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

20

NUT This part replaces 08310-12108.

08310-00107

$2.25

21

BRACKET, REAR RH

35621-15500

Unavailable

22

BRACKET, REAR LH

35641-15500

Unavailable

23

SCREW This part replaces 02112-06168.

02112-06167

$1.46

24

RELAY ASSY, TURNSIGNAL This part replaces 38610-45031.

38610-31X50

$90.45

25

BRACKET, REALY

38621-15500

Unavailable

26

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06105.

02142-0610A

$1.43
