1983 Suzuki GR650 Rear Combination Lamp Diagram

← All diagrams

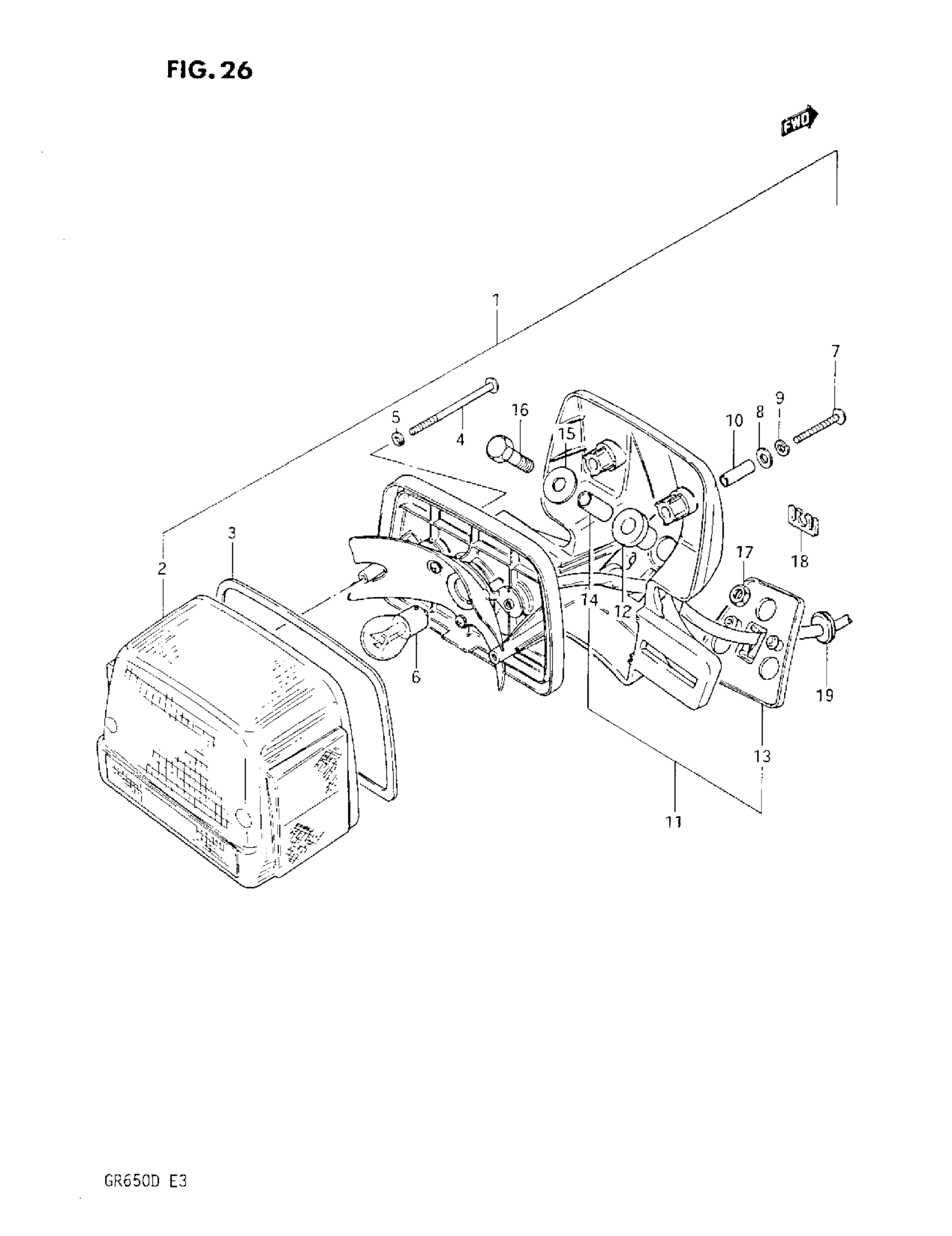

Find the part on the Rear Combination Lamp diagram for your 1983 Suzuki GR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GR650 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT. REAR COMBINATION This part replaces 35720-15530.

35720-38330-999

1
Out of stock

2

LENS

35712-49130

1
Out of stock

3

GASKET

35713-49130

1
Out of stock

4

SCREW

35723-44130

2
Out of stock

5

GASKET

35627-43010

2

$2.65

In stock

6

BULB (12V , 23/8W)

09471-12035

1
Out of stock

7

SCREW This part replaces 02112-05358.

02112-05357

2
Out of stock

8

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

10

SPACER

35766-15530

2
Out of stock

11

BRACKET UNIT

35730-15530

1
Out of stock

12

CUSHION

35764-15530

3
Out of stock

13

CUSHION

35765-15530

1
Out of stock

14

SPACER

35766-38210

3
Out of stock

15

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

3
Out of stock

16

BOLT This part replaces 01107-06258.

01500-06257

3
Out of stock

17

NUT This part replaces 08316-26068.

08316-2006A

3
Out of stock

18

HOLDER, LEAD WIRE

36619-15500

1
Out of stock

19

GROMMET

09308-09001

1
Out of stock
