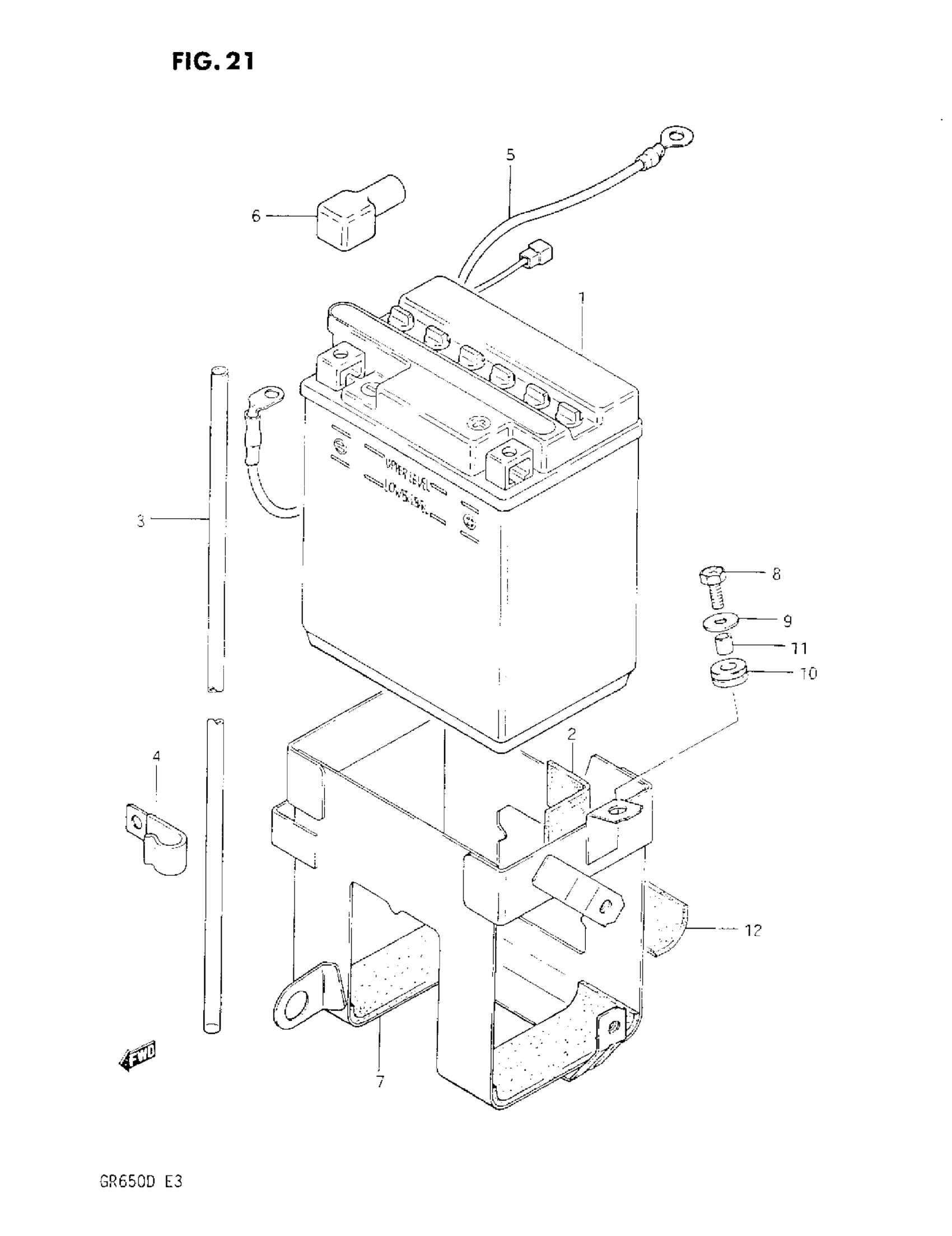

Suzuki GR650 (1983) BATTERY Diagram

#

Description
Price

1

BATTERY (12V, 14AH)

33610-49210

Unavailable

2

PROTECTOR

33651-37000

$4.09

3

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$7.65

4

CLAMP This part replaces 09403-09303.

09403-09003

$2.38

5

LEAD WIRE, (-) This part replaces 33850-15500.

33850-38420

Unavailable

6

CAP, TERMINAL

33624-45000

$4.31

7

HOLDER, BATTERY

41540-15500

Unavailable

8

SCREW

09128-06039

Unavailable

9

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.89

10

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

11

SPACER

09180-06038

$1.86

12

TAPE, BATTERY HOLDER

41549-15500

Unavailable
