1984 Kawasaki GPZ 750 Swing Arm Diagram

← All diagrams

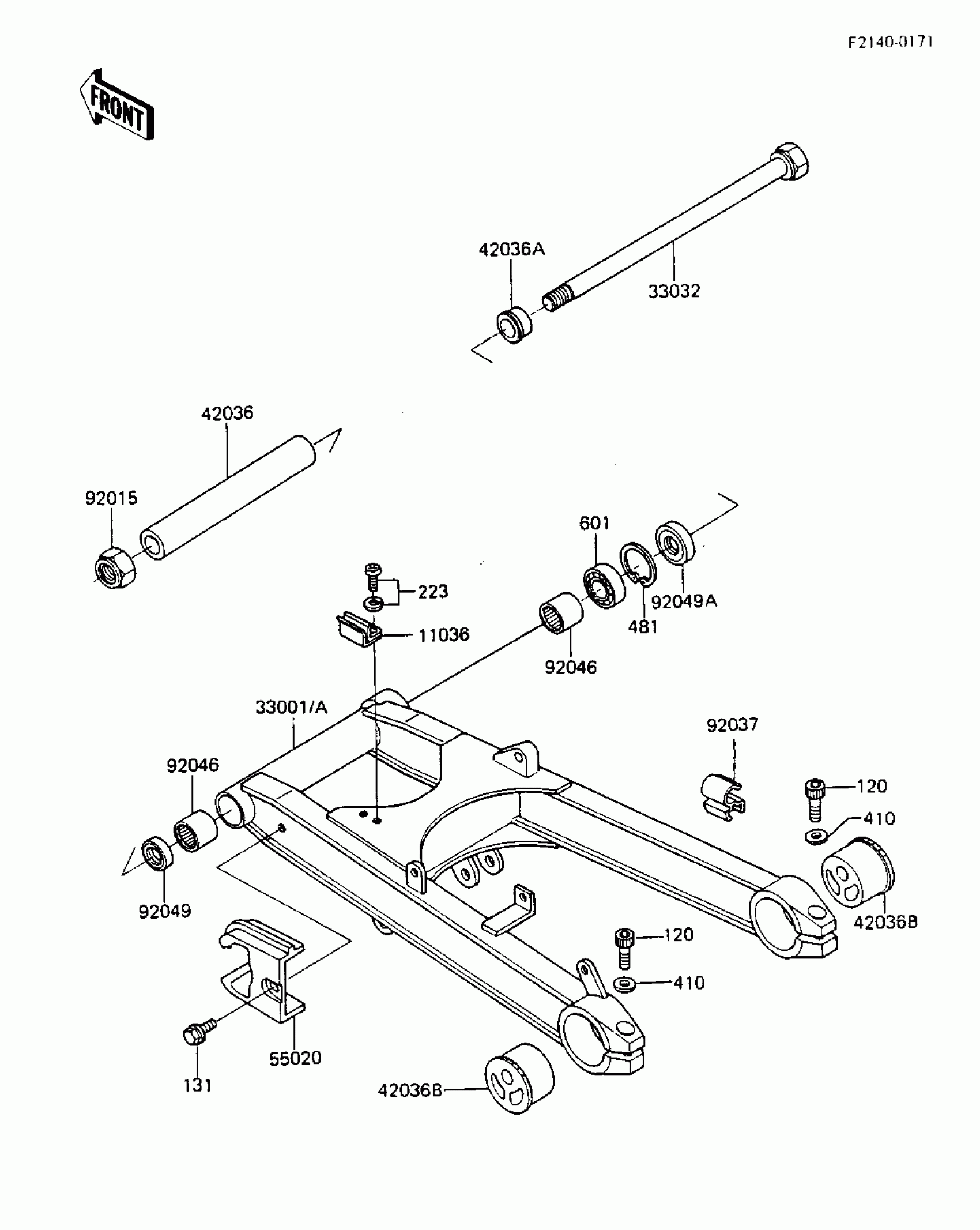

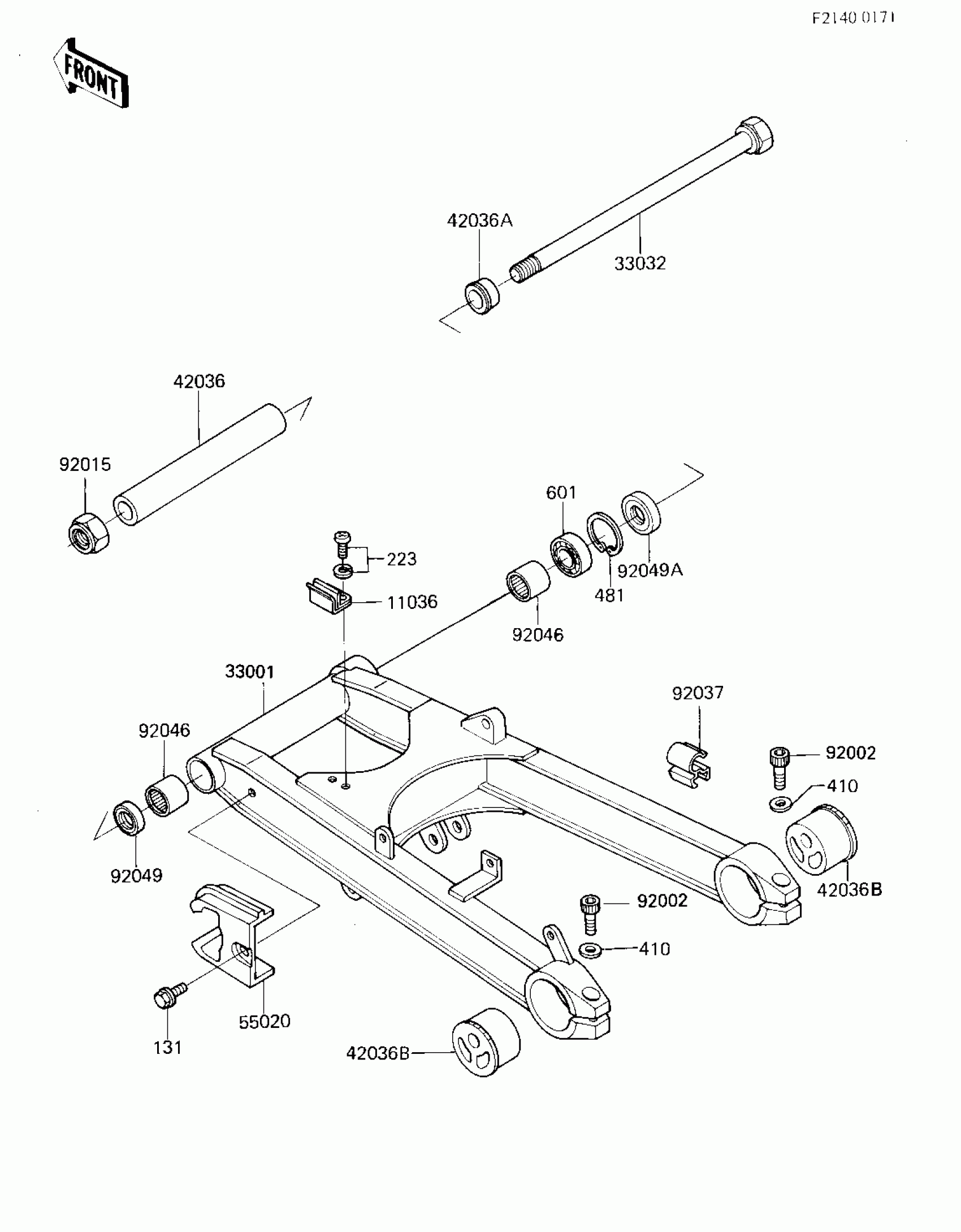

Find the part on the Swing Arm diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki GPZ 750 Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,CAIN CASE

11036-1868

1
Out of stock

33001A

ARM-COMP-SWING,G.SILV

33001-1215-F2

1

$576.26

In stock

33032

SHAFT-SWING ARM

33032-1040

1

$103.69

In stock

42036

SLEEVE,17.1X25X212

42036-1080

1
Out of stock

42036A

SLEEVE,17.1X24X11.5

42036-1081

1
Out of stock

42036B

SLEEVE,AXLE,RR

42036-1082

1

$85.67

In stock

55020

GUARD,CHAIN

55020-1153

1
Out of stock

92015

NUT,LOCK,16MM,BLACK

92015-1207

1
Out of stock

92037

CLAMP,BRAKE HOSE

92037-1392

1
Out of stock

92046

1

$23.73

In stock

92049

SEAL-OIL,MH25334

92049-1060

1
Out of stock

92049A

SEAL-OIL,AG1258AO

92049-1110

1
Out of stock

120

BOLT-SOCKET,10X35

120P1035

1
Out of stock

131

BOLT-FLANGED

131G0516

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0508

1
Out of stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock

481

RING-SNAP,40MM

92033-1040

1

$4.67

In stock

601

1

$11.12

In stock
