1984 Kawasaki GPZ 750 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

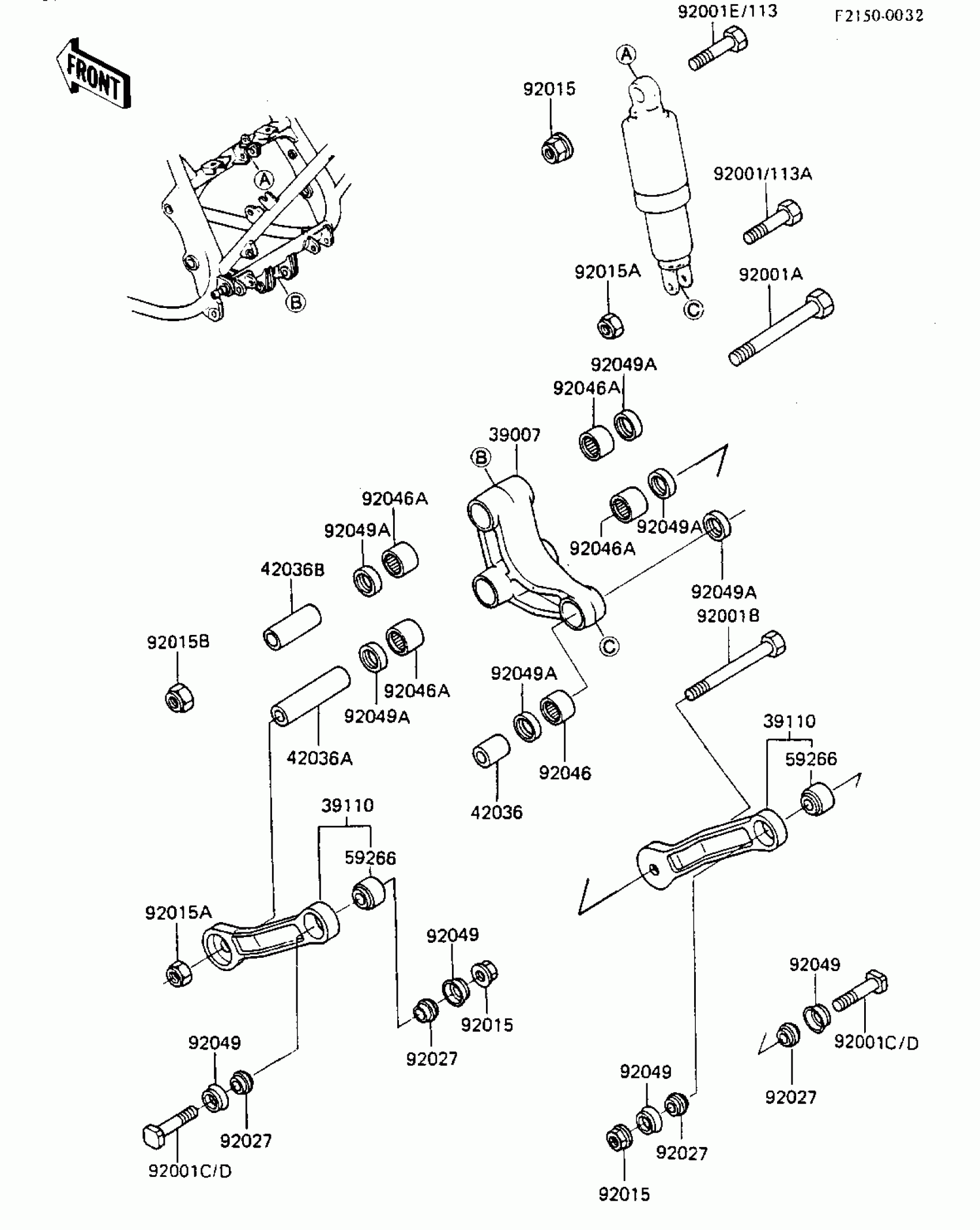

1984 Kawasaki GPZ 750 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1026

1
Out of stock

39110

ROD-ASSY-TIE

39110-1017

1
Out of stock

42036

SLEEVE,12.1X20X26

42036-1072

1
Out of stock

42036A

SLEEVE,12.1X20X84

42036-1075

1
Out of stock

42036B

SLEEVE,14.1X20X55

42036-1084

1
Out of stock

59266

JOINT-BALL

59266-1051

1
Out of stock

92001

BOLT,12X55

92001-1497

1
Out of stock

92001A

BOLT,14X108

92001-1808

1
Out of stock

92001B

BOLT,12X106

92001-1809

1
Out of stock

92001D

BOLT,10X45

92150-1402

1
Out of stock

92001E

BOLT,HEX HEAD,10X50

92003-090

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92015A

NUT-LOCK,12MM

92019-009

1
Out of stock

92015B

NUT-LOCK,14MM

92019-011

1
Out of stock

92027

COLLAR,L=5.5

92027-1392

1
Out of stock

92046

BEARING-NEEDLE,HK2016

92046-1054

1
Out of stock

92046A

BEARING-NEEDLE,FJ-202

92046-1061

1
Out of stock

92049

SEAL-OIL

92049-1083

1
Out of stock

92049A

SEAL-OIL,GD20X26X4

92049-1108

1
Out of stock
