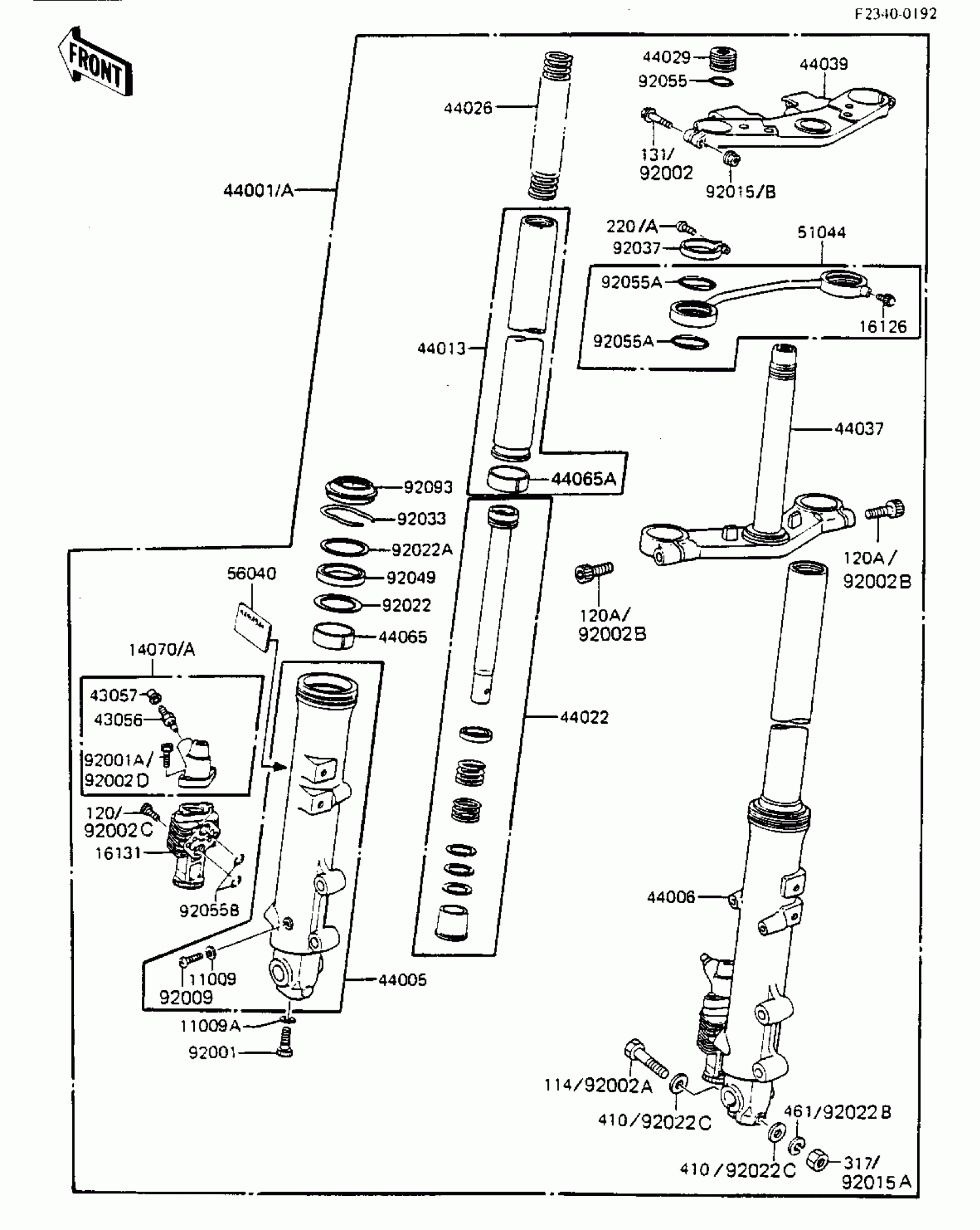

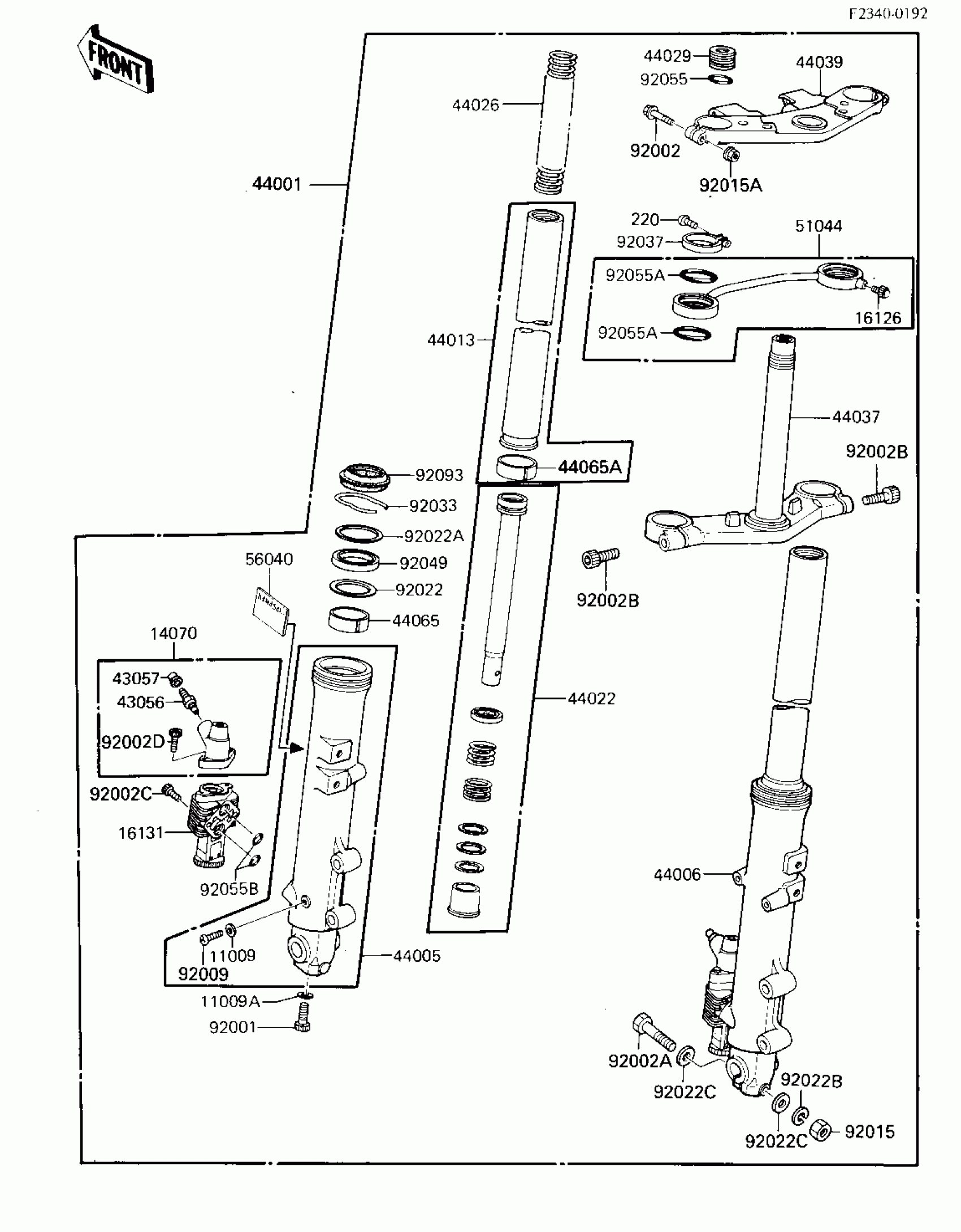

1984 Kawasaki GPZ 750 Front Fork Diagram
Find the part on the Front Fork diagram for your 1984 Kawasaki GPZ 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
14070A
BODY-BREATHER,FORK
14070-1055
1
Out of stock
44022
CYLINDER-FORK
44022-1153
1
Out of stock
51044
TUBE-ASSY,AIR,FORK
51044-1027
1
Out of stock
56040
LABEL-WARNING
56040-1030
1
Out of stock
92002A
BOLT,8X60
92002-1163
1
Out of stock
92009
SCREW,4X8
92009-1324
1
Out of stock
92015A
NUT,8MM
92015-1400
1
Out of stock
92022A
WASHER,FORK OUTER PIP
92022-1456
1
Out of stock
92022C
WASHER,PLAIN,8MM
92022-1554
1
Out of stock
92037
CLAMP,FRONT FORK
92037-1454
1
Out of stock
92049
SEAL-OIL,FORK OUTER T
92049-1372
1
Out of stock
92055A
RING-O,TUBE ASSY
92055-1164
1
Out of stock
