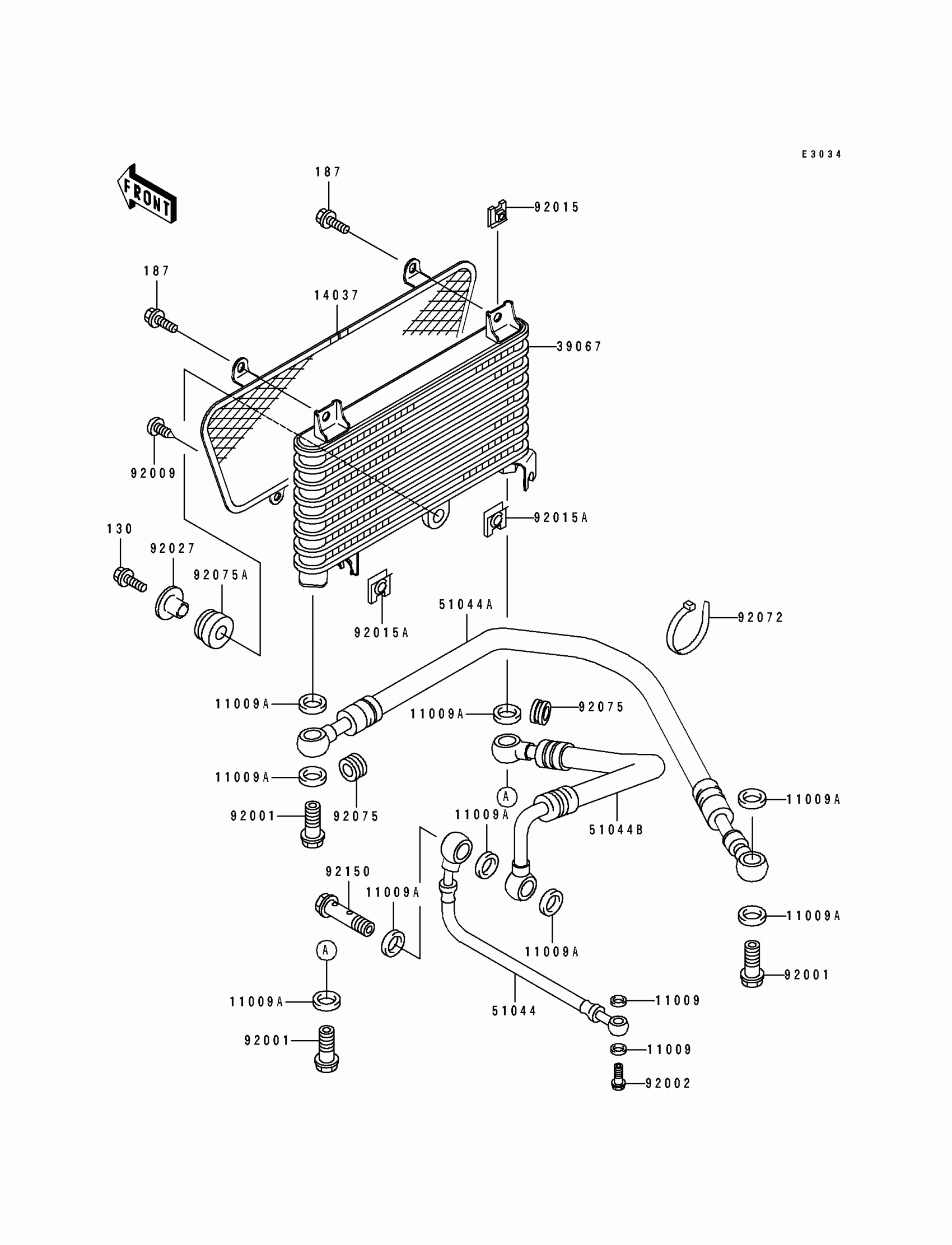

Kawasaki GPZ 1100 ABS Oil Cooler Diagram

Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

11009A

GASKET,14X19.5X1.4

11009-1461

$4.04

14037

SCREEN,OIL COOLER

14037-1199

Unavailable

39067

COOLER-OIL

39067-1063

Unavailable

51044

TUBE-ASSY,OIL

51044-1130

$185.46

51044A

TUBE-ASSY

51044-1177

Unavailable

51044B

TUBE-ASSY

51044-1178

Unavailable

92001

BOLT,14X28.5

92001-1930

$9.59

92002

BOLT,8X20

92002-1429

$10.63

92009

SCREW,TAPPING,6MM

92009-1261

$2.29

92015

NUT

92015-1487

$3.64

92015A

NUT,6MM

92015-1758

$5.15

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92072

BAND,L=250

92072-1237

$1.55

92075

DAMPER,OIL COOLER

92075-1942

Unavailable

92075A

DAMPER

92075-277

$1.90

92150

BOLT,BANJO,14X46

92150-1324

$23.75

130

BOLT-FLANGED,6X25

130J0625

Unavailable

187

BOLT-UPSET-WSP

187G0616

Unavailable
