1996 Kawasaki GPZ 1100 ABS Cylinder Head Diagram

← All diagrams

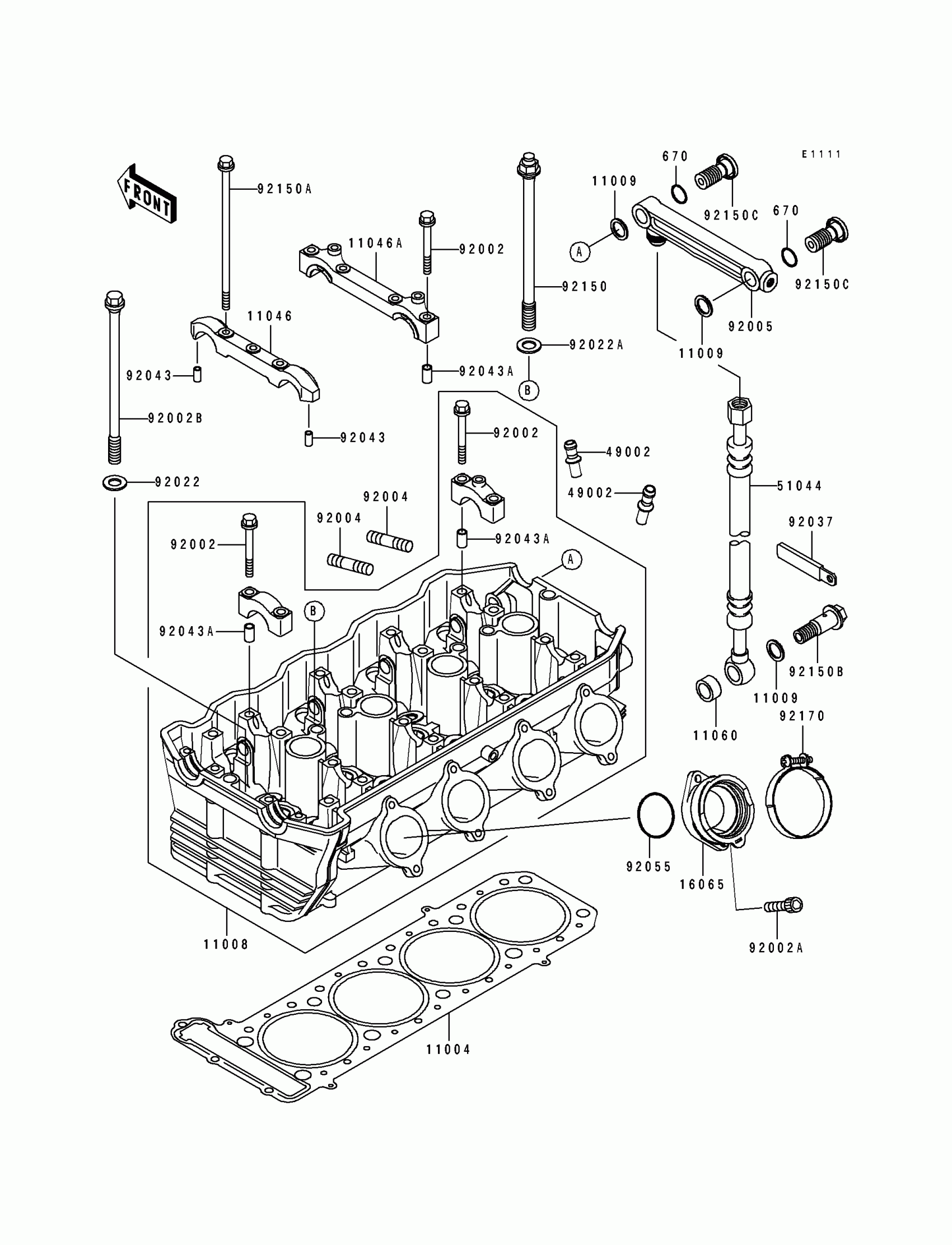

Find the part on the Cylinder Head diagram for your 1996 Kawasaki GPZ 1100 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki GPZ 1100 ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1248

1

$153.84

In stock

11008

HEAD-COMP-CYLINDER

11008-1300

1
Out of stock

11009

GASKET,14X19.5X1.4

11009-1461

1

$4.23

In stock

11046

BRACKET,CAMSHAFT,#9

11046-1150

1

$47.97

In stock

11046A

1

$47.97

In stock

11060

GASKET

11060-1369

1

$8.92

In stock

16065

HOLDER-CARBURETOR

16065-1307

1

$34.53

In stock

49002

GUIDE-VALVE

49002-1097

—

$24.53

In stock

51044

TUBE-ASSY

51044-1094

1
Out of stock

92002

BOLT,6X40

92002-1756

1
Out of stock

92002A

BOLT,SOCKET,6X16

92002-1778

1
Out of stock

92002B

BOLT,10X164

92002-1943

1
Out of stock

92004

STUD,8X22

92004-1181

1
Out of stock

92005

FITTING

92005-1277

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1

$3.88

In stock

92022A

1

$3.43

In stock

92037

CLAMP

92037-1997

1

$4.15

In stock

92043

PIN,4.2X6X12

92043-1262

1

$3.43

In stock

92043A

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92055

RING-O,43.7X1.9

92055-1401

1

$10.88

In stock

92150

BOLT,11X164

92150-1075

1

$18.51

In stock

92150A

BOLT,6X148

92150-1076

1

$8.44

In stock

92150B

BOLT,BANJO,12X40.5

92150-1077

1

$17.53

In stock

92150C

BOLT

92150-1078

1

$29.54

In stock

92170

CLAMP

92170-1066

1

$7.18

In stock

670

O RING,15MM

670B2015

1

$1.25

In stock
