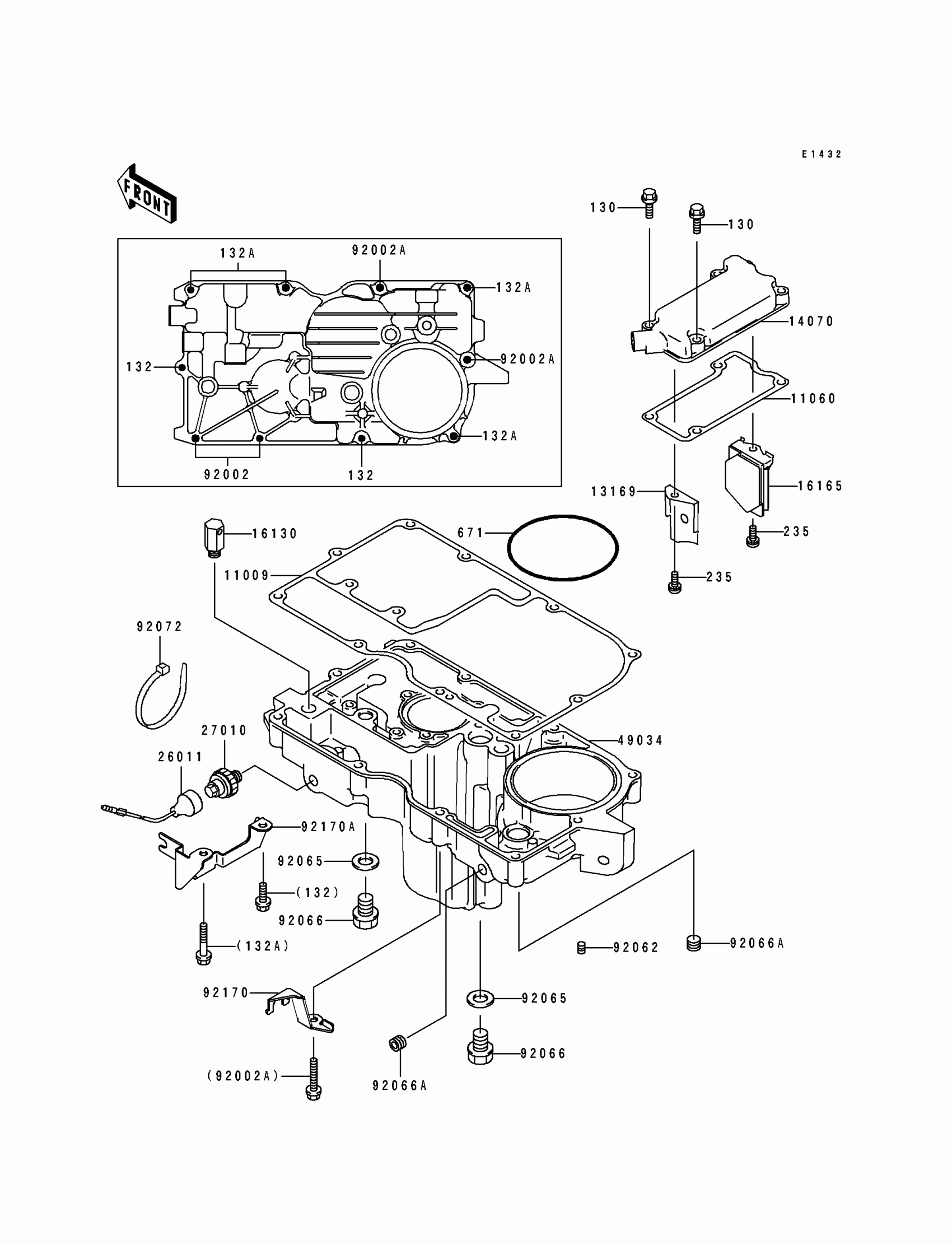

Kawasaki GPZ 1100 ABS Breather Cover/Oil Pan Diagram

Description

Price

11009

GASKET,OIL PAN

11009-1981

$22.69

11060

GASKET,BREATHER BODY

11060-1339

Unavailable

13169

PLATE,BREATHER

13169-1967

$7.47

14070

BODY-BREATHER

14070-1084

$89.85

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16165

SEPARATOR,OIL

16165-1053

$49.85

26011

WIRE-LEAD

26011-1371

$19.97

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

49034

PAN-OIL

49034-1118

$237.25

92002

BOLT,6X25

92002-1344

Unavailable

92002A

BOLT,6X40

92002-1345

$7.58

92062

NOZZLE,6X8,BLACK

92062-1079

$8.37

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066A

PLUG,PT1/8X7

92066-1342

$5.66

92072

BAND,L=202

92072-1195

$1.16

92170

CLAMP,OIL TUBE

92170-1188

$8.63

92170A

CLAMP,OIL TUBE

92170-1189

$12.64

130

BOLT-FLANGED,6X25

130P0625

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

235

SCREW-PAN-WP-CROS,6X10

235B0610

Unavailable

671

O RING,90MM

671B2590

$7.54
