Partiron

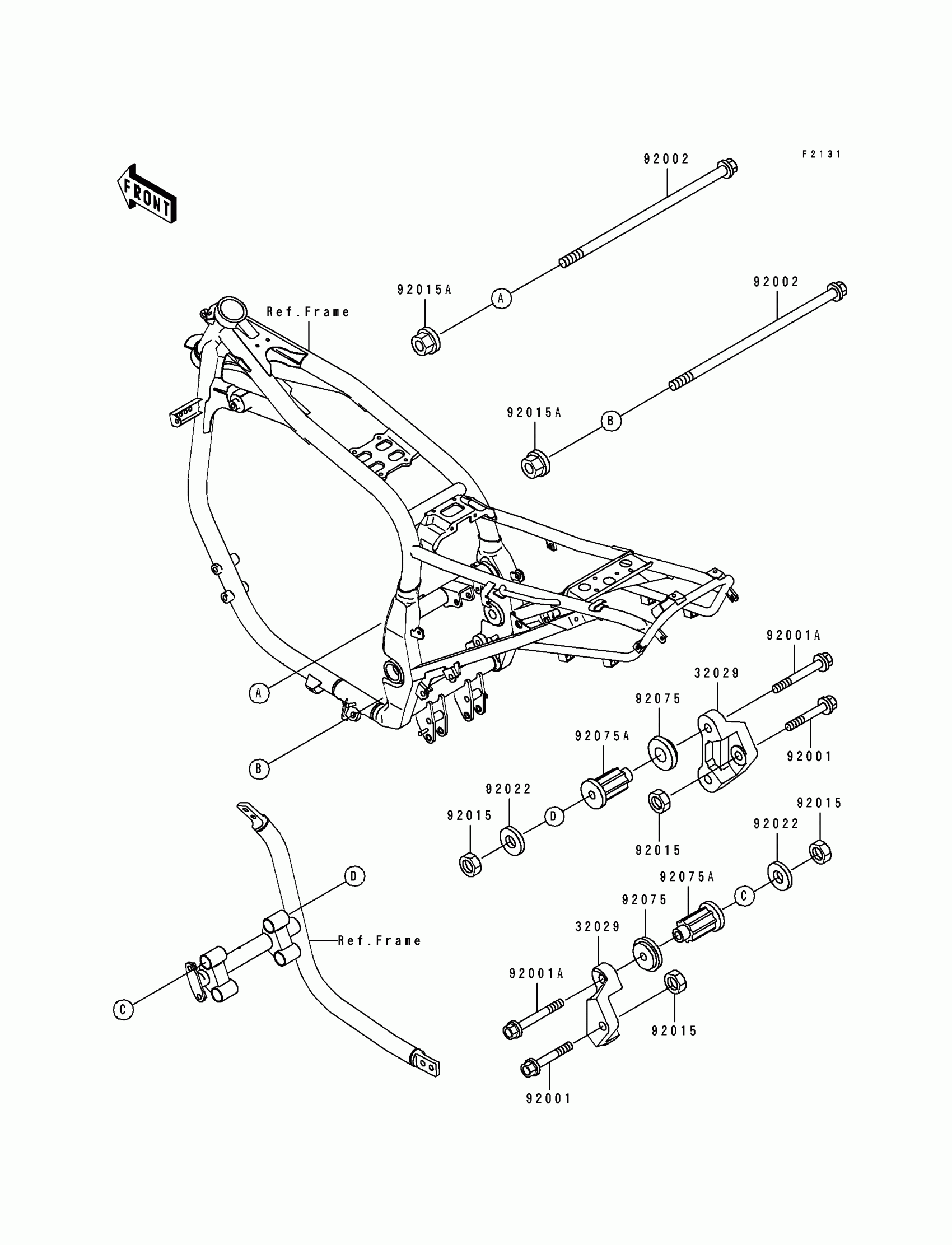

Kawasaki GPZ 1100 ABS Frame Fittings Diagram

#

Description
Price

32029

BRACKET-ENGINE

32029-1615

$69.32

92001

BOLT,FLANGED,10X60

92001-1617

$9.95

92001A

BOLT,FLANGED,10X85

92001-1619

$8.25

92002

BOLT,FLANGED,10X205

92002-1321

Unavailable

92015

NUT,10MM

92015-1429

$5.15

92015A

NUT,LOCK,10MM

92015-1522

$7.49

92022

WASHER,10.5X37X1.6

92022-1246

$7.49

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41
