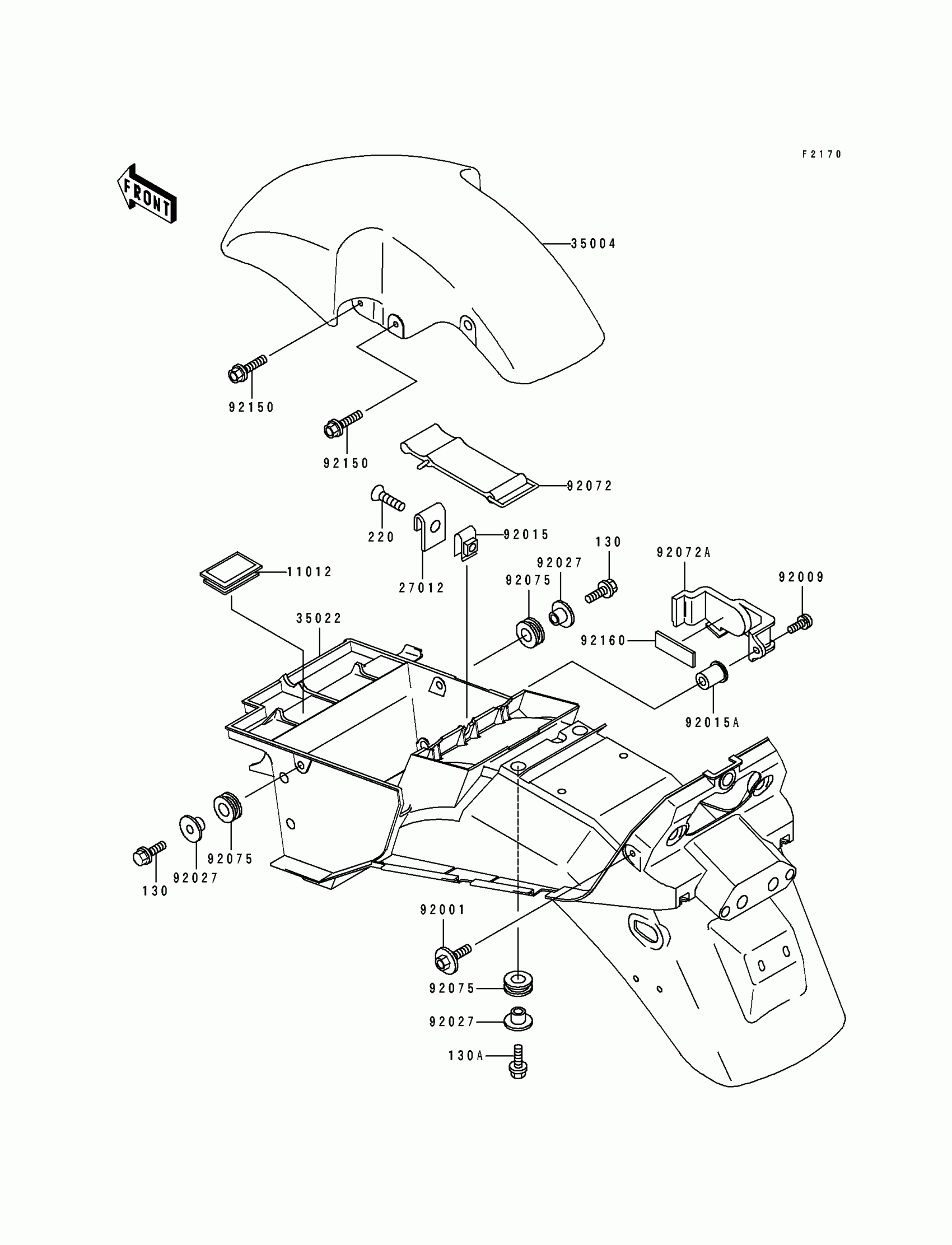

Kawasaki GPZ 1100 ABS Fenders Diagram

Description

Price

11012

CAP,TERMINAL,BATTERY(+)

11012-1939

Unavailable

27012

HOOK,BATTERY CASE

27012-1316

$10.58

35004

FENDER-FRONT,P.G.BLACK

35004-1328-RL

$236.40

35022

FENDER-COMP-REAR

35022-1309

Unavailable

92001

BOLT,6X14,BLACK

92001-1847

$3.58

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92015A

NUT

92015-1700

$6.55

92027

COLLAR,L=9.1,BLACK

92027-1935

$4.83

92072

BAND,TOOL

92072-1176

$11.84

92072A

BAND,BATTERY

92072-1318

Unavailable

92075

DAMPER

92075-1634

$3.57

92150

BOLT,6X16

92150-1909

$3.42

92160

DAMPER

92160-1075

$5.71

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED,6X18

130J0618

Unavailable

220

SCREW-PAN-CROS,6X12

220C0612

Unavailable
