1996 Kawasaki GPZ 1100 ABS Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1996 Kawasaki GPZ 1100 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

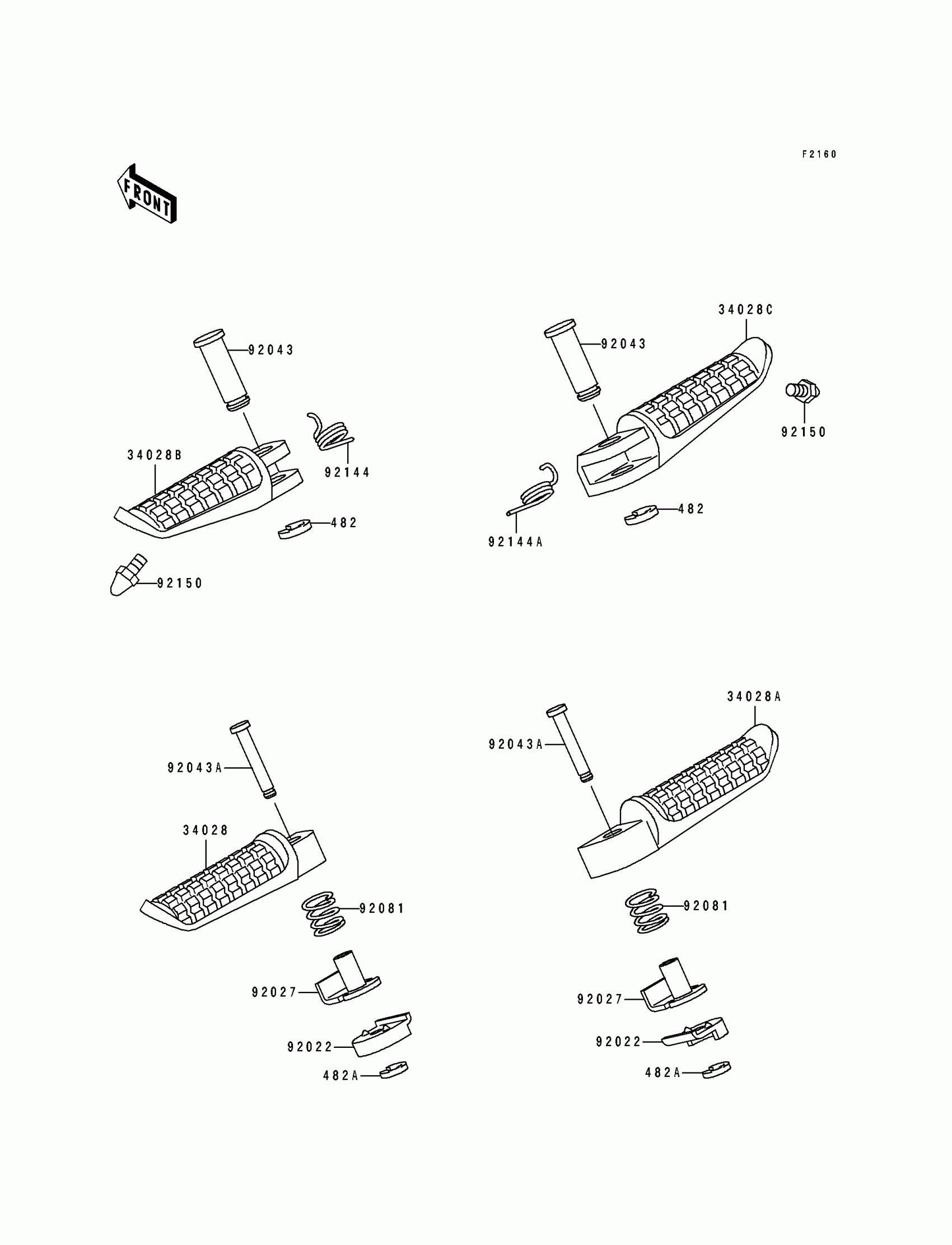

1996 Kawasaki GPZ 1100 ABS Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34028

STEP,RR,LH

34028-1191

1

$61.01

In stock

34028A

STEP,RR,RH

34028-1192

1

$67.74

In stock

34028B

STEP,FR,LH

34028-1334

1

$49.59

In stock

34028C

STEP,FR,RH

34028-1335

1

$49.59

In stock

92022

WASHER,STEP,RR

92022-1507

1
Out of stock

92027

COLLAR,STEP

92027-1732

1
Out of stock

92043

PIN,12X37

92043-1144

1
Out of stock

92043A

PIN,6X38.5

92043-1238

1
Out of stock

92081

SPRING,STEP,RR

92081-1612

1
Out of stock

92144

SPRING,STEP RETURN

92144-1567

1
Out of stock

92144A

SPRING,STEP RETURN

92144-1568

1
Out of stock

92150

BOLT,BANK SENSOR

92150-1114

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482L0100

1
Out of stock

482A

CIRCLIP-TYPE-E,5MM

482L5000

1
Out of stock
