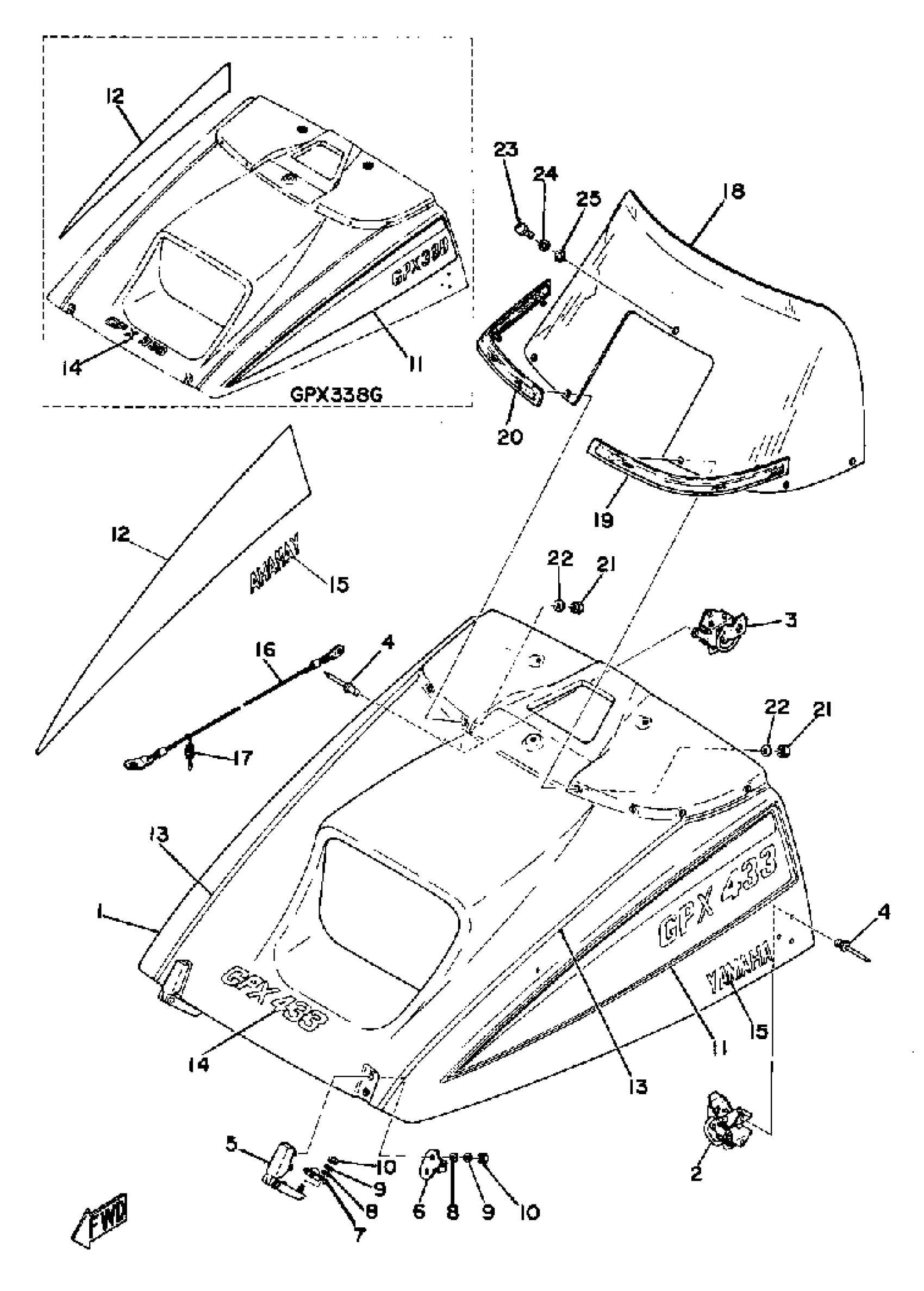

Find the part on the Shroud diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha GPX433G Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

878-W7711-00-00

1
Out of stock

2

LATCH ASSEMBLY

878-77170-01-00

1
Out of stock

3

LATCH ASSEMBLY

878-77180-01-00

1
Out of stock

4

RIVET, BLIND

(90267-48039-00)

1
Out of stock

5

HINGE ASSEMBLY

878-77140-00-00

1
Out of stock

6

PLATE, BACK UP 1

8G6-77153-00-00

1
Out of stock

7

PLATE, BACK UP 2

878-77154-00-00

1
Out of stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

ORNAMENT 1

888-77163-00-00

1
Out of stock

11

ORNAMENT 1

(889-77163-00-00)

1
Out of stock

12

ORNAMENT 2

(888-77164-00-00)

1
Out of stock

12

ORNAMENT 2

(889-77164-00-00)

1
Out of stock

13

ORNAMENT 3

(888-77169-00-00)

1
Out of stock

14

EMBLEM 6

(888-77356-00-00)

1
Out of stock

14

EMBLEM 6

(889-77356-00-00)

1
Out of stock

15

EMBLEM 7

(888-77357-00-00)

1
Out of stock

16

STOPPER, SHROUD

(878-77118-01-00)

1
Out of stock

17

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

18

WINDSHIELD

(888-77210-00-00)

1
Out of stock

19

TRIM 3

878-77215-00-00

1
Out of stock

20

TRIM 4

(878-77216-00-00)

1
Out of stock

21

NUT, SELF-LOCKING

90185-05028-00

1
Out of stock

22

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

23

SCREW, BINDING

98907-05020-00

—

$6.18

In stock

24

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

25

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock
