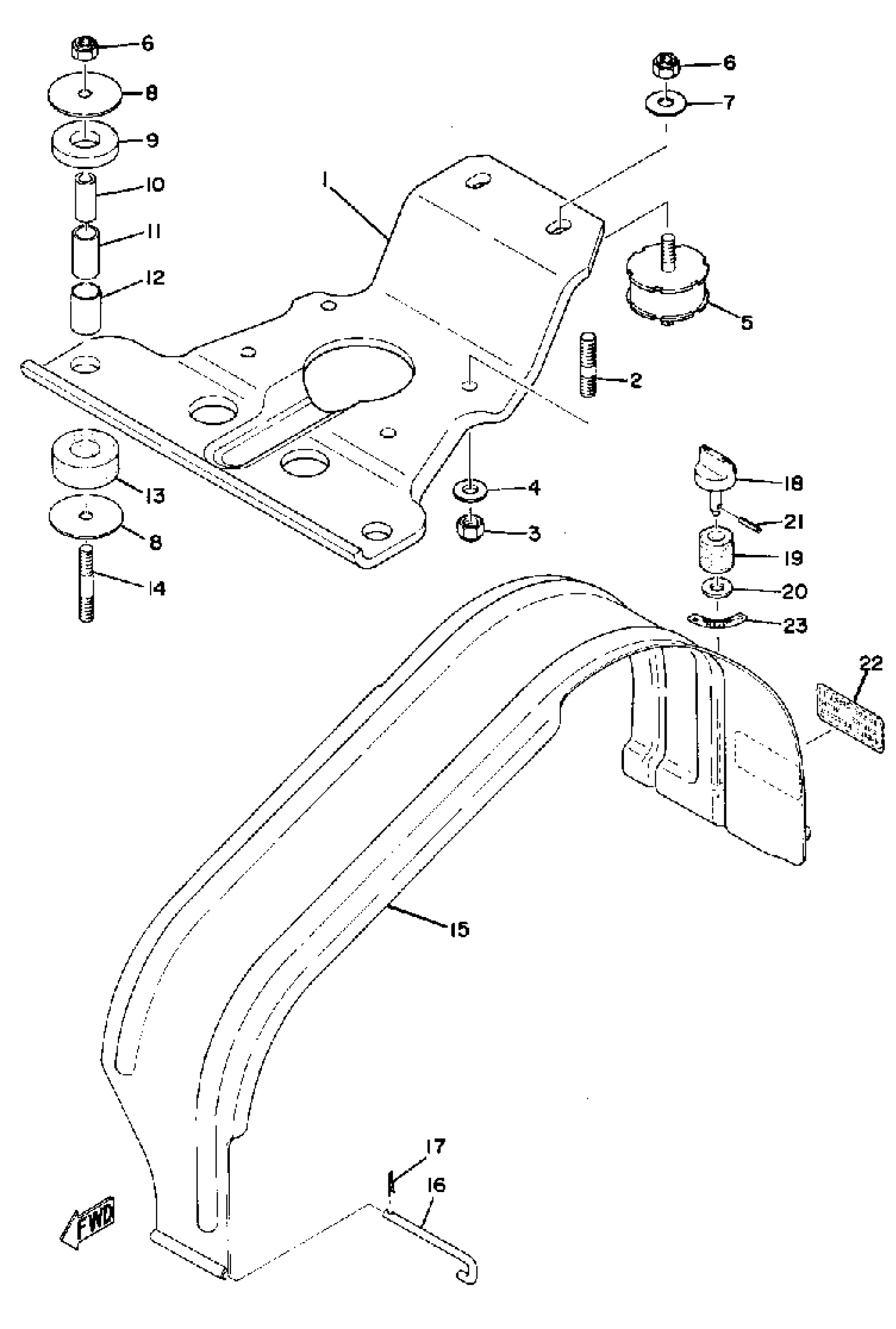

Find the part on the Engine Bracket - Drive Guard diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha GPX433G Engine Bracket - Drive Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(888-21411-00-00)

1
Out of stock

2

BOLT, STUD

90116-10132-00

1
Out of stock

3

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

4

WASHER, PLATE(8BV)

90201-100S7-00

1

$9.75

In stock

5

DAMPER 2

857-21486-00-00

1
Out of stock

6

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

7

WASHER, PLATE(8BV)

90201-100S7-00

1

$9.75

In stock

8

WASHER (888)

90201-10151-00

—

$3.94

In stock

9

DAMPER, RUBBER 1

(888-21485-00-00)

1
Out of stock

10

COLLAR

(90387-10472-00)

1
Out of stock

11

BUSH, SPEC''L RUBBER

(90385-15023-00)

1
Out of stock

12

COLLAR

90387-19473-00

1
Out of stock

13

DAMPER 2

888-21486-00-00

1
Out of stock

14

BOLT, STUD

(95611-10360-00)

1
Out of stock

15

GUARD, DRIVE

(878-77311-00-00)

1
Out of stock

16

PIN, SPEC''L SHAPE

90249-06027-00

1
Out of stock

17

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

18

KNOB

(829-77324-00-00)

1
Out of stock

19

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

20

WASHER, PLATE

90201-08104-00

1
Out of stock

21

PIN, SPRING (91609-40025-00)

91609-40024-00

1
Out of stock

22

EMBLEM 10

(829-77365-00-00)

1
Out of stock

23

EMBLEM 11

(829-77366-00-00)

1
Out of stock
