1975 Yamaha GPX433G Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

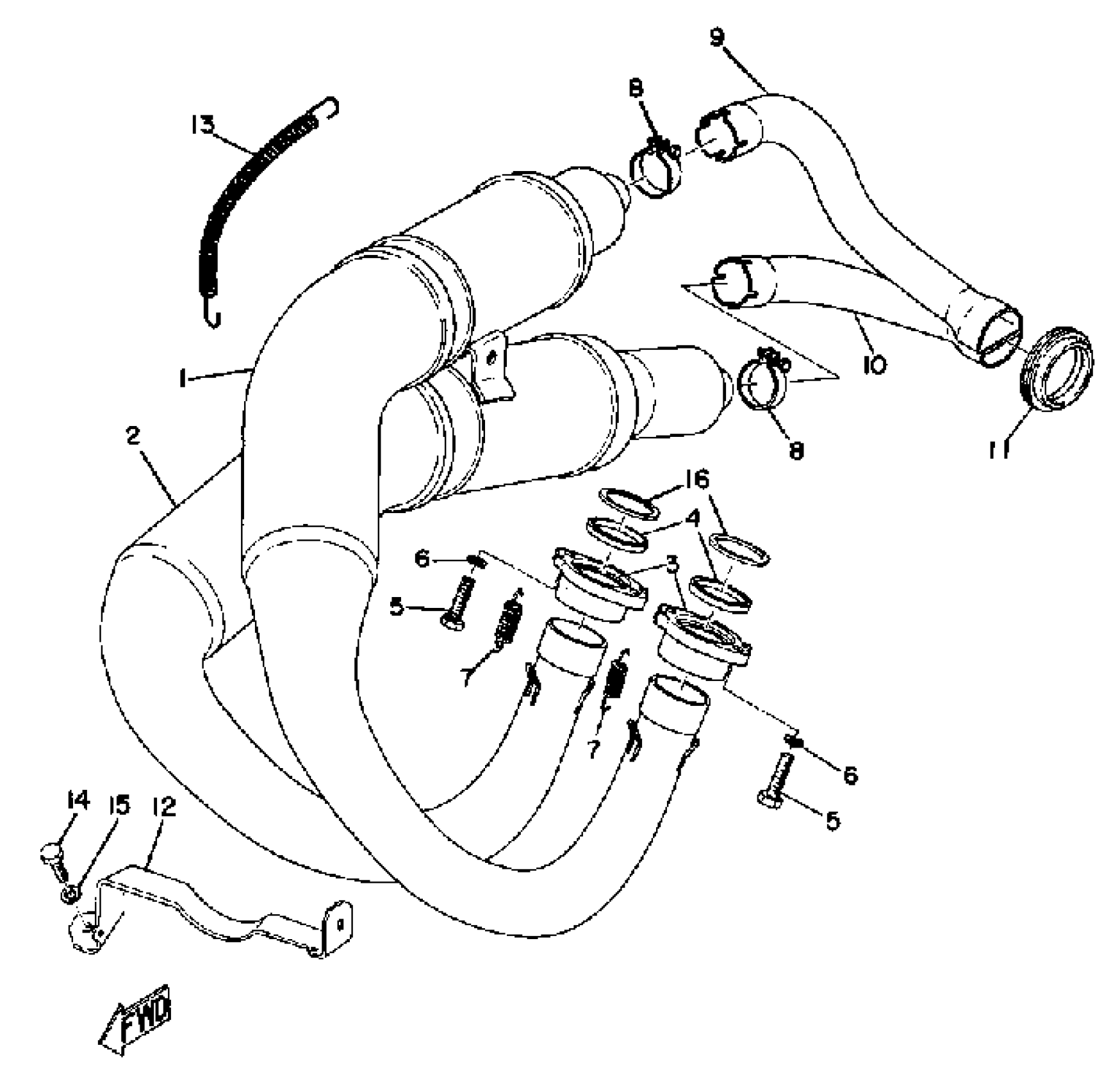

1975 Yamaha GPX433G Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(888-14610-01-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(889-14610-00-00)

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R

(888-14620-01-00)

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R

(889-14620-00-00)

1
Out of stock

3

NUT, RING

(888-14612-01-00)

1
Out of stock

3

NUT, RING

(889-14612-00-00)

1
Out of stock

4

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

5

BOLT (682)

97013-08025-00

1

$6.80

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

SPRING, HOOK (888)

90506-20115-00

—
Out of stock

8

CLAMP, HOSE

90460-39038-00

1
Out of stock

9

PIPE, TAIL

(879-14784-00-00)

1
Out of stock

10

PIPE, TAIL 2

879-14795-00-00

1
Out of stock

11

PROTECTOR, MUFF 1

878-14718-01-00

1
Out of stock

12

STAY, MUFFLER 1

(888-14771-01-00)

1
Out of stock

13

SPRING, TENSION (8BU1)

90506-16494-00

—

$6.22

In stock

14

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

RING

888-14633-00-00

1

$6.46

In stock
