1975 Yamaha GPX433G Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

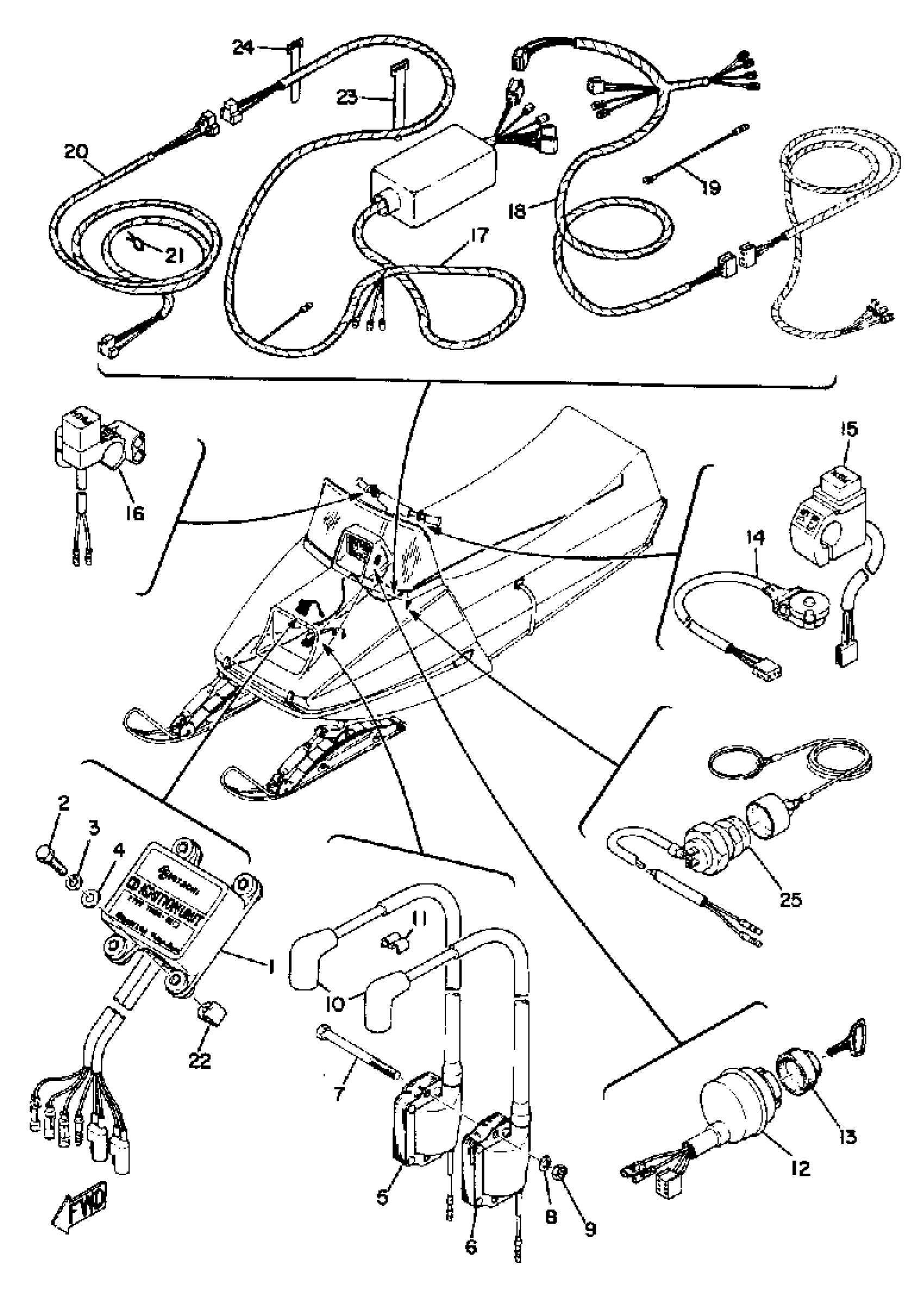

1975 Yamaha GPX433G Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

888-85540-10-00

1
Out of stock

2

BOLT, HEXAGON (97201-05025)

97301-05025-00

1
Out of stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

5

IGNITION COIL ASSEMBLY

(878-82310-30-00)

1
Out of stock

6

IGNITION COIL ASSEMBLY

(857-82320-30-00)

1
Out of stock

7

BOLT(62J)

97013-06070-00

—

$3.37

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

11

CLAMP(56R)

90464-60067-00

1
Out of stock

12

MAIN SWITCH ASSEMBLY

898-82508-20-00

1
Out of stock

13

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

14

STOP SWITCH ASSEMBLY

878-82530-00-00

1
Out of stock

15

BEAM SWITCH ASSEMBLY

878-83950-00-00

1
Out of stock

16

SWITCH, HANDLE 1

(878-83976-01-00)

1
Out of stock

17

WIRE HARNESS ASSEMBLY

(878-82590-20-00)

1
Out of stock

18

WIRE HARNESS ASSEMBLY 2

(888-82580-20-00)

1
Out of stock

19

WIRE, EARTH LEAD

(838-82519-00-00)

1
Out of stock

20

CORD, HEADLIGHT

878-84359-00-00

1
Out of stock

21

CLAMP

(90465-06023-00)

1
Out of stock

22

CLAMP

90465-06013-00

1
Out of stock

23

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

24

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

25

STOP SWITCH ASSEMBLY

8J7-82550-01-00

1
Out of stock
