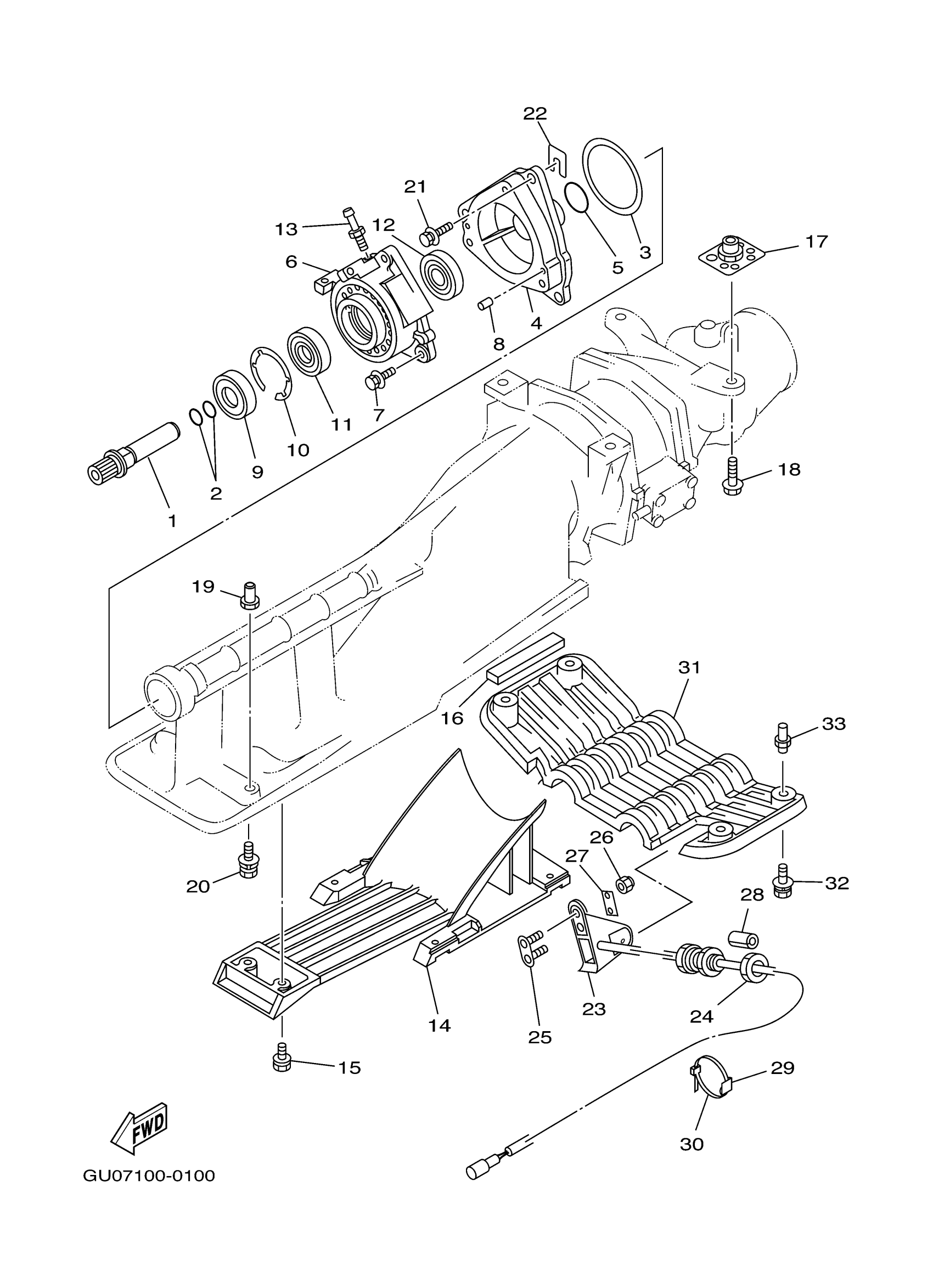

Yamaha GP800Y (GP800) GU07 2000 JET UNIT 2 Diagram

#

Description
Price

1

SHAFT, COUPLOR

66E-51323-00-00

$569.68

2

O-RING(6R7)

93210-17MA4-00

$4.65

3

SEAL

6K8-45127-00-00

$15.49

4

HOUSING, BEARING

65A-G5331-00-00

Unavailable

5

O-RING

93210-35M72-00

$11.39

6

HOUSING, BEARING

65U-45332-02-94

$256.05

7

BOLT, WITH WASHER

90119-08841-00

$1.01

8

PIN, DOWEL (614)

93606-12019-00

$3.05

9

OIL SEAL(62T)

93101-25M55-00

$24.36

10

CIRCLIP

93430-47M04-00

$5.18

11

BEARING(62G)

93306-205U6-00

$55.29

12

OIL SEAL

93101-24001-00

$30.69

13

NIPPLE, HOSE

61L-45378-00-00

$11.35

14

SCREEN, INTAKE

63N-51333-02-94

Unavailable

15

BOLT, WITH WASHER

90119-069UC-00

$3.37

16

. FELT, PACKING

63N-51368-00-00

Unavailable

17

NUT

90179-10800-00

Unavailable

18

BOLT, WITH WASHER

90119-109U8-00

Unavailable

19

NUT

90179-06800-00

Unavailable

20

BOLT, WITH WASHER

90119-06896-00

$5.03

21

BOLT, WITH WASHER

90119-08907-00

$5.45

22

SHIM (0.5)

GD0-U7249-00-05

$1.94

22

SHIM (0.5)

GD0-U7249-00-05

$1.94

23

SPEED SENSOR

GP7-U8K31-02-00

Unavailable

24

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

25

BRACKET, SPEED SENSOR

GP7-U8K33-00-00

Unavailable

26

NUT, NYLON

9572R-06300-00

$2.80

27

PLATE, SPEED SENSOR

GP7-U8K35-00-00

Unavailable

28

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

29

BASE, CLAMP

90600-900U6-00

Unavailable

30

CLAMP(JN6)

90464-40825-00

Unavailable

31

PLATE 2

GU0-U273B-00-00

Unavailable

32

BOLT, WITH WASHER

90119-08829-00

$3.88

33

NUT

90179-08815-00

Unavailable
