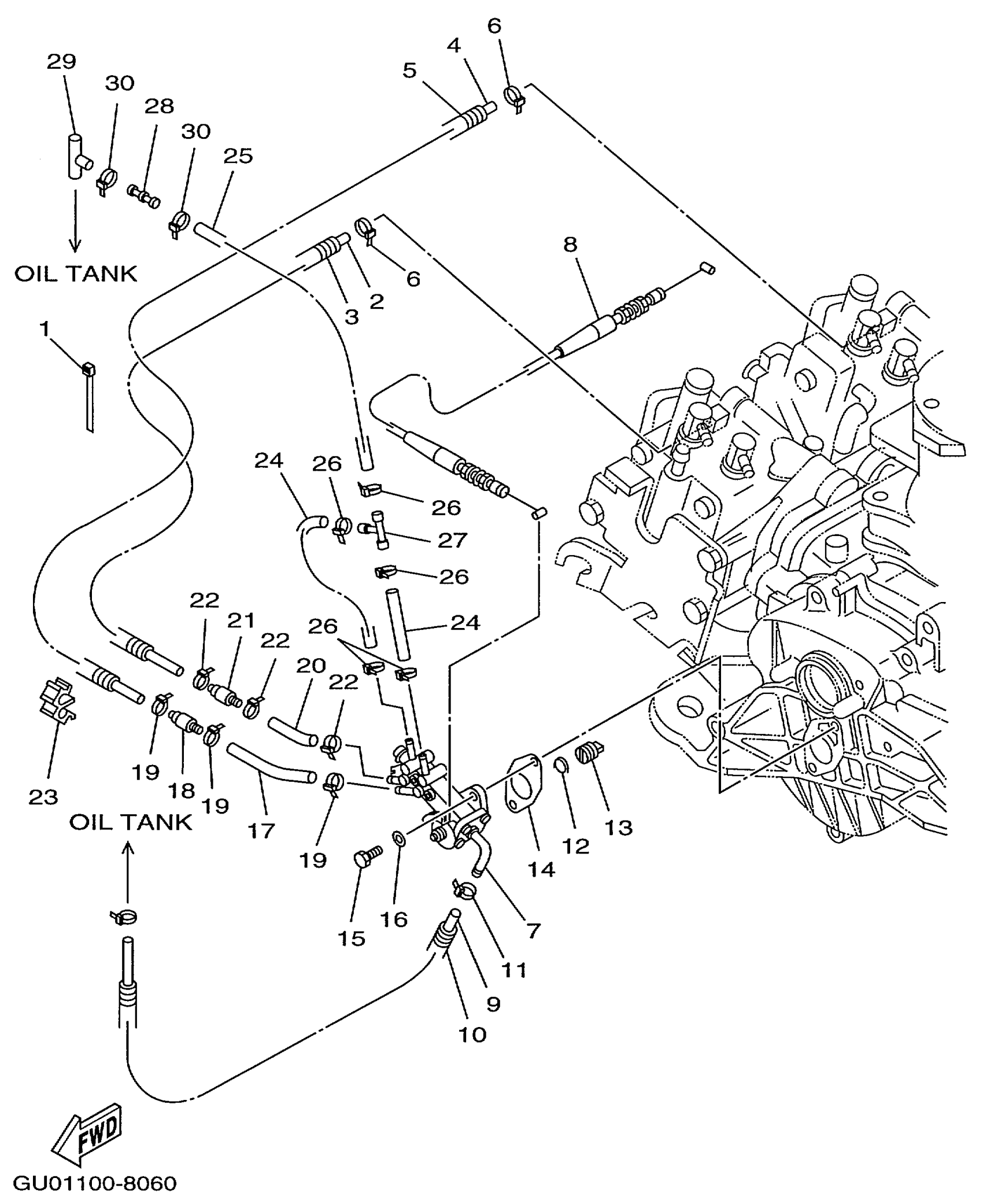

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 OIL PUMP Diagram

#

Description
Price

1

CLIP

4KM-14137-00-00

$5.18

2

HOSE

90446-07M96-00

$11.35

3

HOSE

90446-10MA0-00

$16.99

4

HOSE

90446-07M97-00

$11.35

5

HOSE

90446-10MA1-00

$22.71

6

CLIP, PIPE

35H-14139-00-00

$4.37

7

OIL INJECTION PUMP ASSY

66E-13200-02-00

Unavailable

8

PUMP CABLE ASSY

66E-26320-00-00

Unavailable

9

HOSE (L700)

90445-117F2-00

$22.86

10

HOSE

90446-17M75-00

Unavailable

11

CLAMP

90465-10098-00

$1.68

12

SPRING

66E-13469-00-00

Unavailable

13

JOINT

65U-13132-00-00

$48.47

14

GASKET, PUMP CASE

63M-13116-00-00

$2.80

15

BOLT(7U8)

97080-06020-00

$3.63

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

HOSE(62T)

90446-07M48-00

Unavailable

18

VALVE, CHECK

6R3-13183-10-00

$39.61

19

CLAMP

90465-10098-00

$1.68

20

HOSE(62T)

90446-07M48-00

Unavailable

21

VALVE, CHECK

6R3-13183-10-00

$39.61

22

CLAMP

90465-10098-00

$1.68

23

CLAMP

90464-07M20-00

Unavailable

24

HOSE (L200)

90445-07MA3-00

$6.86

25

HOSE (L390)

90445-07M90-00

$6.59

26

CLAMP

90465-10098-00

$1.68

27

PIPE, JOINT 3

6E0-24378-00-00

$6.00

28

JOINT

63M-13132-00-00

$13.99

29

PIPE, JOINT 3

63M-24378-00-00

$5.91

30

CLAMP

90465-10098-00

$1.68
