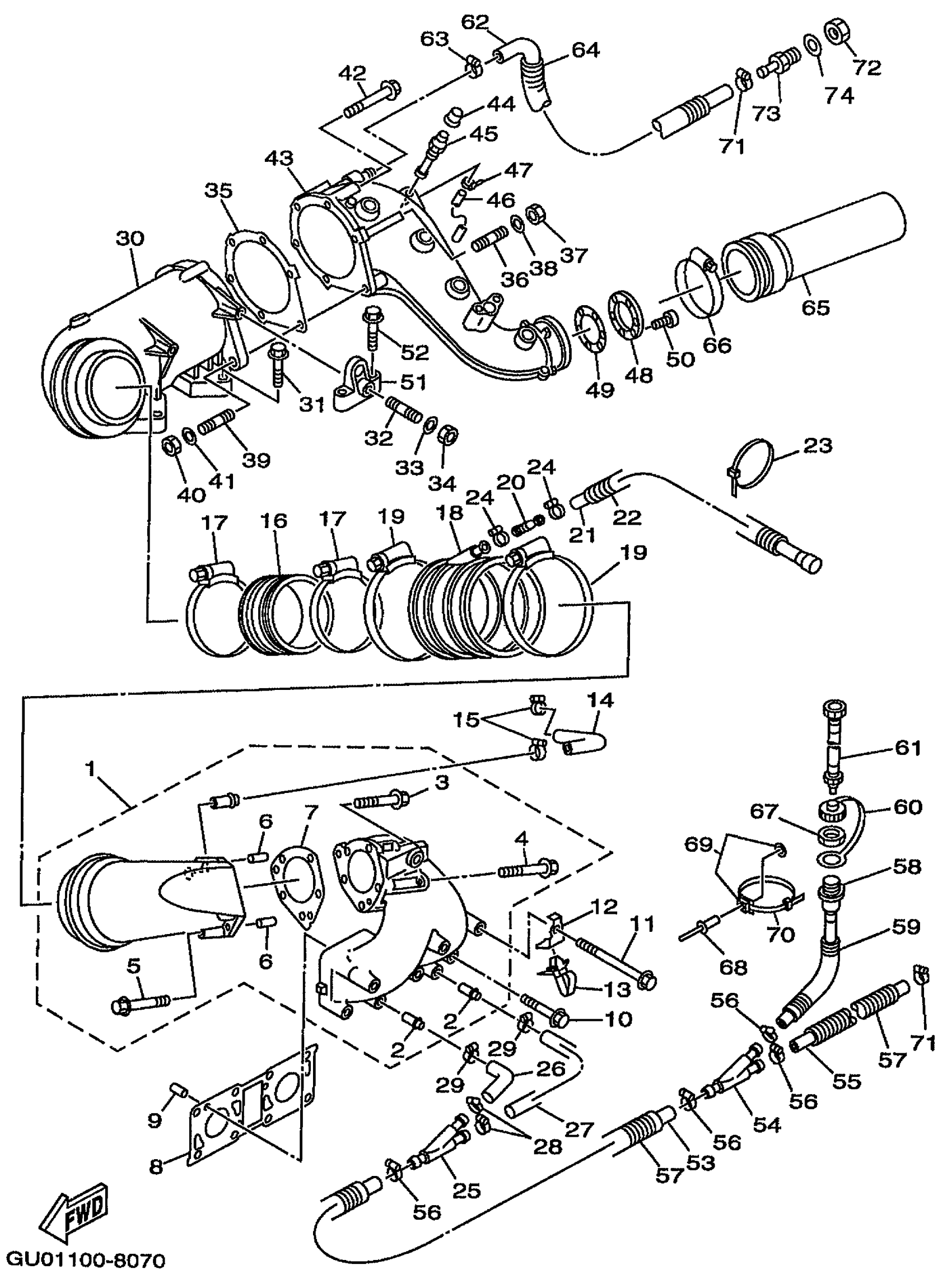

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER COMP. 1

66E-W1471-00-8P

$571.20

2

. NIPPLE

6K8-51129-00-00

$9.62

3

BOLT, FLANGE

90105-08M83-00

Unavailable

4

BOLT, WASHER BASED

90105-08M84-00

$8.24

5

BOLT, FLANGE

90105-08M66-00

Unavailable

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

. GASKET, MUFFLER DAMPER 2

66E-14749-00-00

$33.99

8

. GASKET, EXHAUST PIPE

66E-14613-00-00

$39.38

9

PIN, DOWEL (614)

93606-12019-00

$3.05

10

BOLT, WASHER BASED

90105-10M85-00

$7.65

11

BOLT, WASHER BASED

90105-10M86-00

$7.32

12

CLAMP

90465-20M78-00

$7.97

13

CLAMP(62T)

90465-12M56-00

$6.64

14

HOSE 1

66E-12576-00-00

Unavailable

15

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

16

JOINT, EXHAUST 2

66E-14625-00-00

$53.75

17

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

18

JOINT, EXHAUST 1

66E-14615-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

20

JOINT, HOSE 4

60E-12594-00-00

$4.09

21

HOSE 6

66E-12589-00-00

Unavailable

22

HOSE(65R)

90446-20M70-00

Unavailable

23

CLAMP(6E8)

90465-13M39-00

Unavailable

24

HOSE CLAMP ASSY

90450-18M09-00

$9.82

25

JOINT, HOSE 1

63M-12581-00-00

Unavailable

26

HOSE 2

66E-12577-00-00

Unavailable

27

HOSE 4

66E-12579-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-18M09-00

$9.82

29

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

30

MUFFLER 2

66E-14721-10-8S

$413.62

31

BOLT, WASHER BASED

90105-10M82-00

Unavailable

32

BOLT, STUD

90116-10M66-00

Unavailable

33

WASHER, PLATE

92990-10600-00

$2.57

34

NUT(624)

95380-10600-00

Unavailable

35

GASKET, EXHAUST OUTER COVER

66E-41124-10-00

$53.99

36

BOLT, STUD

90116-08M64-00

Unavailable

37

NUT(6L2)

95333-08600-00

Unavailable

38

.. WASHER, PLATE

92990-08600-00

$2.17

39

BOLT, STUD

90116-10M65-00

Unavailable

40

NUT(624)

95380-10600-00

Unavailable

41

WASHER, PLATE

92990-10600-00

$2.57

42

BOLT, FLANGE

90105-08M83-00

Unavailable

43

OUTER COVER, EXHAUST

66E-41123-10-94

Unavailable

44

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

45

NIPPLE, GREASE

61L-5169A-00-00

$7.40

46

HOSE (L445)

90445-09M21-00

Unavailable

47

CLAMP

90465-10098-00

$1.68

48

SPACER

66E-14763-10-94

Unavailable

49

. GASKET, EXHAUST PIPE

66E-14623-00-00

$4.09

50

SCREW, WITH WASHER

97985-06216-00

$3.07

51

STAY, MUFFLER 1

66E-14771-01-00

Unavailable

52

BOLT, WITH WASHER

97513-10550-00

Unavailable

53

HOSE

90445-18M16-00

Unavailable

54

JOINT, HOSE 1

63M-12581-00-00

Unavailable

55

HOSE

90445-18M16-00

Unavailable

56

HOSE CLAMP ASSY

90450-18M09-00

$9.82

57

HOSE

90446-24M81-00

Unavailable

58

JOINT ASSY

63M-12580-00-00

$99.98

59

HOSE (L420)

90446-24M89-00

$9.08

60

CAP,1

682-84385-01-00

$9.08

61

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

62

HOSE 3

66E-12578-00-00

Unavailable

63

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

64

HOSE (L800)

90446-27M95-00

$11.35

65

PIPE, OUTLET

66E-14752-00-00

Unavailable

66

CLAMP, HOSE

90460-90M11-00

$42.60

67

NUT

EU0-61652-00-00

$11.48

68

RIVET, BLIND

90267-48802-00

$1.98

69

CLAMP COMP (EU0)

90600-91736-00

Unavailable

70

BAND (EU0)

90601-20009-00

$6.36

71

BAND, HOSE 18

90601-118UF-00

$2.07

72

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

73

THROUGH HULL

90604-80798-00

Unavailable

74

. PACKING (C)

EU0-61438-00-00

$8.32
