1998 Yamaha Wave Runner GP800W (GP800W) Engine Hatch 2 Diagram

← All diagrams

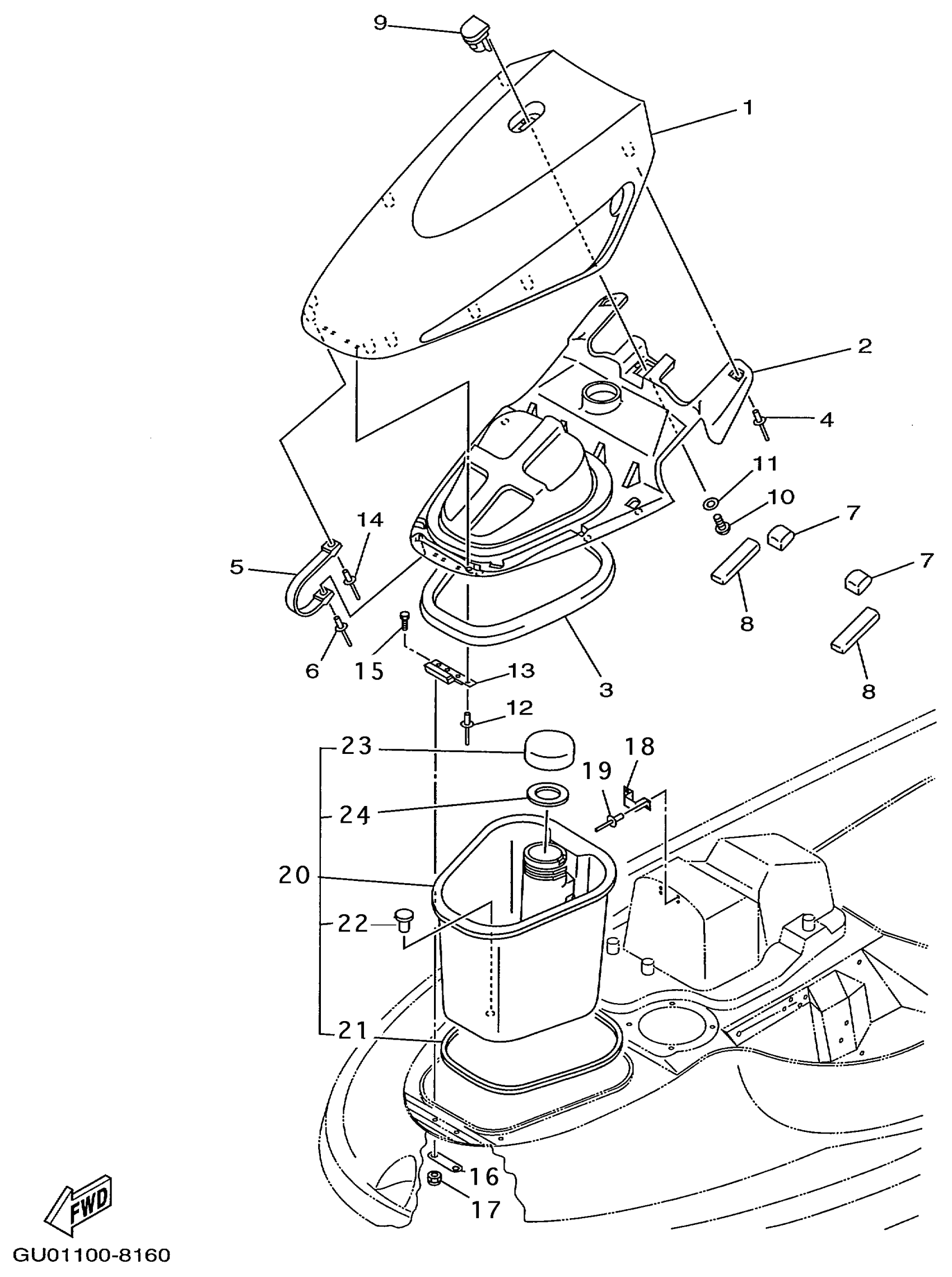

Find the part on the Engine Hatch 2 diagram for your 1998 Yamaha Wave Runner GP800W (GP800W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP800W (GP800W) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, ENGINE ROOM

GP7-U517B-20-P0

1
Out of stock

2

VENTILATOR COVER COMP., 2

GP7-U2103-00-00

1
Out of stock

3

PACKING 4

GP7-U266C-00-00

1
Out of stock

4

RIVET, BLIND

90267-48809-00

1

$2.38

In stock

5

SUPPORT, LID

GP7-6517P-01-00

1

$3.95

In stock

6

RIVET, BLIND

90267-489UE-00

1
Out of stock

7

DAMPER 1

GP7-U515D-02-00

1
Out of stock

8

DAMPER 2

GP7-U515E-00-00

1
Out of stock

9

LOCK, LID

F1K-6517C-00-00

1

$74.99

In stock

10

SCREW, WITH WASHER

90159-059U2-00

1
Out of stock

11

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

1

$3.32

In stock

13

HINGE, LID

GP7-6517D-10-00

1
Out of stock

14

RIVET, 1

F3J-U516R-00-00

1

$2.69

In stock

15

BOLT(7U8)

97080-06020-00

1
Out of stock

16

PLATE, HINGE LID

GP7-U518E-00-00

1
Out of stock

17

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

18

KEEP, LOCK

GP7-6517F-10-00

1

$11.99

In stock

19

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

20

BOW LOCKER ASSY

GP7-U475A-00-00

1
Out of stock

21

. PACKING, 6

GP7-U266E-03-00

1
Out of stock

22

. PLUG, BLIND

90605-502U1-00

1

$2.46

In stock

23

. CAP, CASE

EW2-U5912-01-00

1
Out of stock

24

PACKING, CASE

EW2-U5913-01-00

1
Out of stock
