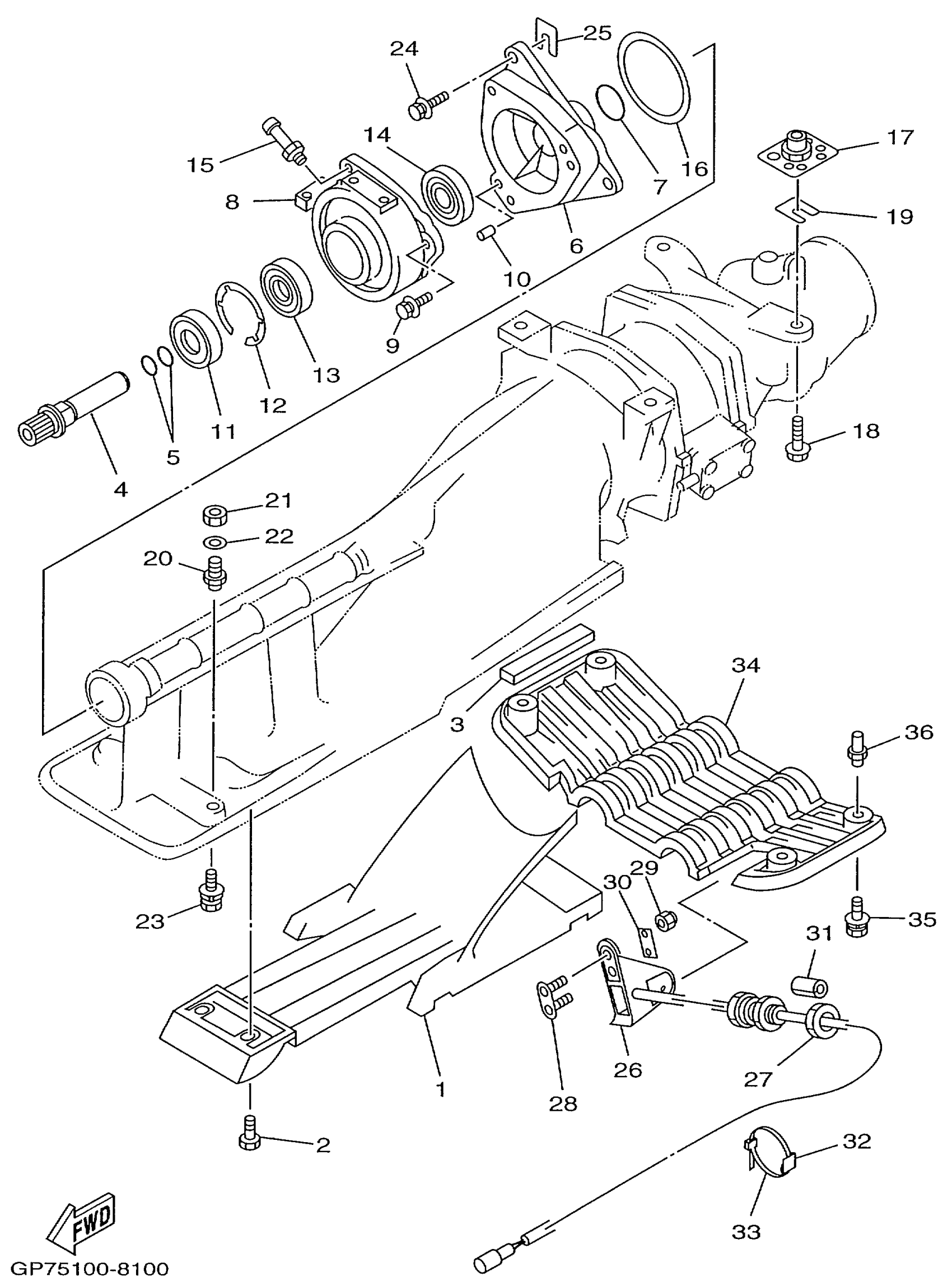

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 JET UNIT 2 Diagram

#

Description
Price

1

SCREEN, INTAKE

63N-51333-02-94

Unavailable

2

BOLT, WITH WASHER

90119-069UC-00

$3.37

3

. FELT, PACKING

63N-51368-00-00

Unavailable

4

SHAFT, COUPLER

63M-51323-01-00

$360.59

5

O-RING(6R7)

93210-17MA4-00

$4.65

6

HOUSING, BEARING

65A-G5331-00-00

Unavailable

7

O-RING

93210-35M72-00

$11.39

8

HOUSING, BEARING

65U-45332-02-94

$256.05

9

BOLT, WITH WASHER

90119-08841-00

$1.01

10

PIN, DOWEL (614)

93606-12019-00

$3.05

11

OIL SEAL(62T)

93101-25M55-00

$24.36

12

CIRCLIP

93430-47M04-00

$5.18

13

BEARING(62G)

93306-205U6-00

$55.29

14

OIL SEAL

93101-24001-00

$30.69

15

NIPPLE, HOSE

61L-45378-00-00

$11.35

16

SEAL

6K8-45127-00-00

$15.49

17

NUT

90179-10925-00

$5.00

18

BOLT, WITH WASHER

90119-109U8-00

Unavailable

19

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

19

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

19

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

19

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

20

NUT(FJ0)

90179-06947-00

Unavailable

21

NUT(624)

95380-10600-00

Unavailable

22

WASHER, PLATE

92990-10600-00

$2.57

23

BOLT, WITH WASHER

90119-06896-00

$5.03

24

BOLT, WITH WASHER

90119-08907-00

$5.45

25

SHIM (0.5)

GD0-U7249-00-05

$1.94

26

SPEED SENSOR

GP7-U8K31-02-00

Unavailable

27

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

28

BRACKET, SPEED SENSOR

GP7-U8K33-00-00

Unavailable

29

NUT, SELF-LOCKING

95720-06300-00

$1.82

30

PLATE, SPEED SENSOR

GP7-U8K35-00-00

Unavailable

31

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

32

BASE, CLAMP

90600-900U6-00

Unavailable

33

CLAMP(JN6)

90464-40825-00

Unavailable

34

PLATE 2

GU0-U273B-00-00

Unavailable

35

BOLT, WITH WASHER

90119-08829-00

$3.88

36

NUT

90179-08815-00

Unavailable
