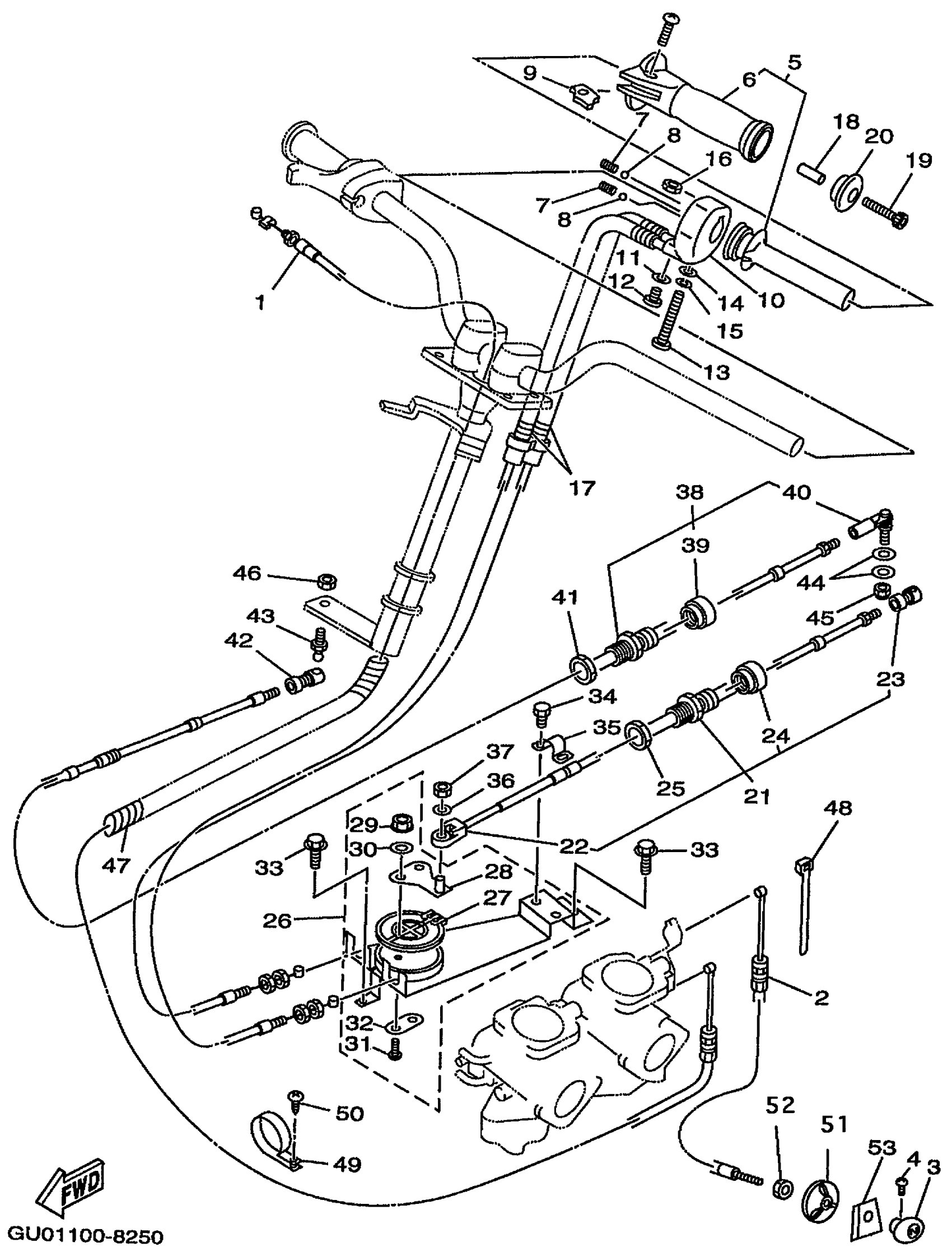

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

66E-67252-00-00

$134.83

2

CABLE, CHOKE

66E-67242-00-00

Unavailable

3

KNOB, CHOKE

66E-41271-00-00

Unavailable

4

SCREW

90149-03M15-00

$1.44

5

GRIP, HANDLE ASSY.

GP7-U157A-00-00

$454.53

6

. GRIP, HANDLE

GP7-U155C-00-00

$58.88

7

SPRING

GP7-U152P-00-00

$12.86

8

BALL

GP7-U152R-00-00

Unavailable

9

LEVER ASSY

GP7-U151M-00-00

Unavailable

10

HOUSING ASSY

GP7-U152M-00-00

Unavailable

11

WASHER, PLAIN (646)

92990-04600-00

$0.91

12

SCREW, BINDING (M01)

98980-04010-00

$5.02

13

SCREW PAN HEAD

98580-06565-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

WASHER, SPRING

92995-06100-00

$2.95

16

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

17

CABLE, NOZZLE CONTROL 2

GP7-U153D-00-00

Unavailable

18

COLLAR

90387-05800-00

$3.86

19

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

20

GRIP, END

GP7-U155F-00-00

$2.88

21

CABLE,NOZZLE CONTROL 3

GP7-6153E-09-00

Unavailable

22

. END, CABLE

GH1-U046C-00-00

Unavailable

23

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

24

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

25

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

26

REMOTE CONTROL, NOZZLE 2

GP7-U153J-00-00

Unavailable

27

. WHEEL

GP7-U153N-00-00

Unavailable

28

. ARM ASSY

GP7-U153R-00-00

Unavailable

29

NUT, FLANGE

95720-05300-00

$1.28

30

WASHER, TOOTH

92990-05300-00

Unavailable

31

SCREW, PAN HEAD(6A1)

97885-05020-00

$3.65

32

. WASHER

GP7-U153P-00-00

Unavailable

33

BOLT, WITH WASHER

90119-069UJ-00

$2.80

34

BOLT(GH1)

97080-06012-00

$2.56

35

CLAMP, CABLE

GH1-U043H-00-00

Unavailable

36

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

37

NUT, FLANGE

95780-06300-00

$7.14

38

CABLE, STEERING

GP7-U1481-00-00

Unavailable

39

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

40

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

41

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

42

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

43

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

44

WASHER, PLATE

90201-06906-00

$2.80

45

NUT(650)

95380-06700-00

Unavailable

46

NUT, SELF-LOCKING

95720-06300-00

$1.82

47

SPI-RAP 25

90699-38U03-00

Unavailable

48

BAND

90601-200U1-00

$2.77

49

CLIP, NYLON 18

90600-918U3-00

Unavailable

50

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

51

. NUT, COMPRESSION

GP7-U724E-00-00

Unavailable

52

. NUT

GA9-U724F-01-00

Unavailable

53

PLATE,CHOKE

GJ1-6824D-01-00

$13.99
