1973 Yamaha GP643B OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1973 Yamaha GP643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

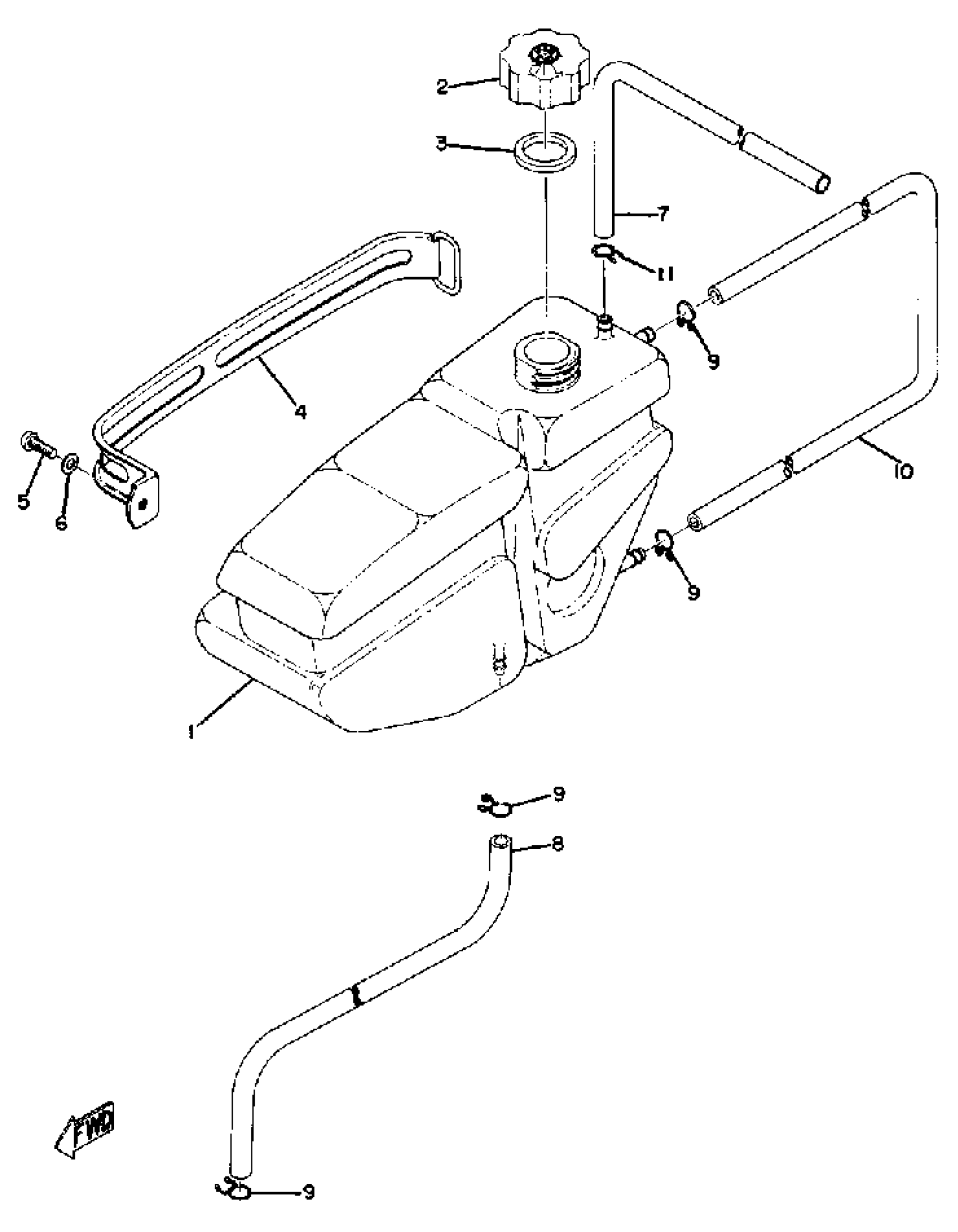

1973 Yamaha GP643B OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

(838-21751-00-00)

1
Out of stock

2

BODY, CAP

296-21771-62-00

1
Out of stock

3

GASKET, CAP

296-21772-00-00

1
Out of stock

4

BAND, TANK FITTING

810-21776-00-00

1
Out of stock

5

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

6

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

7

PIPE, OIL TNK BRTHR

(810-21745-00-00)

1
Out of stock

8

HOSE

90446-09015-00

1
Out of stock

9

CLIP (8L2)

90467-08017-00

1

$7.51

In stock

10

GAUGE, OIL

(847-21792-01-00)

1
Out of stock

11

CLAMP, DAMPER

(844-21755-00-00)

1
Out of stock
