1973 Yamaha GP643B Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1973 Yamaha GP643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

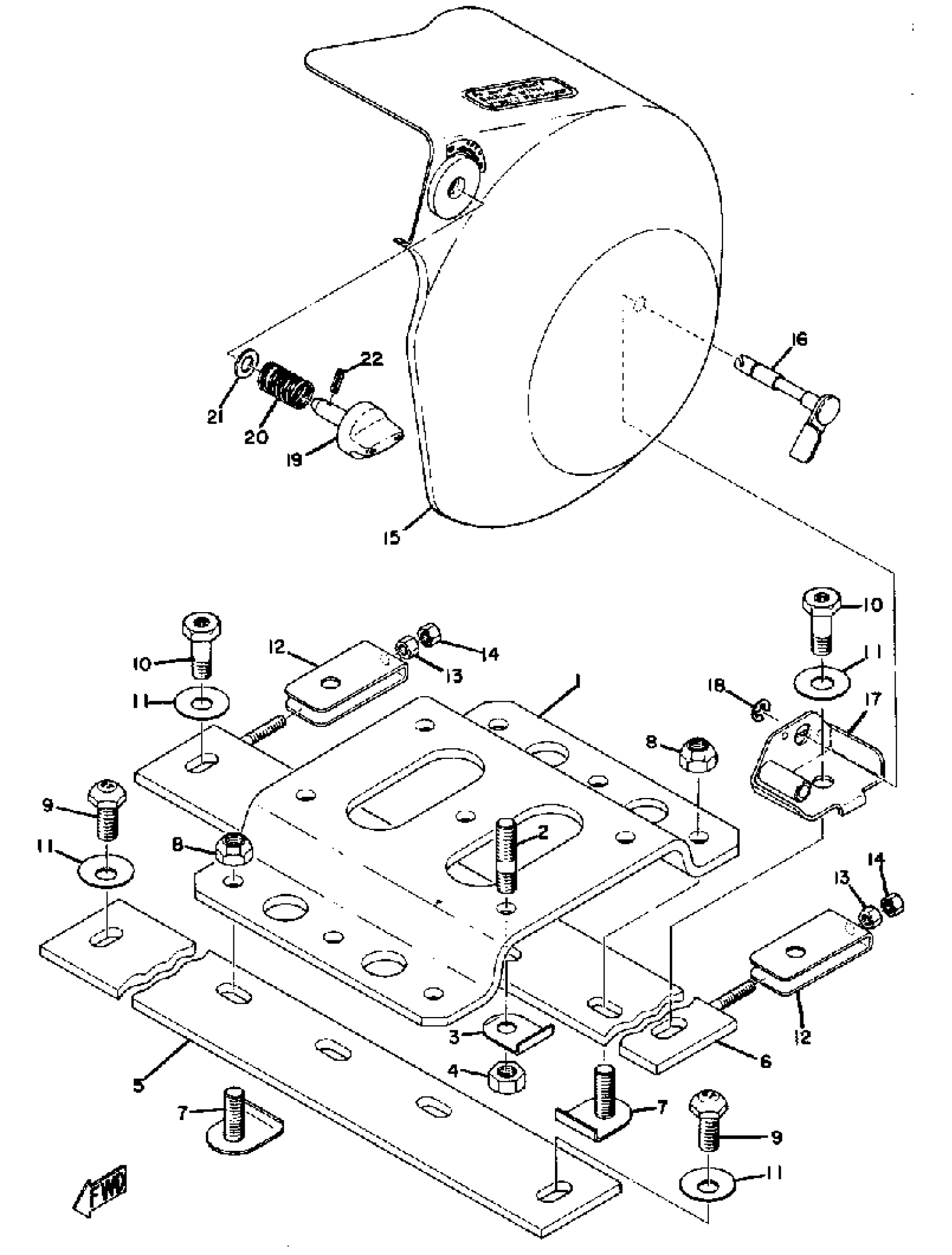

1973 Yamaha GP643B Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(834-21411-00-00)

1
Out of stock

2

BOLT, STUD

(90116-10084-00)

1
Out of stock

3

WASHER, LOCK

(90215-10076-00)

1
Out of stock

4

NUT(3BM)

95314-10600-00

1

$1.74

In stock

5

BRACKET, ENGINE 2

(835-21419-00-00)

1
Out of stock

6

BRACKET, ENGINE 3

(835-21429-00-00)

1
Out of stock

7

BOLT, ENG MNTNG 4

(834-21484-00-00)

1
Out of stock

8

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

9

BOLT, DOME HEAD

(90106-10015-00)

1
Out of stock

10

BOLT

(90101-10057-00)

1
Out of stock

11

WASHER, CONICAL SPR

90208-10013-00

1
Out of stock

12

PLATE, ENGINE ADJUSTING

(834-21475-00-00)

1
Out of stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

NUT(650)

95380-06700-00

1

$6.17

In stock

15

GUARD, DRIVE

(829-77311-00-00)

1
Out of stock

16

ARM, FITTING

(829-77314-00-00)

1
Out of stock

17

BRACKET 1

(829-77315-00-00)

1
Out of stock

18

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

19

KNOB

(829-77324-00-00)

1
Out of stock

20

SPRING 1

806-77325-00-00

1
Out of stock

21

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

22

PIN SPRING(664)

91690-40018-00

1

$3.23

In stock
