1973 Yamaha GP643B Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1973 Yamaha GP643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

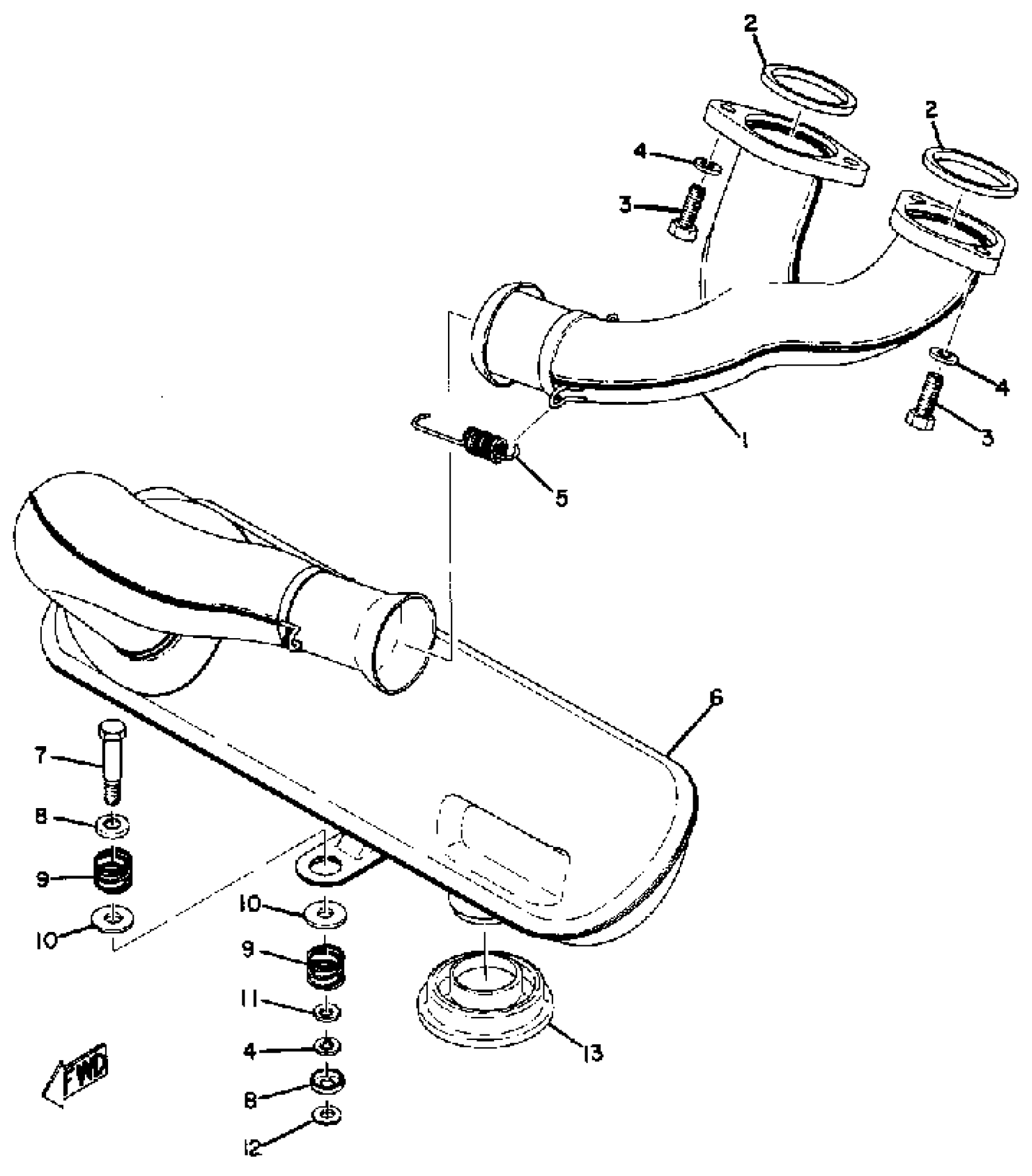

1973 Yamaha GP643B Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(847-14610-00-00)

1
Out of stock

2

GASKET, EXHAUST

834-14613-09-00

—

$12.89

In stock

3

BOLT (682)

97013-08025-00

1

$6.80

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

6

MUFFLER ASSEMBLY L

(847-14710-00-00)

1
Out of stock

7

BOLT

90109-08293-00

1
Out of stock

8

PLATE, MUFFLER

(812-14793-00-00)

1
Out of stock

9

SPRING, COMPRESSION

90501-18114-00

1
Out of stock

10

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

11

SPACER

(90560-08065-00)

1
Out of stock

12

WASHER, PLATE

(90201-07080-00)

1
Out of stock

13

PROTECTOR, MUFF 1

823-14718-00-00

1
Out of stock
← Engine Bracket FAN Case-AIR Shroud →
