1972 Yamaha GP433SS Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

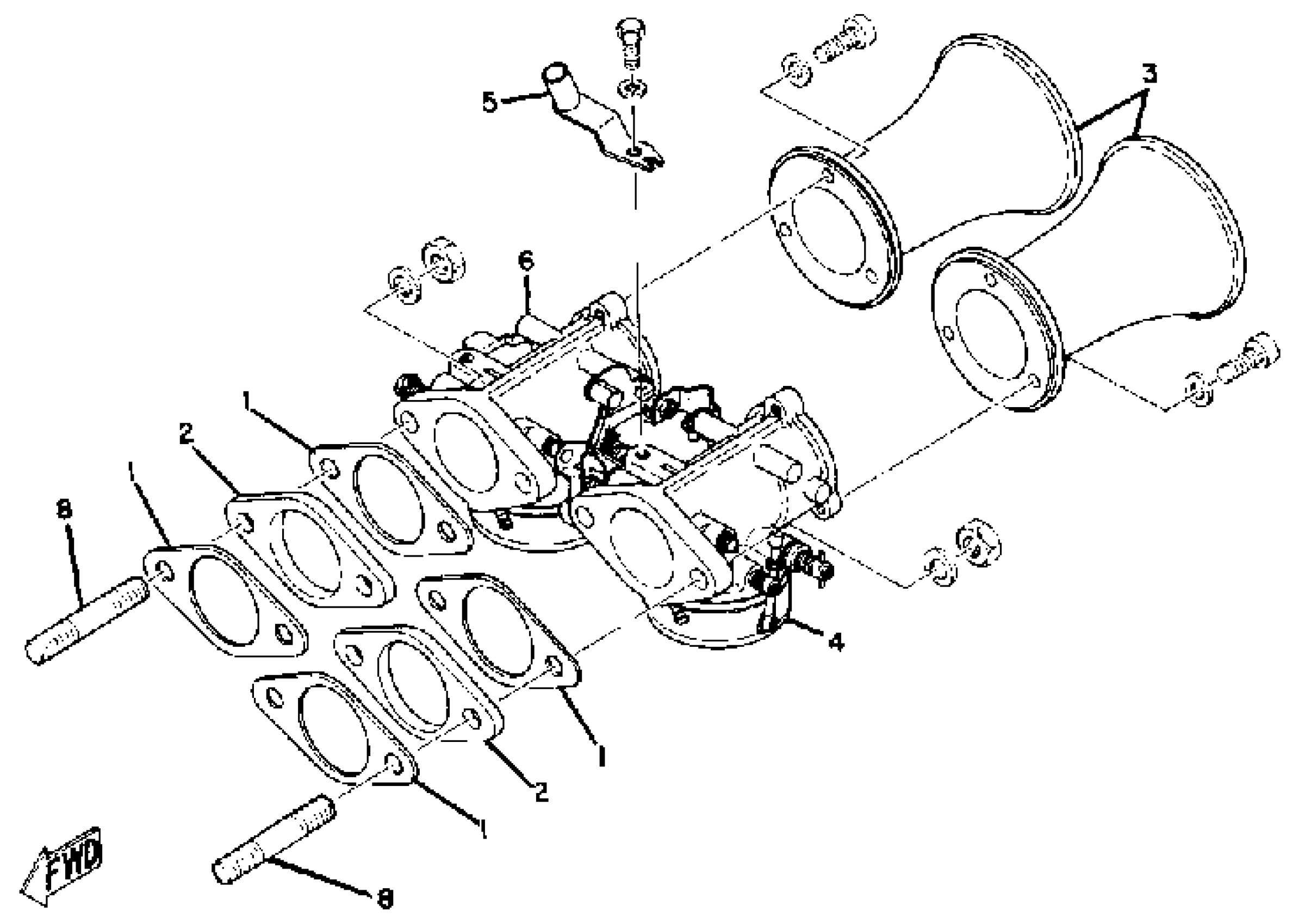

1972 Yamaha GP433SS Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

828-13556-70-00

1
Out of stock

2

JOINT

812-13555-70-00

1
Out of stock

3

FUNNEL

828-14479-70-00

1
Out of stock

4

CARBURETOR ASS''Y, LEFT

828-14501-70-00

1
Out of stock

5

. BRACKET, THROTTLE

823-14571-00-00

1
Out of stock

6

CARBURETOR ASS''Y, RIGHT

828-14502-70-00

1
Out of stock

7

. SCREW, MAIN ADJUSTING

824-14521-00-00

1
Out of stock

8

STUD (807-13558-00)

90116-08056-00

1
Out of stock
