1974 Yamaha GP433F Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1974 Yamaha GP433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

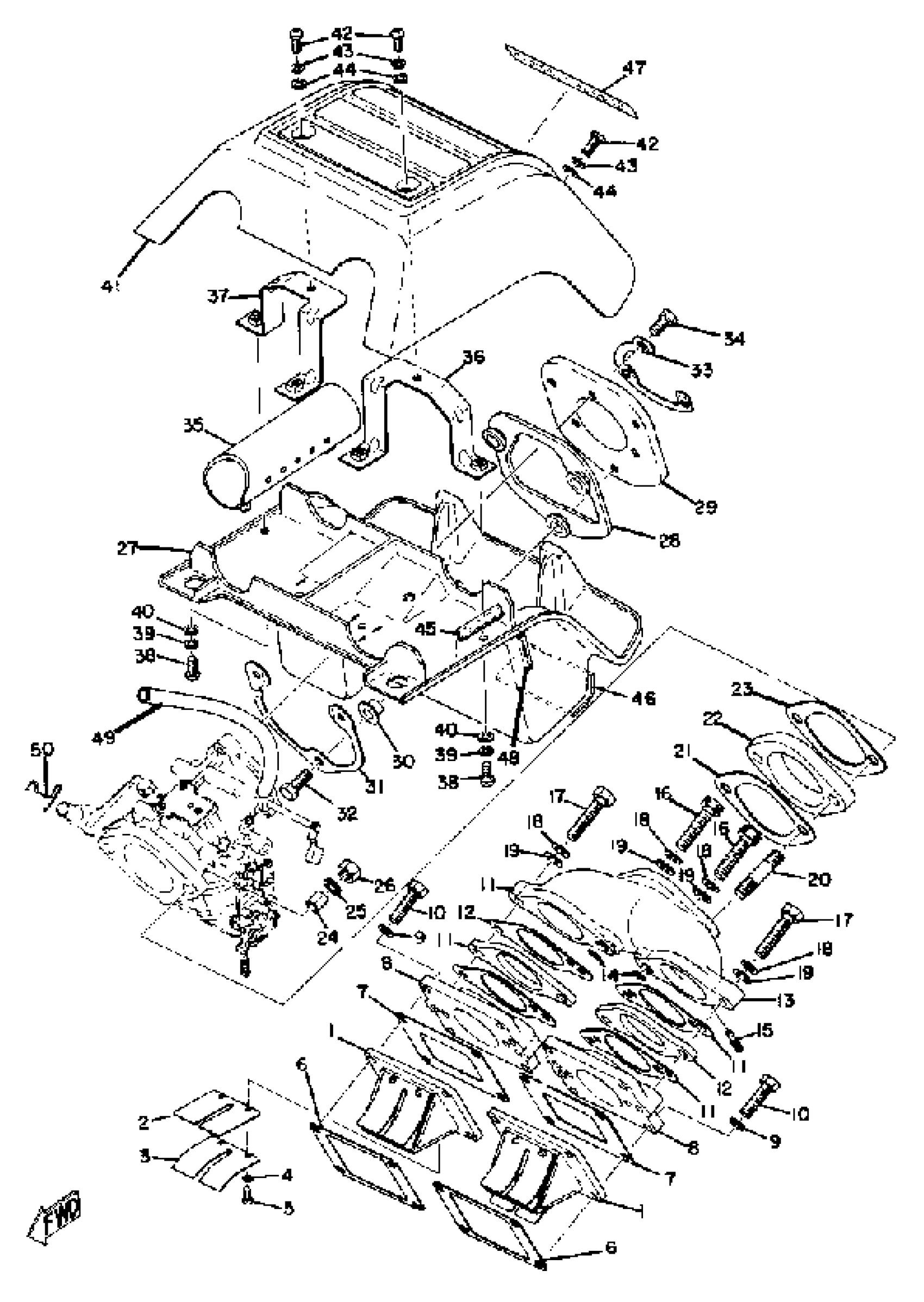

1974 Yamaha GP433F Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

10V-13610-01-00

1

$137.01

In stock

2

REED VALVE 1

10V-13613-01-00

1

$25.35

In stock

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

4

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

5

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

6

GASKET, VALVE SEAT

3TT-13621-00-00

1

$17.31

In stock

7

GASKET

866-13563-09-00

1
Out of stock

8

JOINT, CARBURETOR

(866-13585-00-00)

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

11

GASKET

866-13566-09-00

1
Out of stock

12

MANIFOLD, INTAKE

(866-13555-00-00)

1
Out of stock

13

JOINT, CARBURETOR

866-13565-00-00

1
Out of stock

14

O-RING (11M)

93210-07540-00

1

$5.77

In stock

15

NOZZLE

824-13552-00-00

1
Out of stock

16

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock

17

BOLT

97013-08035-00

—

$4.80

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

BOLT, STUD

(90116-08051-00)

1
Out of stock

21

GASKET, MANIFOLD

(834-13556-00-00)

1
Out of stock

22

JOINT, CARBURETOR

866-13595-00-00

1
Out of stock

23

GASKET

810-13566-09-00

1
Out of stock

24

SPACER

(810-13576-00-00)

1
Out of stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

. NUT

95380-08700-00

1

$3.07

In stock

27

SILENCER, INTAKE 1

(865-14431-01-00)

1
Out of stock

28

DAMPER

(865-14492-01-00)

1
Out of stock

29

PLATE

(866-14477-01-00)

1
Out of stock

30

COLLAR (838-84757-00)

90387-06024-00

—
Out of stock

31

WASHER

(866-14475-01-00)

1
Out of stock

32

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

33

WASHER

865-14475-01-00

1
Out of stock

34

BOLT (661)

97013-06012-00

—

$4.71

In stock

35

PIPE

(865-14419-00-00)

1
Out of stock

36

STAY 1

(865-14498-01-00)

1
Out of stock

37

STAY 1

(866-14498-01-00)

1
Out of stock

38

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

39

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

40

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

41

SILENCER, INTAKE 2

(865-14441-00-00)

1
Out of stock

42

SCREW, BINDING

98907-05012-00

—
Out of stock

43

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

44

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

45

DAMPER 1

(865-14425-00-00)

1
Out of stock

46

GUIDE, ELEMENT

865-14458-00-00

1
Out of stock

47

EMBLEM 1

(866-77351-00-00)

1
Out of stock

48

INDICATOR, CHOKE

(847-77455-00-00)

1
Out of stock

49

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

—

$8.80

In stock

50

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
