1971 Yamaha GP396 Tachometer Gear Diagram

← All diagrams

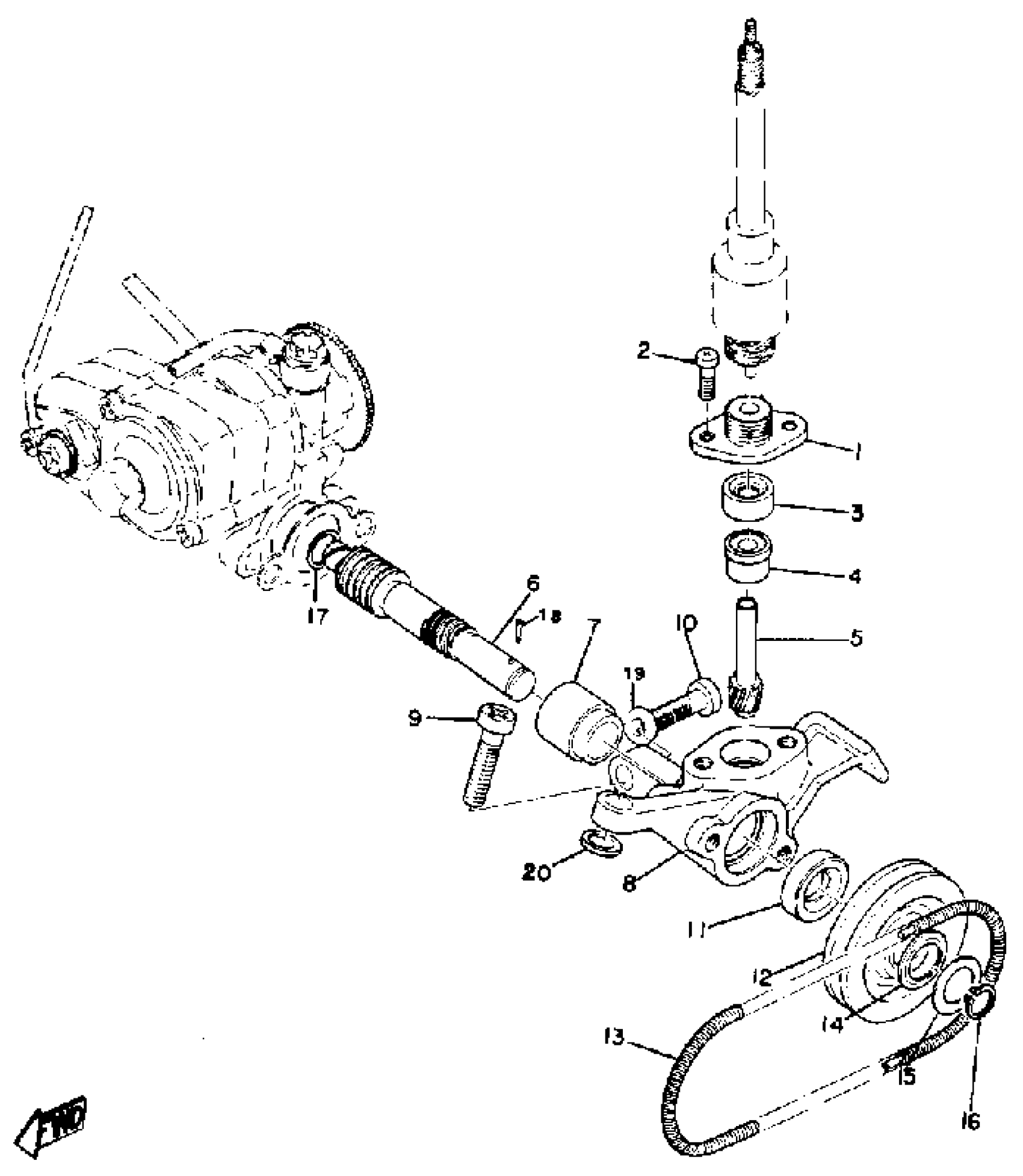

Find the part on the Tachometer Gear diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha GP396 Tachometer Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, HOUSING

(813-17819-00-00)

1
Out of stock

2

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

3

OIL SEAL, SO-TYPE

(93104-06035-00)

1
Out of stock

4

BUSH, DRVN GR OUTER

(813-17843-00-00)

1
Out of stock

5

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

6

SHAFT, WORM

813-13175-00-00

1
Out of stock

7

METAL, WRM SHAF OTR

(813-13176-00-00)

1
Out of stock

8

BRACKET, PUMP

(813-13199-00-00)

1
Out of stock

9

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

12

GEAR, PUMP DRIVE

(810-13178-00-00)

1
Out of stock

13

BELT (810-13189-00)

808-13189-00-00

1
Out of stock

14

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

15

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

16

CIRCLIP(10W)

99009-10400-00

—

$3.91

In stock

17

SHIM

(813-17837-00-03)

1
Out of stock

17

SHIM

(813-17837-00-05)

1
Out of stock

18

PIN,DOWEL (137)

93603-22028-00

—
Out of stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLATE (371)

90201-06431-00

—
Out of stock
