1971 Yamaha GP396 Speedometer AND Tachometer Diagram

← All diagrams

Find the part on the Speedometer AND Tachometer diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

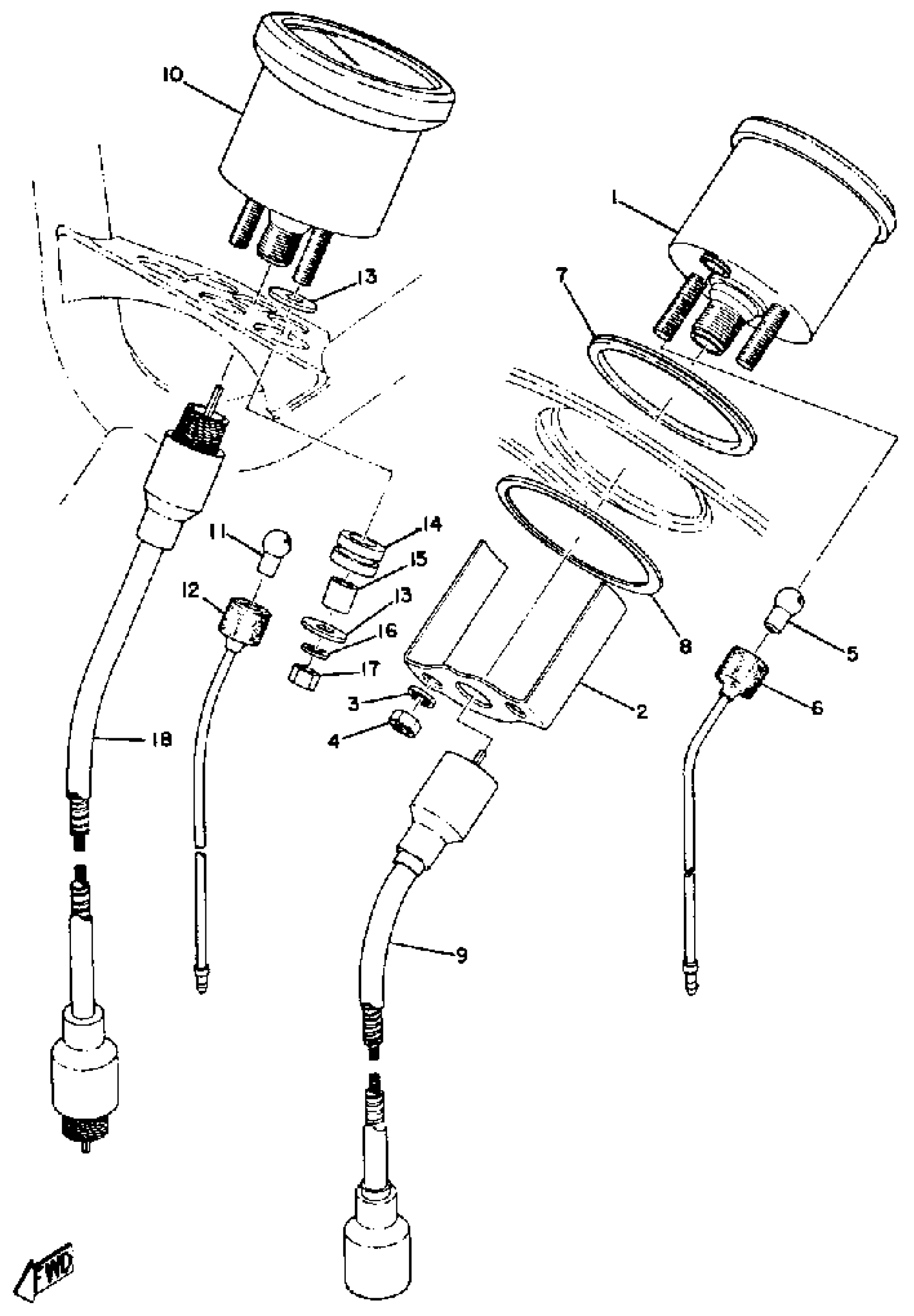

1971 Yamaha GP396 Speedometer AND Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(818-83510-40-00)

1
Out of stock

2

PLATE, FITTING

(102-83514-00-00)

1
Out of stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

BULB

256-84347-00-00

1
Out of stock

6

SOCKET, METER

(809-83536-40-00)

1
Out of stock

7

DAMPER

(809-83513-00-00)

1
Out of stock

8

PLATE, FITTING

(803-83577-00-00)

1
Out of stock

9

SPEEDOMETER CABLEASS''Y

813-83550-01-00

1
Out of stock

10

TACHOMETER ASSEMBLY

(813-83540-00-00)

1
Out of stock

11

BULB

256-84347-00-00

1
Out of stock

12

SOCKET, METER

(813-83536-00-00)

1
Out of stock

13

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

14

DAMPER

(803-83523-00-00)

1
Out of stock

15

COLLAR (3L6)

90387-06761-00

1

$6.88

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

17

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

18

TACHOMETER CABLE

(813-83560-00-00)

1
Out of stock
