1973 Yamaha GP338 Electrical Diagram

← All diagrams

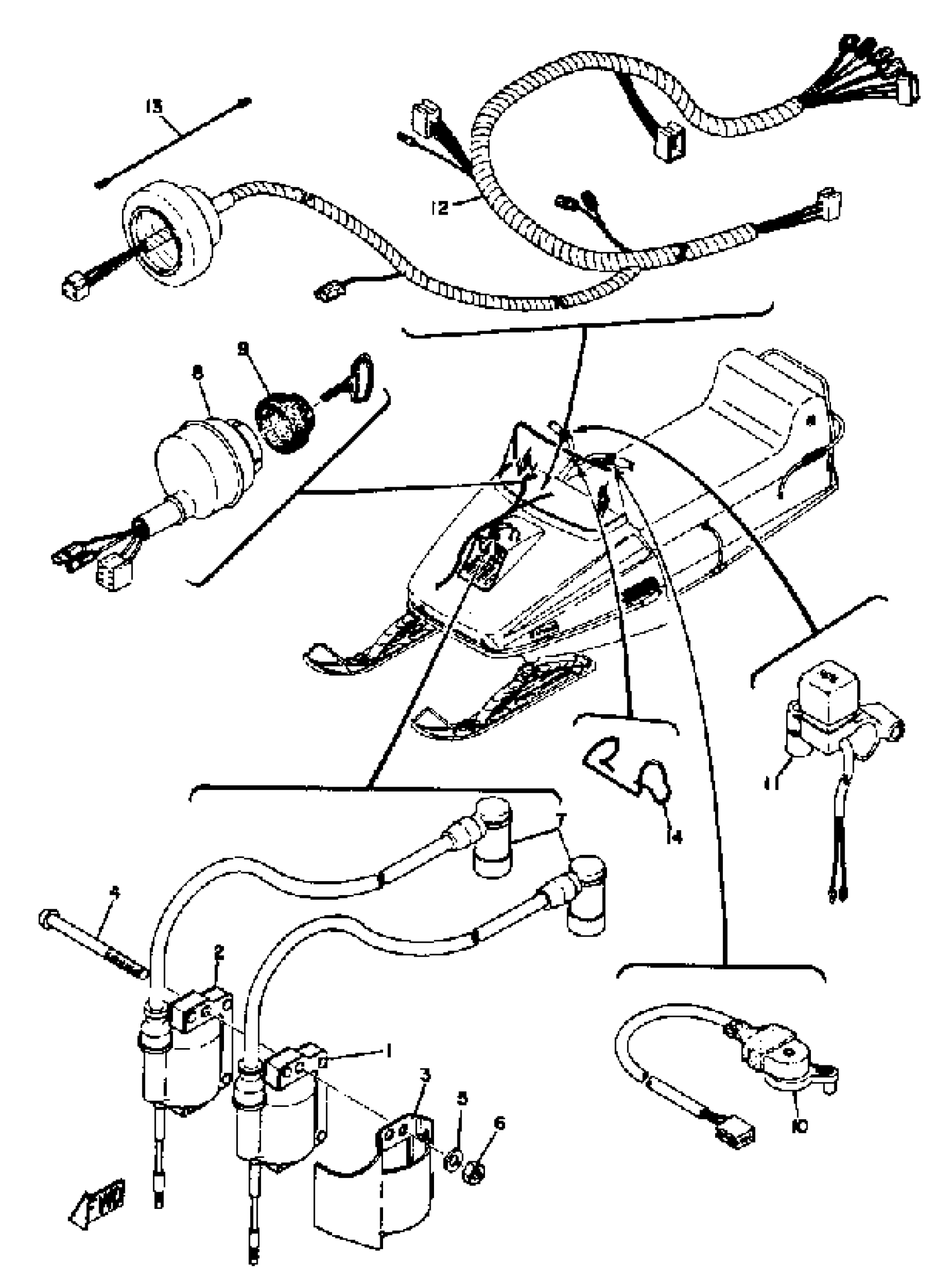

Find the part on the Electrical diagram for your 1973 Yamaha GP338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha GP338 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

838-82310-40-00

1
Out of stock

2

IGNITION COIL ASSEMBLY

(839-82310-40-00)

1
Out of stock

3

COVER, IGNITN COIL

(838-82314-00-00)

1
Out of stock

4

SCREW, PAN HEAD

98507-06070-00

1

$6.91

In stock

5

WASHER, SPRING

92907-06100-00

1
Out of stock

6

NUT(6TA)

95317-06600-00

1

$2.69

In stock

7

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

8

MAIN SWITCH ASSEMBLY

(838-82508-20-00)

1
Out of stock

9

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

10

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock

11

SWITCH, HANDLE 1

883-83976-00-00

1
Out of stock

12

WIRE HARNESS ASSEMBLY

(841-82590-21-00)

1
Out of stock

13

WIRE, EARTH LEAD

(838-82519-00-00)

1
Out of stock

14

CLAMP

(841-82594-00-00)

1
Out of stock
