1973 Yamaha GP338 Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1973 Yamaha GP338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

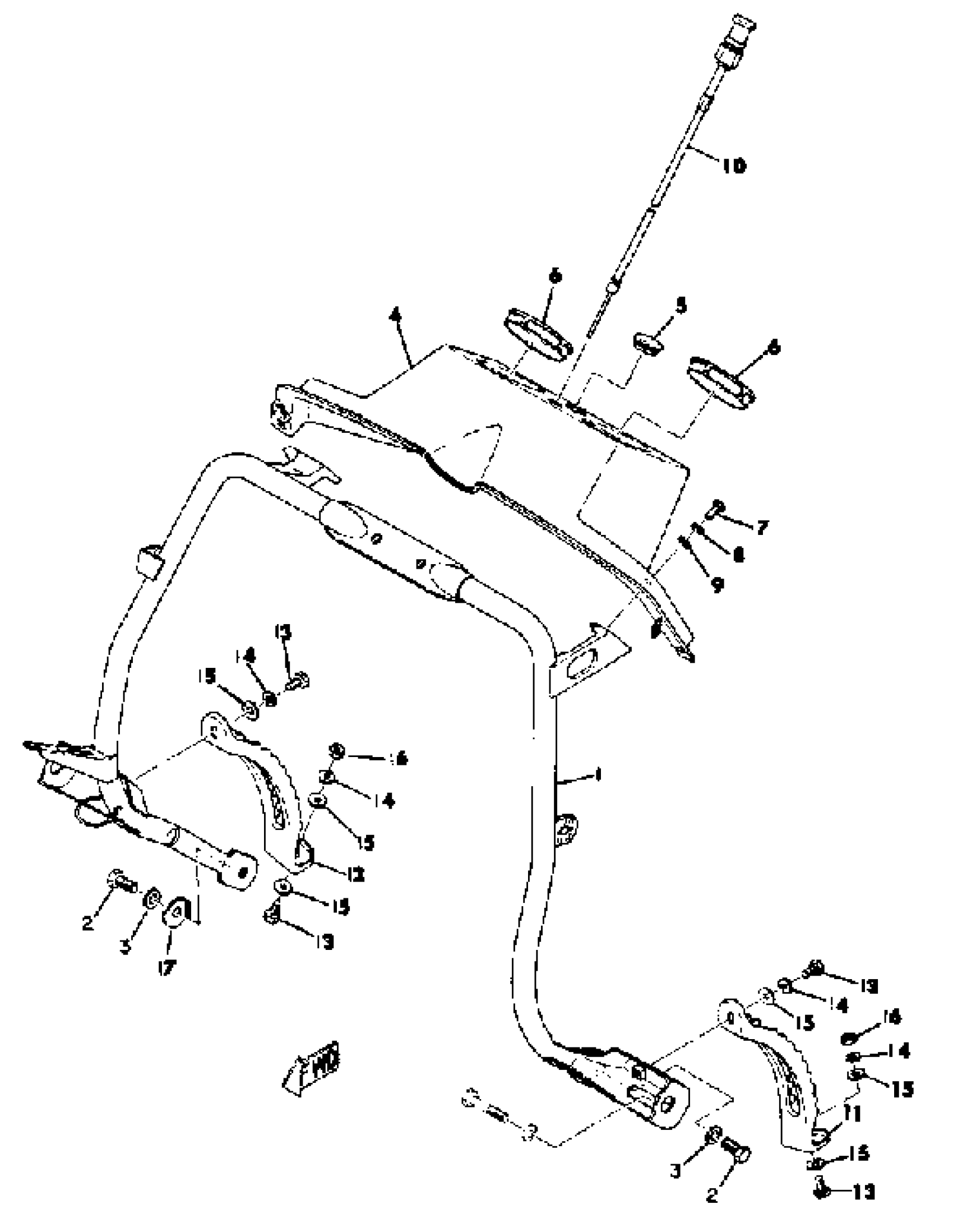

1973 Yamaha GP338 Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(841-23870-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

4

PANEL, INSTRUMENT

(844-77711-00-00)

1
Out of stock

5

GROMMET

(841-77746-00-00)

1
Out of stock

6

ORMNT, INSTR PNL 1

841-77715-00-00

1
Out of stock

7

BOLT, HEXAGON

(97306-05012-00)

1
Out of stock

8

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

9

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

10

CABLE, STARTER 1

841-26331-00-00

1
Out of stock

11

FOOTREST 1

(841-27411-00-00)

1
Out of stock

12

FOOTREST 2

(841-27421-00-00)

1
Out of stock

13

BOLT (661)

97013-06012-00

1

$4.71

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

WASHER, LOCK

(90215-08066-00)

1
Out of stock
