1976 Yamaha GP300 Grip Wiring Diagram

← All diagrams

Find the part on the Grip Wiring diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

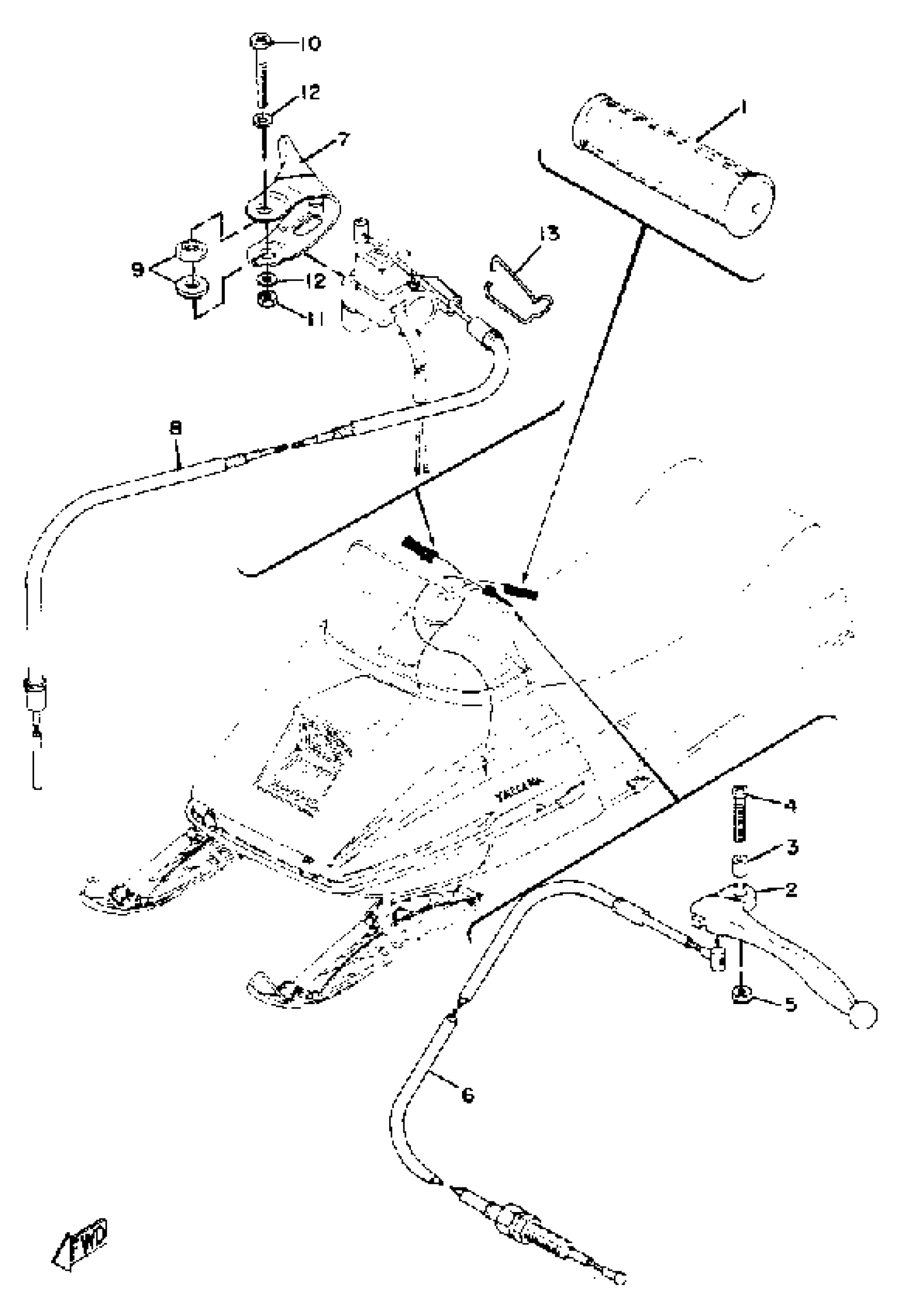

1976 Yamaha GP300 Grip Wiring Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

801-26241-02-00

1
Out of stock

2

LEVER L

803-83912-00-38

1
Out of stock

3

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

4

SCREW, LVR FITTING

(849-83915-00-00)

1
Out of stock

5

NUT, U

95617-05100-00

1

$6.68

In stock

6

CABLE, BRAKE

861-26340-02-00

1
Out of stock

7

LEVER, THROTTLE

8G8-42138-00-00

1
Out of stock

7

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

7

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

7

THROTTLE LEVER

99999-01028-00

1
Out of stock

8

CABLE THROTTLE 1

863-26311-03-00

1
Out of stock

9

C0LLAR

90387-062M9-00

1
Out of stock

10

SCREW, PAN HEAD (810-83925-00)

90157-06004-00

1
Out of stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

CLIP (821-26391-00)

90468-10017-00

1
Out of stock
