1972 Yamaha GP292 Brake GP-292 Diagram

← All diagrams

Find the part on the Brake GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

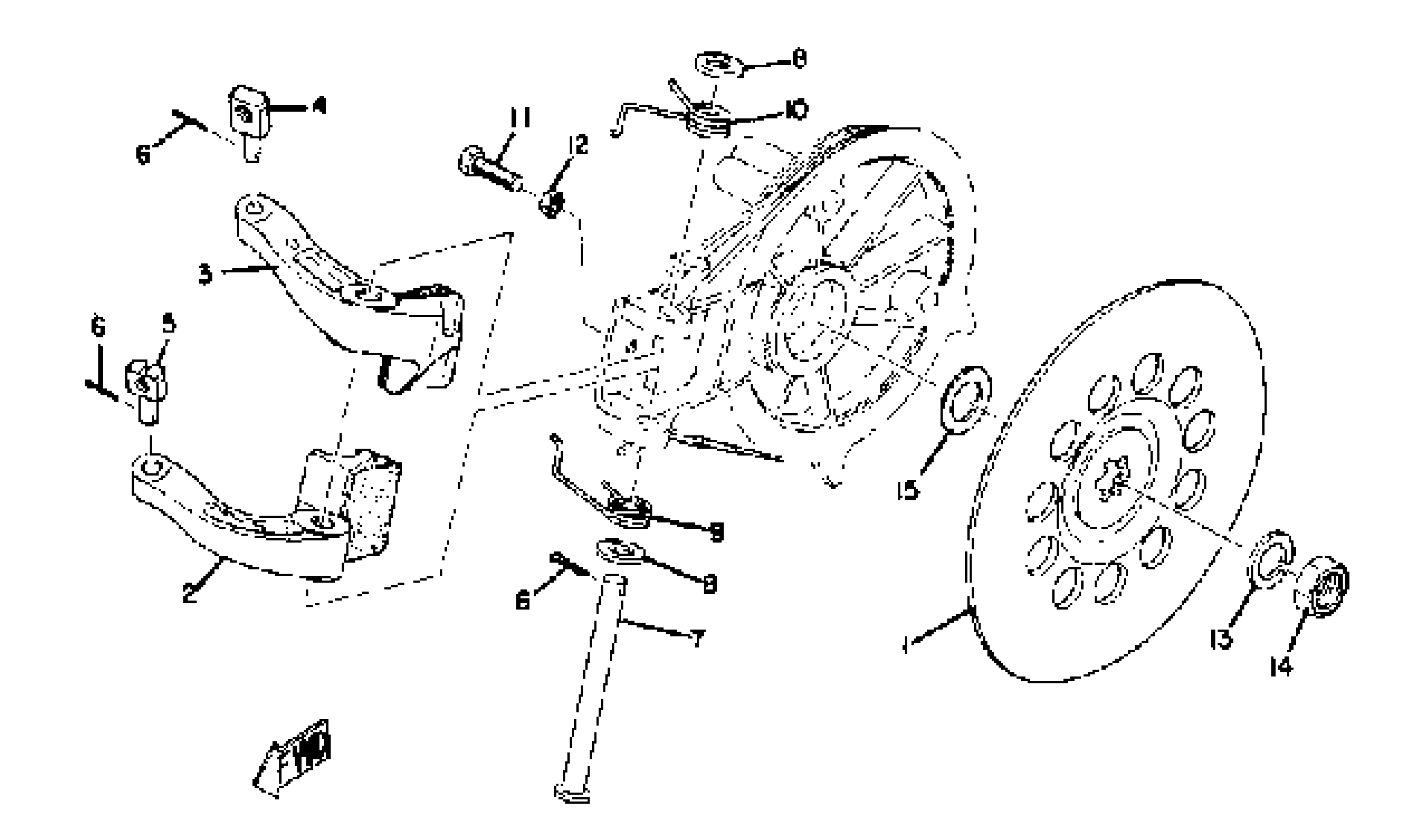

1972 Yamaha GP292 Brake GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

810-25711-00-00

1
Out of stock

2

CALIPER BODY 1

821-25730-00-00

1
Out of stock

3

CALIPER BODY 2

821-25740-00-00

1
Out of stock

4

PIN (810)

90249-06012-00

—

$9.91

In stock

5

PIN

90249-06009-00

1
Out of stock

6

PIN, COTTER

91490-20025-00

1

$1.31

In stock

7

PIN, CLEVIS

(90240-08022-00)

1
Out of stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

SPRING, RETURN 1

(810-25735-00-00)

1
Out of stock

10

NO LONGER AVAILABLE

810-25745-00-00

1
Out of stock

11

BOLT, HEXAGON

97013-05020-00

1

$2.68

In stock

12

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

13

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

14

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

15

SHIM 1

150-17417-00-02

1
Out of stock

15

SHIM 1

(150-17417-00-03)

1
Out of stock
