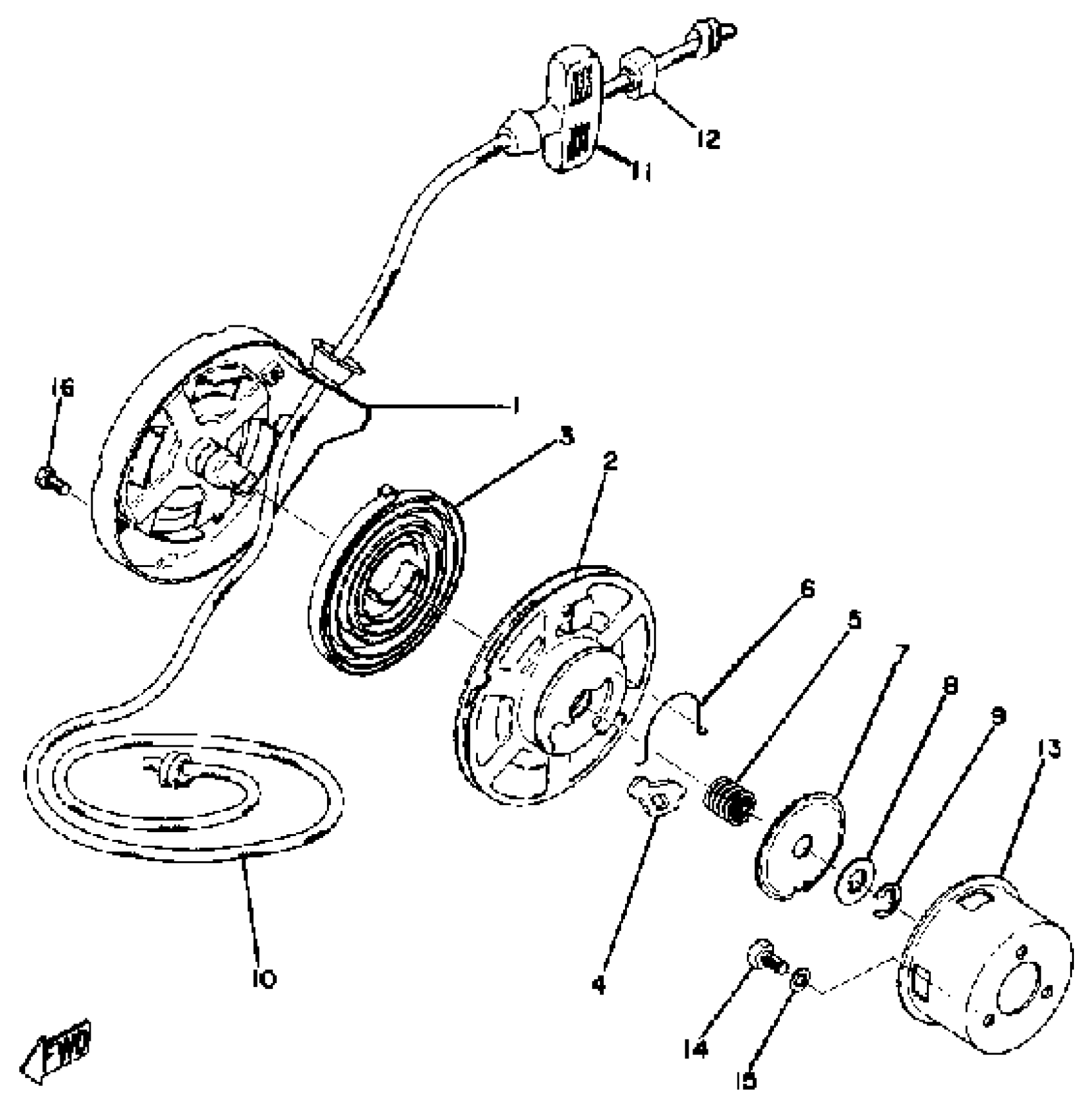

Find the part on the Starter diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP246F Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

(881-15710-00-00)

1
Out of stock

1

CASE, STARTER

(881-15711-00-00)

1
Out of stock

2

DRUM, SHEAVE

(881-15714-00-00)

1
Out of stock

3

SPRING, STARTER

(881-15713-00-00)

1
Out of stock

4

PAWL, DRIVE

(881-15741-00-00)

1
Out of stock

5

SPRING, DRIVE PLATE

(881-15715-00-00)

1
Out of stock

6

SPRING, RETURN

(881-15784-00-00)

1
Out of stock

7

. PLATE, DRIVE

881-15716-00-00

1
Out of stock

8

. WASHER, FLAT

881-15726-00-00

1
Out of stock

9

CIRCLIP, E-TYPE

(93430-12026-00)

1
Out of stock

10

. ROPE, STARTER

881-15751-00-00

1
Out of stock

11

. HANDLE, STARTER

807-15755-00-00

1
Out of stock

12

. CONNECTOR 1

619-15756-00-00

1
Out of stock

13

PULLEY, STARTER

(881-15723-00-00)

1
Out of stock

14

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

16

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock
