1974 Yamaha GP246F Flywheel Magneto Diagram

← All diagrams

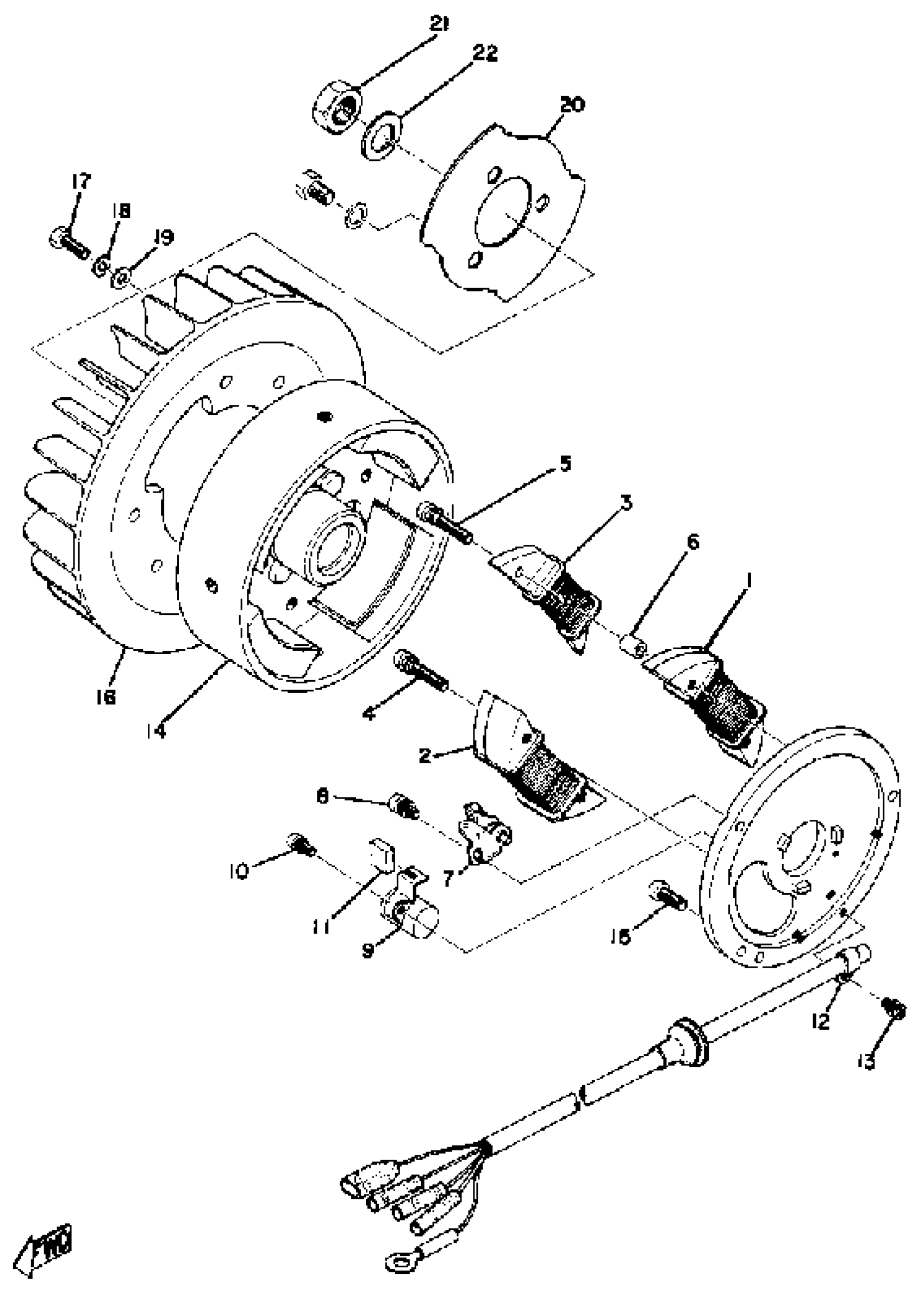

Find the part on the Flywheel Magneto diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP246F Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(881-81300-50-00)

1
Out of stock

1

. COIL, SOURCE

881-81312-50-00

1
Out of stock

2

COIL, CHARGE 1

(881-81341-50-00)

1
Out of stock

3

COIL, CHARGE 2

(881-81342-50-00)

1
Out of stock

4

SCREW, PAN HEAD

(881-81345-50-00)

1
Out of stock

5

SCREW, PAN HEAD

(881-81346-50-00)

1
Out of stock

6

COLLAR, COIL FTNG

(881-81343-50-00)

1
Out of stock

7

. CONTACT BRKR ASSEMBLY

881-81321-50-00

1
Out of stock

8

SCREW 1

(881-81323-50-00)

1
Out of stock

9

CONDENSER 1

(881-81325-50-00)

1
Out of stock

10

SCREW 2

(881-81324-50-00)

1
Out of stock

11

LUBRICATOR

(881-81331-50-00)

1
Out of stock

12

CLAMP

(881-81328-50-00)

1
Out of stock

13

SCREW, PAN HEAD

(881-81347-50-00)

1
Out of stock

14

ROTOR ASSEMBLY

(881-81350-50-00)

1
Out of stock

15

SCREW, PAN

98507-06014-00

—

$6.18

In stock

16

FAN

(8G5-12611-00-00)

1
Out of stock

17

BOLT

(90101-06004-00)

1
Out of stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLATE

90201-06M08-00

1
Out of stock

20

COVER, HOLE

(881-81362-00-00)

1
Out of stock

21

NUT

90170-16425-00

—
Out of stock

22

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
