1974 Yamaha GP246F Electrical Diagram

← All diagrams

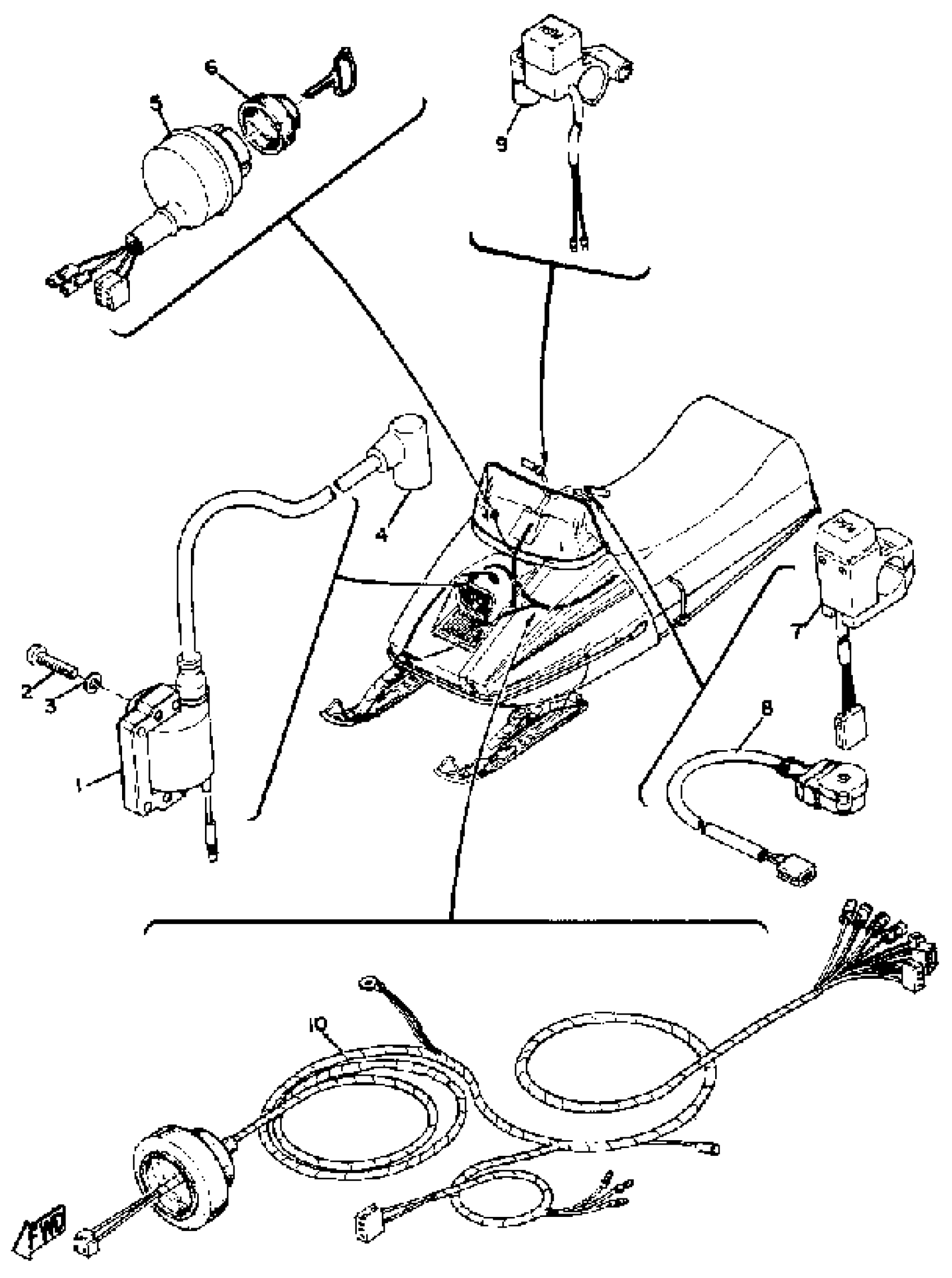

Find the part on the Electrical diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP246F Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

881-82310-50-00

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92907-06100-00

1
Out of stock

4

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

5

MAIN SWITCH ASSEMBLY

898-82508-20-00

1
Out of stock

6

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

7

BEAM SWITCH ASSEMBLY

861-83950-01-00

1
Out of stock

8

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock

9

SWITCH, HANDLE 1

(861-83976-02-00)

1
Out of stock

9

SWITCH, HANDLE 1

883-83976-00-00

1
Out of stock

10

WIRE HARNESS ASSEMBLY

(881-82590-20-00)

1
Out of stock
