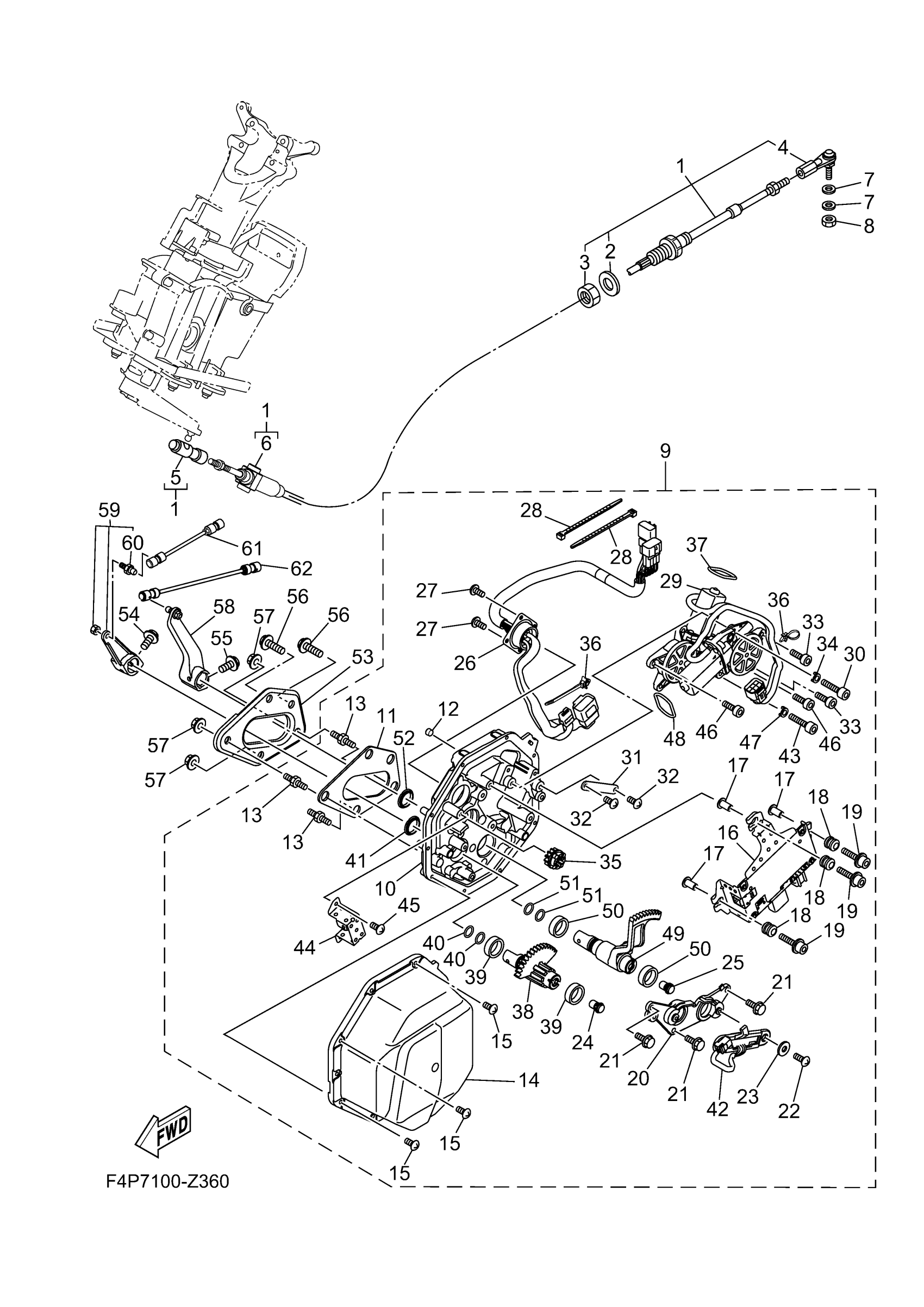

Yamaha GP1900BC (GP HO) F7L6 2026 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F1S-61481-12-00

$284.39

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$82.07

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.04

6

. NUT, LOCK

F1B-61425-00-00

$15.43

7

WASHER, PLATE

90201-06906-00

$3.09

8

NUT

9538R-06700-00

$1.07

9

MOTOR ASSY

F4P-6140B-10-00

$638.22

10

. HOUSING

F4P-6152K-00-00

$208.81

11

. SEAL

F4P-63262-00-00

$25.83

12

. PLUG

F3J-613D0-00-00

$11.75

13

. BOLT, STUD

F3J-67369-00-00

$6.18

14

. COVER

F3Y-6143J-00-00

$51.46

15

. SCREW

F3Y-68198-00-00

$3.53

16

. CONTROL UNIT

F4P-68197-01-00

$842.63

17

. COLLAR

90387-06119-00

$3.96

18

DAMPER, IGNITION C

6A0-82317-01-00

$6.05

19

. BOLT

F3J-613B4-20-00

$4.41

20

. PLATE

F4P-61256-00-00

$60.28

21

. BOLT, HEXAGON

F3Y-613B3-00-00

$4.41

22

. SCREW

F3J-68198-20-00

$3.53

23

. WASHER, PLAIN

F3J-613C3-10-00

$3.79

24

. MAGNET, SENSOR

F3J-60428-00-00

$19.37

25

. MAGNET, SENSOR

F3J-60428-00-00

$19.37

26

. WIRE HARNESS ASSY

F4P-68270-00-00

$226.46

27

. SCREW

F3J-68198-00-00

$3.03

28

. CLAMP, WIRE

F3J-68273-00-00

$3.09

29

. MOTOR

F4P-68352-00-00

$305.87

30

. BOLT

F3J-613B4-00-00

$4.41

31

. PLATE

F3Y-61348-00-00

$4.41

32

. SCREW

F3J-68198-20-00

$3.53

33

. BOLT

F3J-613B4-10-00

$2.19

34

. SPACER

F3J-61492-00-00

$7.06

35

. GEAR 1

F4P-60211-00-00

$113.22

36

. CLAMP

F4P-68273-00-00

$3.97

37

. O-RING

F4P-613A5-10-00

$4.41

38

SHAFT, 1

F3Y-60221-10-00

$20.51

39

. BUSH

F3Y-61344-00-00

$3.79

40

O-RING

F4P-613A5-00-00

$3.41

41

. BUSH

F4P-61344-00-00

$4.55

42

. SENSOR, ANGLE

F4P-85887-00-00

$163.22

43

. BOLT

F3J-613B4-00-00

$4.41

44

. PLATE

F4P-61348-00-00

$24.99

45

. SCREW

F3J-68198-20-00

$3.53

46

. BOLT

F3J-613B4-10-00

$2.19

47

. SPACER

F3J-61492-00-00

$7.06

48

. O-RING

F4P-613A5-10-00

$4.41

49

. SHAFT, 2

F4P-60222-10-00

$130.87

50

. BUSH

F3Y-61344-00-00

$3.79

51

O-RING

F4P-613A5-00-00

$3.41

52

. BUSH

F4P-61344-00-00

$4.55

53

PLATE

F4P-U8285-00-00

$13.96

54

BOLT, WITH WASHER

90119-06894-00

$1.43

55

BOLT, WITH WASHER

90119-068E7-00

$5.74

56

BOLT, WITH WASHER

90119-08852-00

$4.01

57

NUT, LOCK

F3Y-U142L-00-00

$2.66

58

TRIM ARM ASSY

F4P-6150E-10-00

$76.11

59

SHIFT ARM ASSY

F3Y-6150F-00-00

$50.15

60

. BOLT, JOINT

6R7-42316-00-00

$33.81

61

ROD ASSY

F3J-6150A-00-00

$42.93

62

ROD ASSY 2

F3J-6150D-00-00

$39.51
